Fan Type: EC Centrifugal Fan Backward Curved 230VAC
EC centrifugal fans with backward-curved blades are used primarily for intake suction. Since most of the pressure build-up takes place in the impeller, there is generally no need for a scroll housing. The centrifugal fans have very good hydraulic efficiency and are ideally suited for high pressures. The centrifugal fans are used in applications such as central air conditioning units or building ventilation systems.

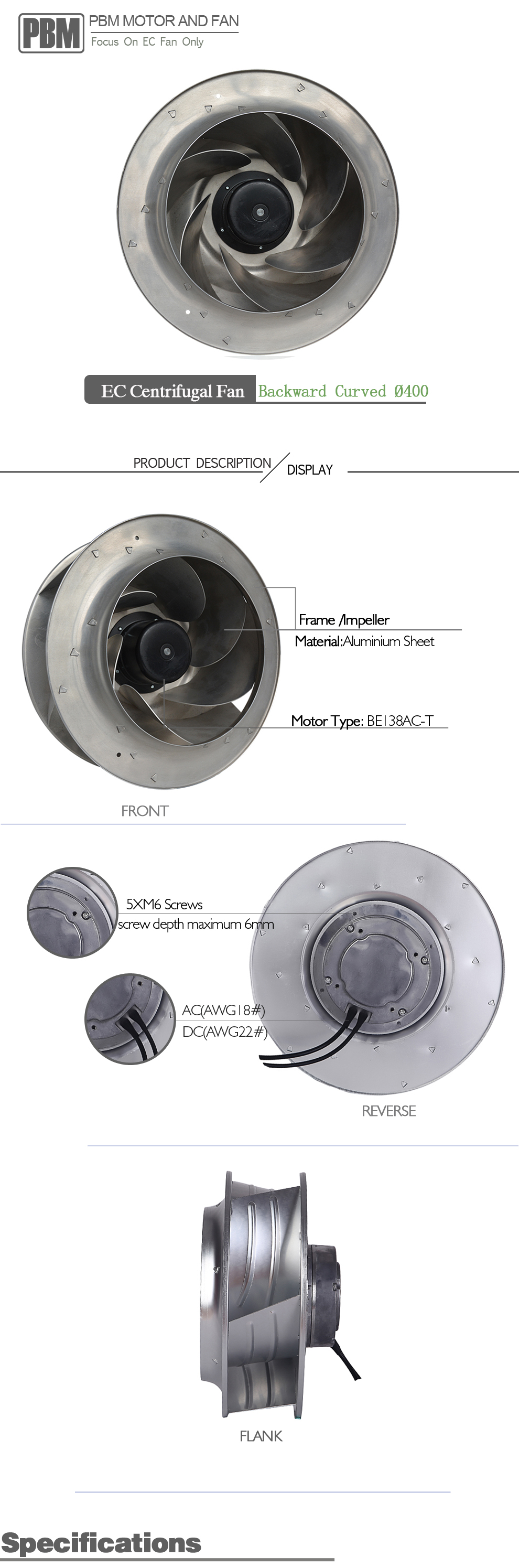

This model no. is PB3N400B2EH. It works with 230v AC voltage input. Diameter size is 400mm. Impeller height 113mm. Total height with motor base is 244mm. Impeller material is aluminium sheet.
Key words: ec centrifugal fan, backward curved centrifugal fan, centrifugal fan for ventilation
| Model || Motor Type || Bearing |
| Rated |
| Frequency || Rated |
| Rated Power || Rated |
| Air Flow || Air |
| Noise |
| Part NO. || Type || B / S || VAC || Hz || A || W || RPM || M⊃3;/H || Pa || dBA |
| PB3N400B2EH || BE138AC-T || BALL || 230 || 50/60 || 2.7 || 600 || 1720 || 4750 || 710 || 84 |
Q1: How about the delivery time?
A: Within 25 days after we receive the order.
Q2: What kind of payments do you support?
A: T/T.L/C, other kinds please contact with us.
Q3: What’s the MOQ?
A: Generally speaking, the MOQ is 100 pieces. Different products have different MOQ, Please contact with us.
A: All available shipping ways could be applied, by courier, air or sea. Appointed shipping company or our own forwarders all could be used in shipment. Fullway tracking the cargos for you before the goods arrive.
Q5: Global Market
A: Depending on advanced technology and knight service, we establish a good and diligent team and keep nice business relationship with a large amount of worthy clients in global market. We are prepared to provide the best DC Axial Fan to clients at competitive price. In addition to control of cost and quality, our stipulated lead-time, variety of designs, capability of product development and flexibility of service bring convenience and value added services to the clients.
Q6: Contact Us
A: We highly appreciate your any enquiry by email, fax or instant message. We will reply your email or fax within 12 hours. Please fell free to call us at any time if there is any questions.
PBM is a China Mainland consulting company and manufacturer specialized in EC Fans only since 2005
