Axial Fans, Technical Features Overview

Quieter, More Powerful and Longer Lifespan

PBM Axial fans adopt both metal welding and single-piece plastic with glass fiber reinforcement aerodynamic impeller, compact energy-saving smart EC motor drives it with maintenance free ball bearing to guarantee longer lifespan. The fans could be installed at all directions with variety of fan safety guard grill, wall ring and air-guiding wind deflector dome where the patten and causation of flow loss caused by the pressure distortion in rotor and stator were analyzed. Quieter sound level contributes at customer requested fan performance working point compare with competitors in their ventilation, heating, refrigeration product or system. AC and DC power supply are available for entire range of fans with integrated and intelligence EC technology motor with inside or outside mounted international standard remote control R485 communication protocol that’s suitable to be adopted in IoE(Internet of Everything), IoT(Internet of Things), smart home system, Industry 4.0 and committed to Carbon Neutrality climate change by reducing customers carbon footprints. PFC(Power Factor Correction), up to λ>96%, is optional for electricity grad stabilization compliance in certain circumstances of applications. ErP2015 (Energy-related Products) conformity, COMMISSION REGULATION (EU) No 327/2011 of 30 March 2011 implementing Directive 2009/125/EC of the European Parliament and of the Council with regard to eco-design requirements for fans driven by motors with an electric input power between 125 W and 500 kW.

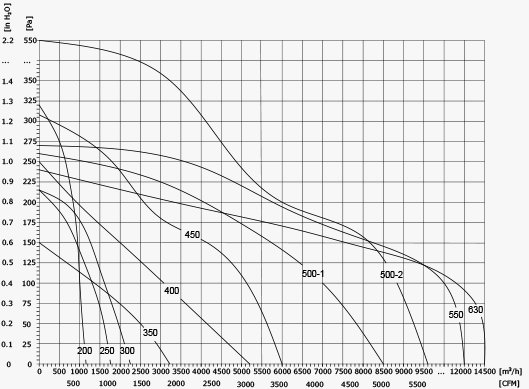

Axial Flow Fans Specification

Impeller Sizes: from 200mm to 630mm diameter;

Sound Level: from from 63dBA to maximum 78dBA according different rotation speed;

Airflow: maximum to 14,500CMH, Cubic Meter per Hour, equal to approx. 8,533CFM , Cubic Feet per Minute;

Air Pressure: Maxim to 270Pa, equal to 27.55mm H2O and to 1.08 inches H2O;

Power: Maximum motor input power goes to 950W (equal to 1.29hp, horsepower) at motor diameter 138mm.

DC Axial Fan D(180-450)

DC axial fan D(180-450)

EC Axial Fan D(200-630)

EC axial fan D(200-630)



The above axial flow fans technical specifications are subject to continuous update, please take the real product as the base. PBM Motor and Fan is a professional ec axial fans manufacturer and supplier in China, providing various ec axial flow fans and motors. Product details of axial flow fan, you can contact us for wholesale price and professional service!
