133mm EC-DC Single Inlet Blower PS3N133B24M 133mm EC-DC  Single Inlet Blower PS3N133B24M

PBM FOCUS ON EC FAN ONLY. Certificate: CE,UL,ROHS; Supply Ability: 100,000 pcs per year; MOQ: 1~100 pcs based on EXW price; 100 pcs above based on FOB price.

Share this:

Technical Description

General Characters

1-1

Rated Voltage

24 VDC

1-2

Operating Voltage

16~28 VDC

1-3

Rated Speed

2200 RPM

1-4

Input Current

2.5 A

1-5

Input Power

60 W

1-6

Air Flow

140.06 CFM / 238 M³/H

1-7

Static Pressure

2.10 inH2O / 525 Pa

1-8

Acoustical Noise

65 dB(A)

1-9

Life Expectance

50,000 Hours(L10)

At 40℃ room, humidity 15%~65%RH.

1-10

Insulation Class

Class B

1-11

Motor Protection

Locked rotor protection

Polarity protection

Automatic restart capability

1-13

Speed Control

Control input 0~10VDC / PWM

1-14

Protection Type

IP44

1-15

Signal Output

FG (Frequency Generator)



Mechanical Characters

2-1

Dimension

172 mm X 181 mmX 95 mm (see dimension drawing)

2-2

Material of Impeller

Galvanized Metal Shell

2-3

Number of Blades

38

2-4

Bearing System

NMB ball bearing

2-5

Lead Wire

DC (AWG20 #)



Environmental Characters

3-1

Operating Temperature

-25℃ to 60℃

3-2

Storage Temperature

-40℃ to 75℃

3-3

Operating Humidity

5% to 90% RH

3-4

Storage Humidity

5% to 95% RH





Curve and Draw

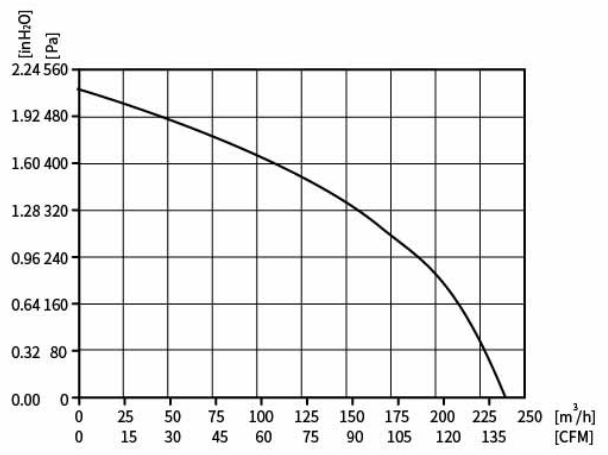

Performance Curve





Testing Condition:

Input Voltage----Operating voltage (24VDC)

Temperature-----Room temperature

Humidity---------65%RH



Outline Drawing



Note:

1.Connection line:DC(4×AWG20#)

2.DC: Red=Voltage Intput 24VDC, Yellow=0-10VDC/PWM, White=FG, Blue=GND;
