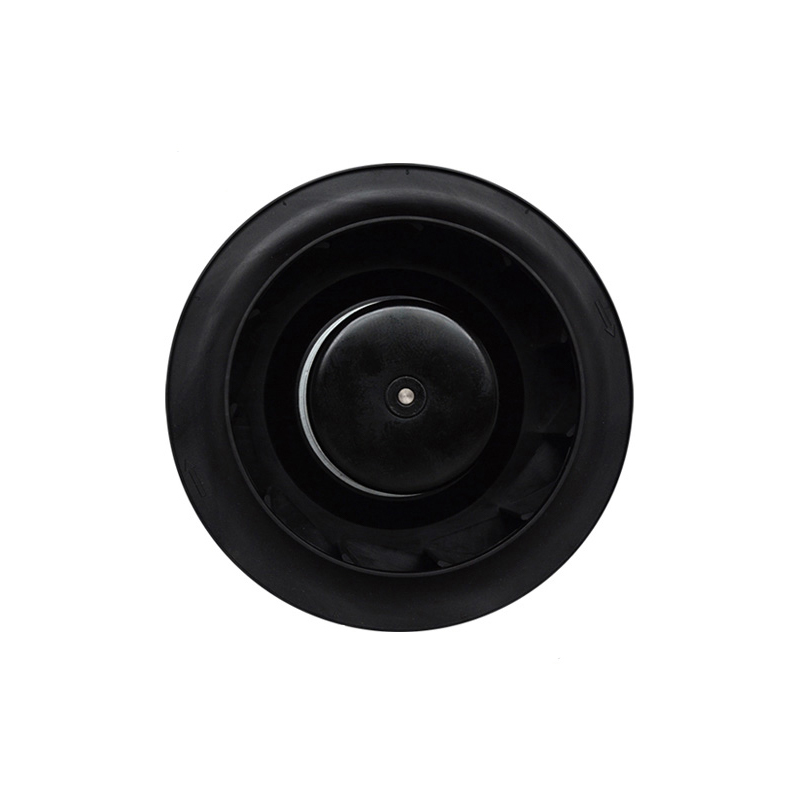

225mm EC-AC Backward Curved Centrifugal Fan with PB3N225B2EH 225mm EC-AC Backward Curved Centrifugal Fan with PB3N225B2EH

PBM FOCUS ON EC FAN ONLY. Certificate: CE,UL,ROHS; Supply Ability: 100,000 pcs per year; MOQ: 1~100 pcs based on EXW price; 100 pcs above based on FOB price.

Share this:

Technical Description

General Characters

1-1

Rated Voltage

230 VAC

1-2

Frequency

50/60 Hz

1-3

Operating Voltage

184~270 VAC

1-4

Rated Speed

3020 RPM

1-5

Input Current

1.04 A

1-6

Input Power

135 W

1-7

Air Flow

788.59 CFM / 1340 M³/H

1-8

Static Pressure

2.82 inH2O / 705 Pa

1-9

Acoustical Noise

71 dB(A)

1-10

Life Expectance

50,000 Hours(L10)

At 40℃ room, humidity 15%~65%RH.

1-11

Insulation Class

Class B

1-13

Motor Protection

Locked rotor protection

Polarity protection

Automatic restart capability

1-14

Speed Control

Control input 0~10VDC / PWM

1-15

Protection Type

IP44

1-17

Signal Output

FG (Frequency Generator)



Mechanical Characters

2-1

Dimension

Ø220mm X 93mm (see dimension drawing)

2-2

Material of Impeller

PA6+GF

2-3

Number of Blades

7

2-4

Bearing System

NMB ball bearing

2-5

Lead Wire

AC (AWG20#),DC (AWG22 #)



Environmental Characters

3-1

Operating Temperature

-25℃ to 60℃

3-2

Storage Temperature

-40℃ to 75℃

3-3

Operating Humidity

5% to 90% RH

3-4

Storage Humidity

5% to 95% RH





Curve and Draw

Performance Curve





Testing Condition:

Input Voltage----Operating voltage (230VAC/50Hz)

Temperature-----Room temperature

Humidity---------65%RH

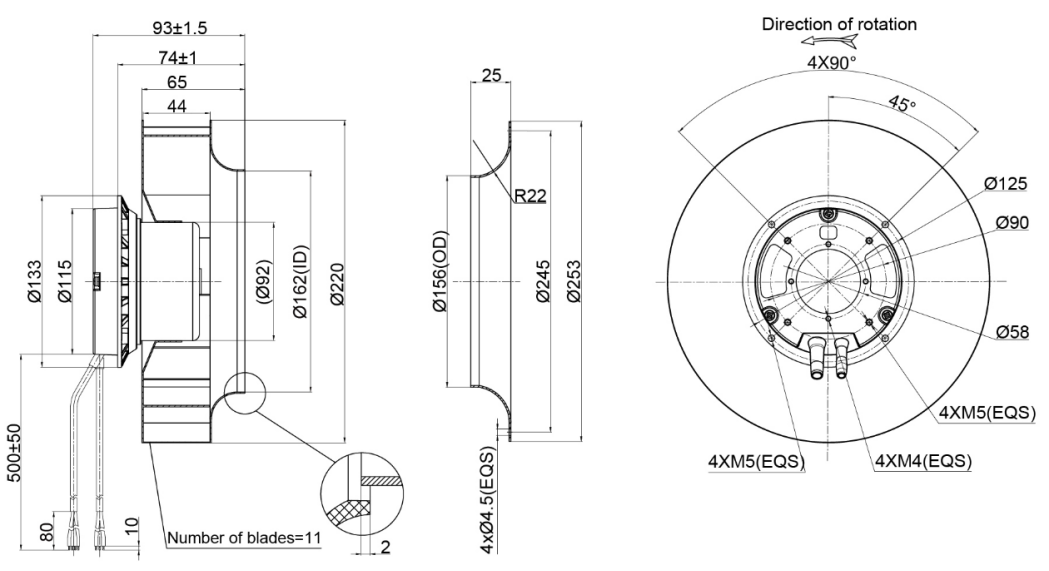

Outline Drawing



Note:

1.Connection line: AC(3×AWG20#),DC(4×AWG22#)

2.AC: Brown=Live Line,Blue=Null Line,Green & Yellow=Protecting Earthing;

3.DC: Red=Voltage Output +10VDC, Yellow=0-10VDC/PWM, White=FG, Blue=GND;
