Φ30x198mm AC Cross Flow Fan PC30B1A198B Φ30x198mm AC Cross Flow Fan PC30B1A198B

PBM FOCUS ON EC FAN ONLY. Certificate: CE,UL,ROHS; Supply Ability: 100,000 pcs per year; MOQ: 1~100 pcs based on EXW price; 100 pcs above based on FOB price.

Share this:

Technical Description

Cross Flow Design - Unlike traditional axial fans that move air in one direction (along the axis), cross-flow fans generate a wide, uniform airflow across the entire length of the impeller.PBM corss flow fans are commonly used in various electronic devices, equipment, and appliances.such as in cooling systems for electronic components like power supplies, amplifiers, and other devices.They are also used in appliances like ovens, refrigerators, and air purifiers.Cross Flow Design - Unlike traditional axial fans that move air in one direction (along the axis), cross-flow fans generate a wide, uniform airflow across the entire length of the impeller.PBM corss flow fans are commonly used in various electronic devices, equipment, and appliances. such as in cooling systems for electronic components like power supplies, amplifiers, and other devices.They are also used in appliances like ovens, refrigerators, and air purifiers.

General Characters

1-1

Rated Voltage

115 VAC

1-2

Frequency

50/60 Hz

1-3

Rated Speed

3100 RPM

1-4

Input Current

0.25 A

1-5

Input Power

15.8 W

1-6

Acoustical Noise

32 dBA

1-7

Life Expectance

30,000 Hours

At nominal supply voltage, full speed room temperature 20℃.

1-8

Direction of Rotation

Clockwise

seen on rotor

1-9

Air Flow

35.31 CFM / 60 m³/H

1-10

Air Pressure

1.33 mmH2O / 13 Pa



Mechanical Characters

2-1

Dimension

72mm X 48mm X 258mm(see dimension drawing)

2-2

Material of Impeller

Aluminum alloy

2-3

Number of Blades

28

2-4

Bearing System

NMB ball bearing

2-5

Lead Wire

Red, Black, AWG#20



Environmental Characters

3-1

Operating Temperature

-20℃ to 70℃

3-2

Storage Temperature

-40℃ to 80℃

3-3

Operating Humidity

5% to 90% RH

3-4

Storage Humidity

5% to 95% RH





Curve and Draw

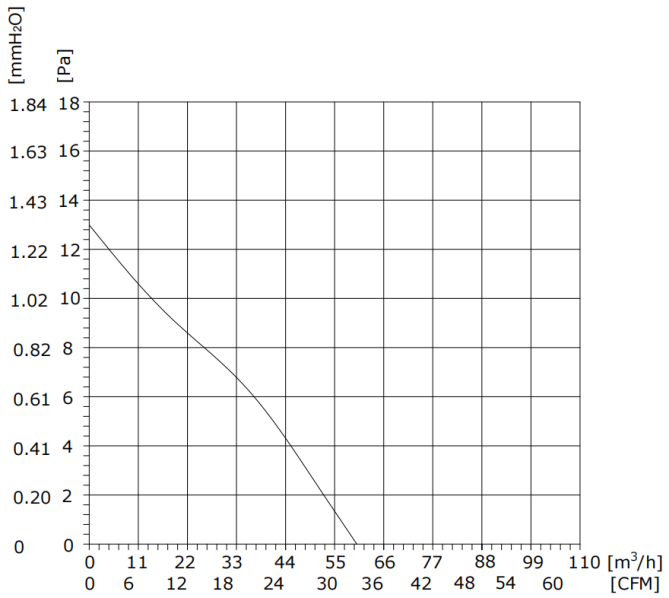

Performance Curve





Testing Condition:

Input Voltage----Operating voltage (230VAC/50Hz)

Temperature-----Room temperature

Humidity---------65%RH

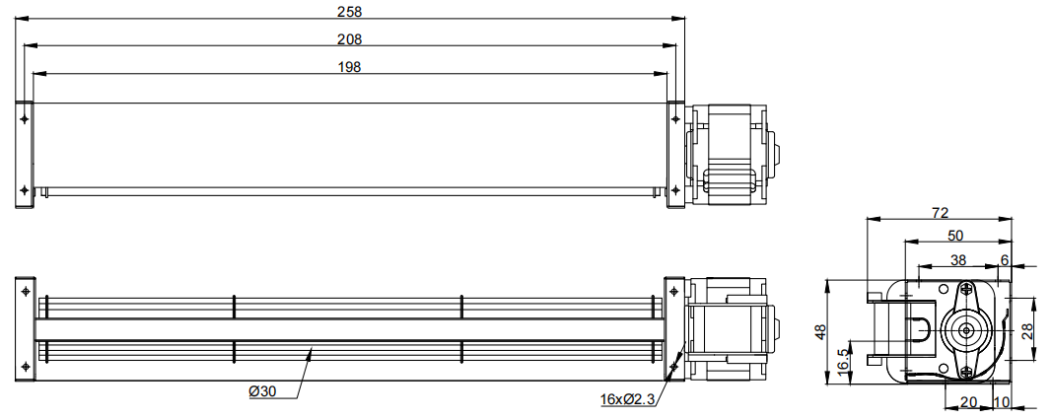

Outline Drawing



Note:

1.Connection line: Red, Black, AWG#20;

2.Red=Live Line, Black=Null line.
