Φ40x198mm DC Cross Flow Fan PC40B24198C Φ40x198mm DC Cross Flow Fan PC40B24198C

PBM FOCUS ON EC FAN ONLY. Certificate: CE,UL,ROHS; Supply Ability: 100,000 pcs per year; MOQ: 1~100 pcs based on EXW price; 100 pcs above based on FOB price.

Share this:

Technical Description

General Characters

1-1

Rated Voltage

24 VDC

1-2

Operating Voltage

16~28 VAC

1-3

Rated Speed

2600 RPM

1-4

Input Current

0.1 A

1-5

Input Power

2.4 W

1-6

   Air Flow

54.14 CFM / 92 m3/H

1-7

Static Pressure

2.55 mmH2O / 25 Pa

1-8

Acoustical Noise

34 dB(A)

1-9

Life Expectance

50,000 Hours(L10)

At 40℃ room, humidity 15%~65%RH.

1-10

Insulation Class

Class B

1-11

Motor Protection

Locked rotor protection

Polarity protection

Automatic restart capability

1-12

Speed Control

Control input 0~10VDC / PWM

1-13

Protection Type

IP44

1-14

Signal Output

FG (Frequency Generator)



Mechanical Characters

2-1

Dimension

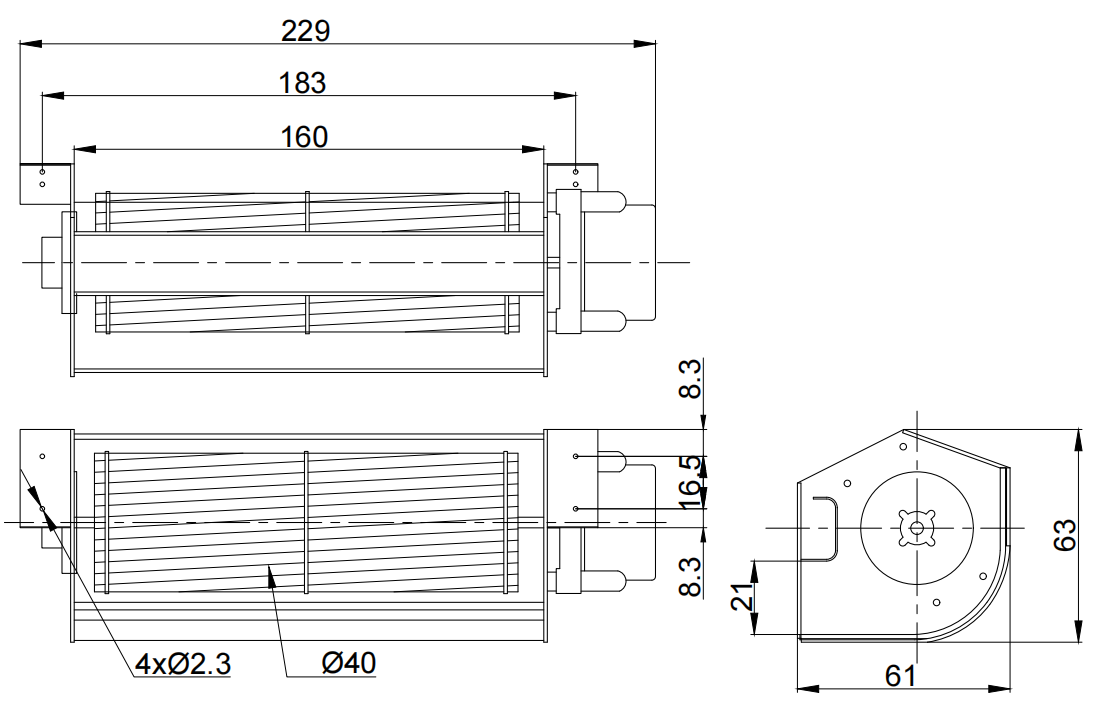

61mm X 63mm X 267mm (see dimension drawing)

2-2

Material of Impeller

Aluminum alloy

2-3

Number of Blades

22

2-4

Bearing System

NMB ball bearing

2-5

Lead Wire

Red , Black, White AWG22#



Environmental Characters

3-1

Operating Temperature

-25℃ to 60℃

3-2

Storage Temperature

-40℃ to 75℃

3-3

Operating Humidity

5% to 90% RH

3-4

Storage Humidity

5% to 95% RH





Curve and Draw

Performance Curve

Input Voltage----Operating voltage (24 VDC)

Temperature-----Room temperature

Humidity---------65%RH

Test distance-----1m



Note:

1. Connection line 3X (Red, Black, White AWG22#);

Red=+24VDC, White=0-10VDC, Blue=GND.
