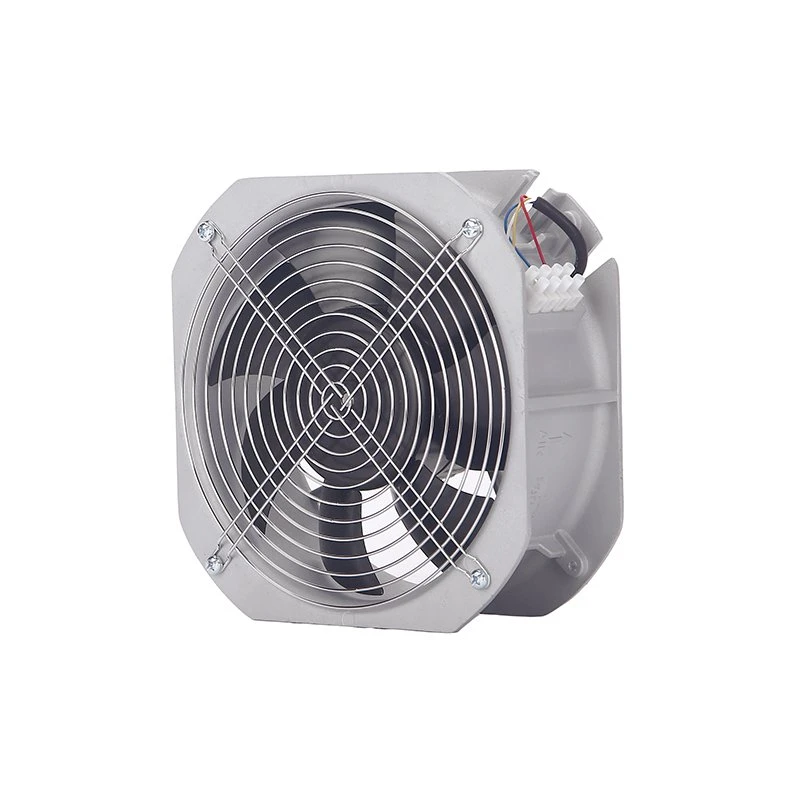

PBM Motor and Fan (Suzhou) Co., Ltd. is one of the most reliable manufacturers and suppliers of 200mm ec-ac axial fan pa3n200b2eh in China. With abundant experience, we are committed to providing high quality customized products with competitive price. If you're going to buy bulk premium 200mm ec-ac axial fan pa3n200b2eh, welcome to get pricelist from our factory.

The fan's seven blades provide steady airflow, which reduces flow losses as compared to ordinary models and improves noise management. With a calculated energy consumption reduction of more than 10%, EC axial fans are intrinsically more efficient than conventional AC cooling fans. A common size for cabinet fans is 200mm, which is appropriate for uses like electronic equipment cabinet exhaust fans and cabinet cooling fans. As a direct manufacturer, we can offer tailored solutions depending on industry demands; size, voltage, airflow, noise levels, and materials may all be changed in accordance with project specifications.

General Characters

1-1	Rated Voltage	230 VAC
1-2	Frequency	50/60 Hz
1-3	Operating Voltage	184~270 VAC
1-4	Rated Speed	3200 RPM
1-5	Input Current	0.6 A
1-6	Input Power	70 W
1-7	Air Flow	682.66 CFM / 1160 M³/H

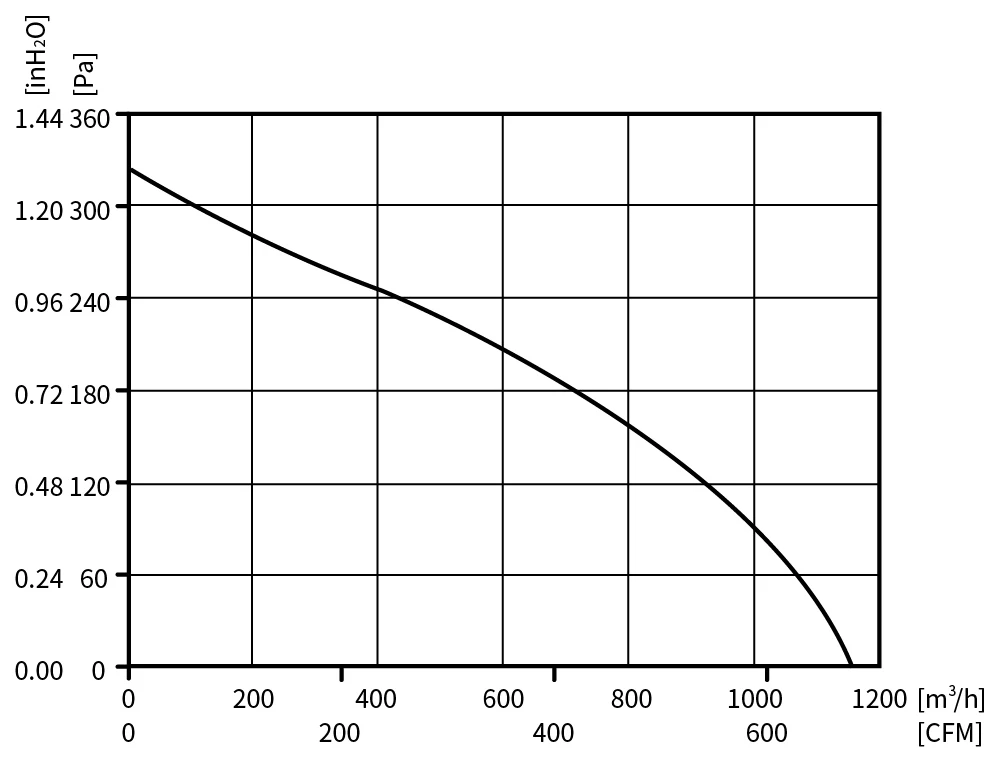

1-8	Static Pressure	1.28 inH2O / 320 Pa
1-9	Acoustical Noise	68 dB(A)
1-10	Life Expectance	50,000 Hours(L10) At 40℃ room, humidity 15%~65%RH.
1-11	Insulation Class	Class B
1-13	Motor Protection	Locked rotor protection Polarity protection Automatic restart capability
1-14	Speed Control	Control input 0~10VDC / PWM
1-15	Protection Type	IP44
1-17	Signal Output	FG (Frequency Generator)

Mechanical Characters

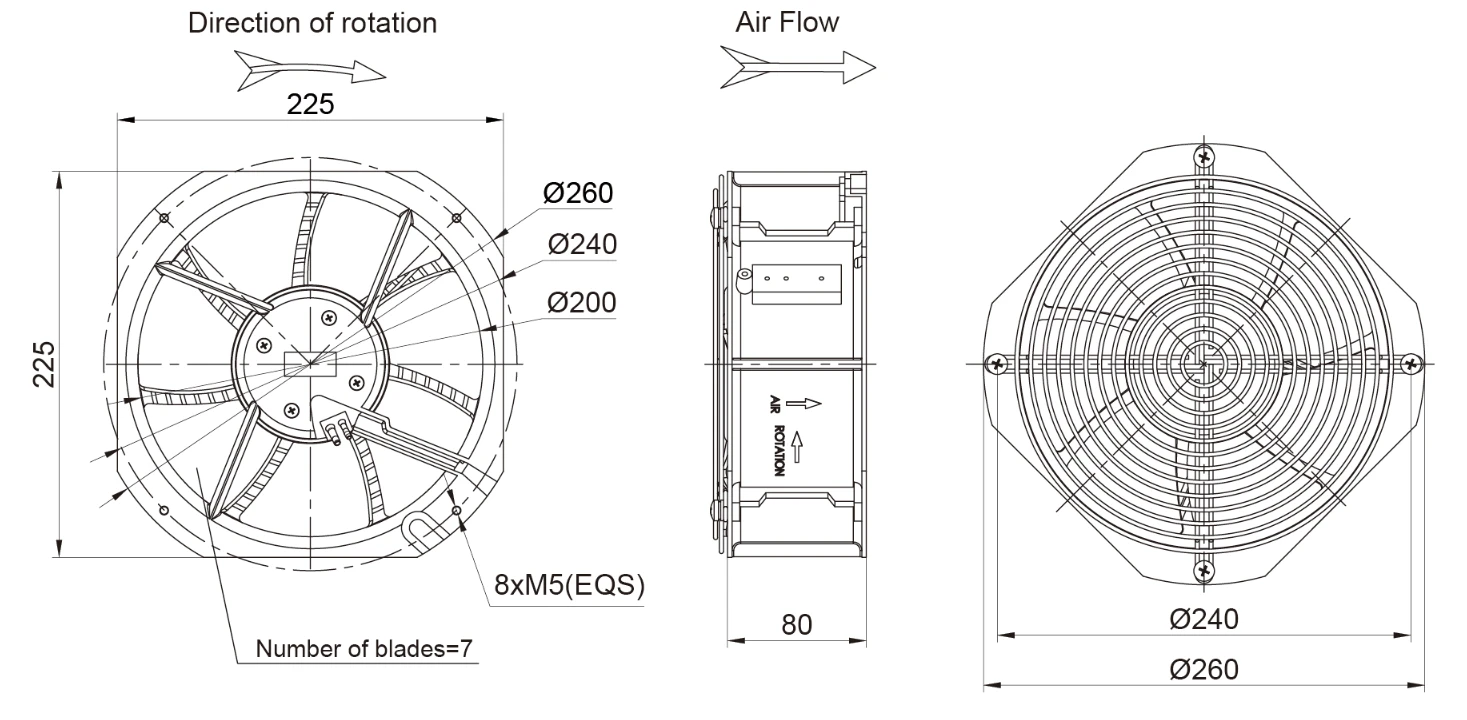

2-1	Dimension	Ø200 mm X 80 mm (see dimension drawing)
2-2	Material of Impeller	Cold rolled steel sheet
2-3	Number of Blades	7
2-4	Bearing System	NMB ball bearing
2-5	Lead Wire	AC (AWG20#),DC (AWG22 #)
