Tangential Blowers, Cross Flow
Slim Installation Height and High Air Flow Rate with lowest Noise

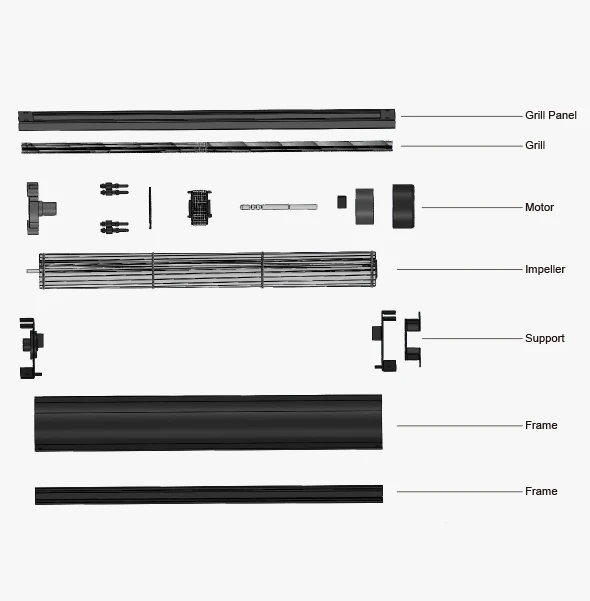

PBM tangential blowers combine 30~80mm diameter cross flow impeller with one single piece length maximum to 65mm, With AC and DC power supply EC green technology motor, with aluminum die cast fan frame, with anti-vibration rubber damping pad system, with ball bearing and sleeve bearing, maximum entire tangential fan length goes up to 1190mm at single, Double and triple sections harmoniously connected together makes it possible to achieve a very high airflow throughput ratio with extremely low wind noise with quiet three-core sin-wave integrated commutation electronics motor controller circuit and low air flow velocity.
Cross flow blowers are available for home indoor stove, fireplace, oven, wood burner underfloor convectors, air doors, air curtains, air conditioners and heaters’ cooling and ventilation at extremely shallow, flat design to satisfy home appliances’ nice outlooking and slim features that market requirements and consumer calling for.
Low noise with high air flow rates and low back pressures, compact slim design with anti-vibration rubber mechanical soft connection system, moisture proof and water proof versions are available for entire range tangential blowers with integrated and intelligence EC technology motor with PWM signal and 0~10V analog voltage to adjust power, and ErP2015 (Energy-related Products) directive conformity.
Impeller Sizes: From 30mm to 80mm diameter;
Sound Level: From 32dBA to maximum 48dBA according different rotation speed;
Airflow: Maximum to 600CMH, Cubic Meter per Hour, equal to approx. 353CFM , Cubic Feet per Minute;
Air Pressure: Maxim to 80Pa, equal to 8.16mm H2O and to 0.32 inches H2O;
Power: Maximum motor input power goes to 100W motor diameter 80mm.
AC Cross Flow Fan D(30-60)
Application
Efficient airflow circulation for air conditioning systems. Low noise, high static pressure, energy-saving for residential, commercial, and central AC units.
Efficient warm air circulation for electric corner heaters. Low noise, heat-resistant, compact design for fast, even heating in home and commercial spaces.
Efficient hot air circulation for fireplaces. Heat-resistant, low noise, continuous airflow, improving heating efficiency and distributing warmth evenly.
-
![Φ150x1215mm AC Cross Flow Fan PC150B2A1215L]()
Φ150x1215mm AC Cross Flow Fan PC150B2A1215LPBM FOCUS ON EC FAN ONLY. Certificate: CE,UL,ROHS; Supply Ability: 100,000 pcs per year; MOQ: 1~100 pcs based on EXW price; 100 pcs above based on FOB price.
-
![Φ150x918mm AC Cross Flow Fan PC150B2A918L]()
Φ150x918mm AC Cross Flow Fan PC150B2A918LPBM FOCUS ON EC FAN ONLY. Certificate: CE,UL,ROHS; Supply Ability: 100,000 pcs per year; MOQ: 1~100 pcs based on EXW price; 100 pcs above based on FOB price.
-
![Φ150x718mm AC Cross Flow Fan PC150B2A718L]()
Φ150x718mm AC Cross Flow Fan PC150B2A718LPBM FOCUS ON EC FAN ONLY. Certificate: CE,UL,ROHS; Supply Ability: 100,000 pcs per year; MOQ: 1~100 pcs based on EXW price; 100 pcs above based on FOB price.
-
![Φ150x518mm AC Cross Flow Fan PC150B2A518L]()
Φ150x518mm AC Cross Flow Fan PC150B2A518LPBM FOCUS ON EC FAN ONLY. Certificate: CE,UL,ROHS; Supply Ability: 100,000 pcs per year; MOQ: 1~100 pcs based on EXW price; 100 pcs above based on FOB price.
-
![Φ150x368mm AC Cross Flow Fan PC150B2A368L]()
Φ150x368mm AC Cross Flow Fan PC150B2A368LPBM FOCUS ON EC FAN ONLY. Certificate: CE,UL,ROHS; Supply Ability: 100,000 pcs per year; MOQ: 1~100 pcs based on EXW price; 100 pcs above based on FOB price.
-
![Φ150x270mm AC Cross Flow Fan PC150B2A270L]()
Φ150x270mm AC Cross Flow Fan PC150B2A270LPBM FOCUS ON EC FAN ONLY. Certificate: CE,UL,ROHS; Supply Ability: 100,000 pcs per year; MOQ: 1~100 pcs based on EXW price; 100 pcs above based on FOB price.
-
![Φ120x915mm AC Cross Flow Fan PC120B2A915L]()
Φ120x915mm AC Cross Flow Fan PC120B2A915LPBM FOCUS ON EC FAN ONLY. Certificate: CE,UL,ROHS; Supply Ability: 100,000 pcs per year; MOQ: 1~100 pcs based on EXW price; 100 pcs above based on FOB price.
-
![Φ120x715mm AC Cross Flow Fan PC120B2A715L]()
Φ120x715mm AC Cross Flow Fan PC120B2A715LPBM FOCUS ON EC FAN ONLY. Certificate: CE,UL,ROHS; Supply Ability: 100,000 pcs per year; MOQ: 1~100 pcs based on EXW price; 100 pcs above based on FOB price.
-
![Φ120x515mm AC Cross Flow Fan PC120B2A515L]()
Φ120x515mm AC Cross Flow Fan PC120B2A515LPBM FOCUS ON EC FAN ONLY. Certificate: CE,UL,ROHS; Supply Ability: 100,000 pcs per year; MOQ: 1~100 pcs based on EXW price; 100 pcs above based on FOB price.
-
![Φ120x365mm AC Cross Flow Fan PC120B2A365L]()
Φ120x365mm AC Cross Flow Fan PC120B2A365LPBM FOCUS ON EC FAN ONLY. Certificate: CE,UL,ROHS; Supply Ability: 100,000 pcs per year; MOQ: 1~100 pcs based on EXW price; 100 pcs above based on FOB price.
-
![Φ120x195mm AC Cross Flow Fan PC120B2A195L]()
Φ120x195mm AC Cross Flow Fan PC120B2A195LPBM FOCUS ON EC FAN ONLY. Certificate: CE,UL,ROHS; Supply Ability: 100,000 pcs per year; MOQ: 1~100 pcs based on EXW price; 100 pcs above based on FOB price.
-
![Φ100x765mm AC Cross Flow Fan PC100B2A765L]()
Φ100x765mm AC Cross Flow Fan PC100B2A765LPBM FOCUS ON EC FAN ONLY. Certificate: CE,UL,ROHS; Supply Ability: 100,000 pcs per year; MOQ: 1~100 pcs based on EXW price; 100 pcs above based on FOB price.
FAQ
Q: How do I choose the right cross flow fan?
A: When selecting a cross flow fan or tangential blower, buyers should evaluate:
● Required airflow (CFM or m³/h)
● Fan length and diameter
● Static pressure requirements
● Noise limitations
● Voltage and frequency
● AC or EC motor options
● Installation space
● Operating temperature

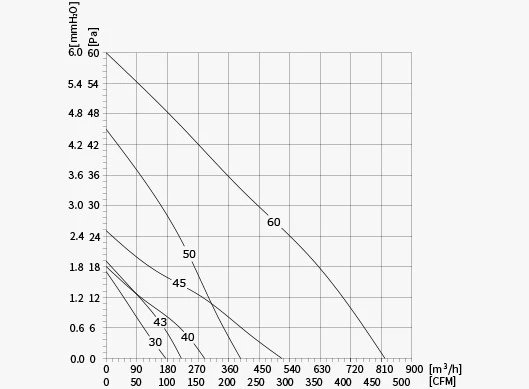

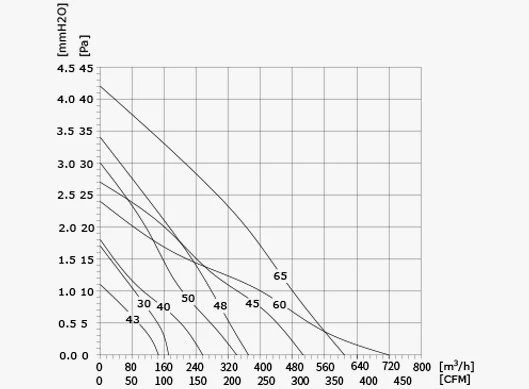

Reviewing the fan performance curve is important to ensure proper airflow performance and system compatibility.
Q: What are the advantages of tangential blowers?
A: Tangential blowers offer several important advantages, including:
● Wide and uniform airflow distribution
● Low operating noise
● Compact structure
● Stable airflow performance
● Efficient cooling for narrow spaces
● Good airflow coverage across long openings
These characteristics make them highly suitable for HVAC and electronic cooling applications.
Q: Can tangential blowers be customized?
A: Yes. Many manufacturers offer customized tangential blower solutions for OEM and industrial applications. Customization options may include:
● Fan dimensions
● Airflow performance
● Motor type (AC or EC)
● Voltage and frequency
● Speed control systems
● Mounting structure
● Noise optimization
● Special blade or housing designs
Customized blowers are commonly used in HVAC equipment and commercial ventilation systems.
Q: What is the difference between a tangential blower and a centrifugal blower?
A: The main difference is airflow pattern and application design. A tangential blower produces a wide, uniform airflow along the entire length of the fan, making it ideal for applications requiring even air distribution.
A centrifugal blower generates higher static pressure and is typically used for ducted ventilation systems and industrial exhaust applications.
Tangential blowers are commonly used in compact equipment where low noise and balanced airflow are important.
Q: Where are tangential blowers and cross flow fans commonly used?
A: Tangential blowers and cross flow fans are widely used in:
● Air curtains
● Fan coil units (FCU)
● HVAC systems
● Heating equipment
● Electronic cooling systems
● Refrigeration equipment
● Display cabinets
● Industrial control cabinets
● Commercial appliances
Their ability to provide uniform airflow makes them suitable for compact ventilation and cooling systems.
