Axial Fans, Technical Features Overview
Quieter, More Powerful and Longer Lifespan

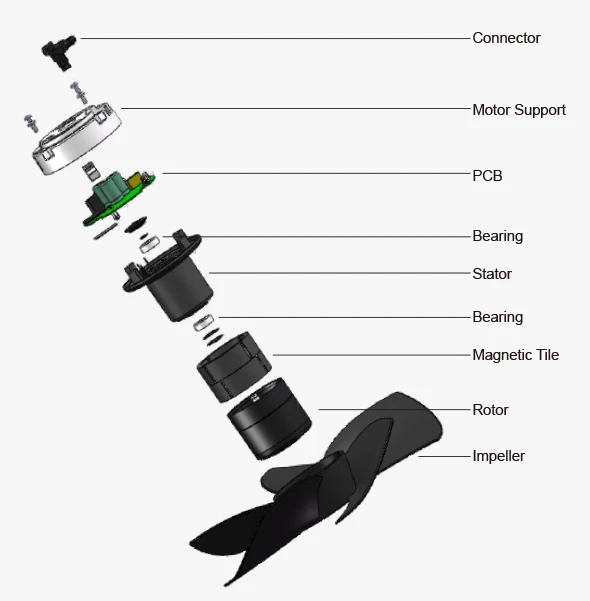

PBM Axial fans adopt both metal welding and single-piece plastic with glass fiber reinforcement aerodynamic impeller, compact energy-saving smart EC motor drives it with maintenance free ball bearing to guarantee longer lifespan.
The fans could be installed at all directions with variety of fan safety guard grill, wall ring and air-guiding wind deflector dome where the patten and causation of flow loss caused by the pressure distortion in rotor and stator were analyzed.
Quieter sound level contributes at customer requested fan performance working point compare with competitors in their ventilation, heating, refrigeration product or system.
AC and DC power supply are available for entire range of fans with integrated and intelligence EC technology motor with inside or outside mounted international standard remote control RS485 communication protocol that’s suitable to be adopted in IoE(Internet of Everything), IoT(Internet of Things), smart home system, Industry 4.0 and committed to Carbon Neutrality climate change by reducing customers carbon footprints.
PFC(Power Factor Correction), up to λ>96%, is optional for electricity grad stabilization compliance in certain circumstances of applications. ErP2015 (Energy-related Products) conformity, COMMISSION REGULATION (EU) No 327/2011 of 30 March 2011 implementing Directive 2009/125/EC of the European Parliament and of the Council with regard to eco-design requirements for fans driven by motors with an electric input power between 125W and 500kW.

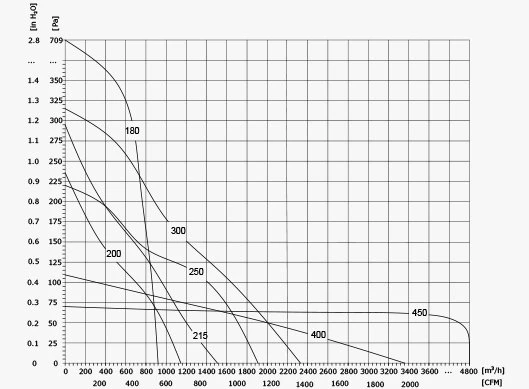

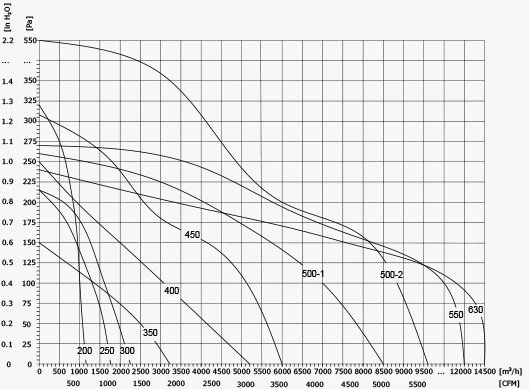

Axial Flow Fans Specification
Impeller Sizes: from 200mm to 630mm diameter;
Sound Level: from from 63dBA to maximum 78dBA according different rotation speed;
Airflow: maximum to 14,500CMH, Cubic Meter per Hour, equal to approx. 8,533CFM , Cubic Feet per Minute;
Air Pressure: Maxim to 270Pa, equal to 27.55mm H2O and to 1.08 inches H2O;
Power: Maximum motor input power goes to 950W (equal to 1.29hp, horsepower) at motor diameter 138mm.
EC Axial Fan D(200-630)
The above axial flow fans technical specifications are subject to continuous update, please take the real product as the base. PBM Motor and Fan is a professional ec axial fans manufacturer and supplier in China, providing various ec axial flow fans and motors. Product details of axial flow fan, you can contact us for wholesale price and professional service!
Application

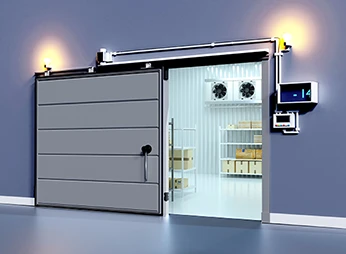

Stable airflow for cold storage & cold chain. Low-temp resistant, high pressure, anti-icing, ensuring reliable temperature control for food and pharma.

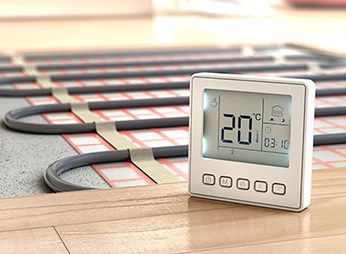

Efficient hot air circulation for heating equipment. Heat-resistant, low noise, steady airflow for heaters, heat pumps, and industrial systems.

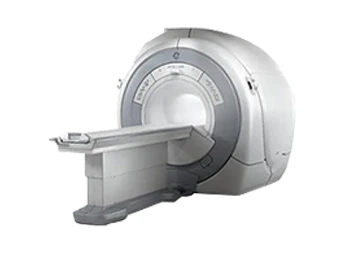

Efficient heat dissipation for X-ray equipment. High static pressure, low noise, long-life for tubes and generators, extending equipment service life.
-
![Φ120x120x38mm EC-DC Axial Fan PA15051B48F]()
Φ120x120x38mm EC-DC Axial Fan PA15051B48FPBM FOCUS ON EC FAN ONLY. Certificate: CE,UL,ROHS; Supply Ability: 100,000 pcs per year; MOQ: 1~100 pcs based on EXW price; 100 pcs above based on FOB price.
-
![80x80x56mm EC-DC Axial Fan PA8056B12U]()
80x80x56mm EC-DC Axial Fan PA8056B12UPBM FOCUS ON EC FAN ONLY. Certificate: CE,UL,ROHS; Supply Ability: 100,000 pcs per year; MOQ: 1~100 pcs based on EXW price; 100 pcs above based on FOB price.
-
![Φ120x120x38mm EC-DC Axial Fan PA15051B24X]()
Φ120x120x38mm EC-DC Axial Fan PA15051B24XPBM FOCUS ON EC FAN ONLY. Certificate: CE,UL,ROHS; Supply Ability: 100,000 pcs per year; MOQ: 1~100 pcs based on EXW price; 100 pcs above based on FOB price.
-
![120x120x38mm EC-DC Axial Fan PA12038B48T]()
120x120x38mm EC-DC Axial Fan PA12038B48TPBM FOCUS ON EC FAN ONLY. Certificate: CE,UL,ROHS; Supply Ability: 100,000 pcs per year; MOQ: 1~100 pcs based on EXW price; 100 pcs above based on FOB price.
-
![120x120x38mm EC-DC Axial Fan PA12038B24T]()
120x120x38mm EC-DC Axial Fan PA12038B24TPBM FOCUS ON EC FAN ONLY. Certificate: CE,UL,ROHS; Supply Ability: 100,000 pcs per year; MOQ: 1~100 pcs based on EXW price; 100 pcs above based on FOB price.
-
![80x80x38mm EC-DC Axial Fan PA8038B48G]()
80x80x38mm EC-DC Axial Fan PA8038B48GPBM FOCUS ON EC FAN ONLY. Certificate: CE,UL,ROHS; Supply Ability: 100,000 pcs per year; MOQ: 1~100 pcs based on EXW price; 100 pcs above based on FOB price.
-
![80x80x38mm EC-DC Axial Fan PA8038B24G]()
80x80x38mm EC-DC Axial Fan PA8038B24GPBM FOCUS ON EC FAN ONLY. Certificate: CE,UL,ROHS; Supply Ability: 100,000 pcs per year; MOQ: 1~100 pcs based on EXW price; 100 pcs above based on FOB price.
-
![80x80x38mm EC-DC Axial Fan PA8038B12G]()
80x80x38mm EC-DC Axial Fan PA8038B12GPBM FOCUS ON EC FAN ONLY. Certificate: CE,UL,ROHS; Supply Ability: 100,000 pcs per year; MOQ: 1~100 pcs based on EXW price; 100 pcs above based on FOB price.
-
![60x60x56mm EC-DC Axial Fan PA6056B12U]()

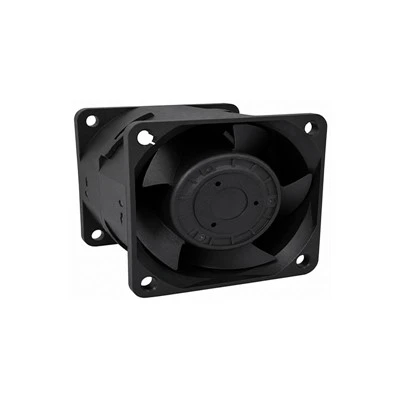

60x60x56mm EC-DC Axial Fan PA6056B12UPBM FOCUS ON EC FAN ONLY. Certificate: CE,UL,ROHS; Supply Ability: 100,000 pcs per year; MOQ: 1~100 pcs based on EXW price; 100 pcs above based on FOB price.
-
![40x40x56mm EC-DC Axial Fan PA4056B12U]()
40x40x56mm EC-DC Axial Fan PA4056B12UPBM FOCUS ON EC FAN ONLY. Certificate: CE,UL,ROHS; Supply Ability: 100,000 pcs per year; MOQ: 1~100 pcs based on EXW price; 100 pcs above based on FOB price.
-
![Φ40x40x28mm EC-DC Axial Fan PA4028B24H]()
Φ40x40x28mm EC-DC Axial Fan PA4028B24HPBM FOCUS ON EC FAN ONLY. Certificate: CE,UL,ROHS; Supply Ability: 100,000 pcs per year; MOQ: 1~100 pcs based on EXW price; 100 pcs above based on FOB price.
-
![Φ40x40x10mm EC-DC Axial Fan PA4010B24M]()
Φ40x40x10mm EC-DC Axial Fan PA4010B24MPBM FOCUS ON EC FAN ONLY. Certificate: CE,UL,ROHS; Supply Ability: 100,000 pcs per year; MOQ: 1~100 pcs based on EXW price; 100 pcs above based on FOB price.
FAQ
Q: How do I choose the right axial fan?
A: When selecting an axial fan, buyers should evaluate:
● Required airflow (CFM or m³/h)
● Static pressure requirements
● Fan diameter
● Motor type (AC or EC)
● Installation environment
● Noise requirements
● Voltage and frequency
● Energy efficiency goals
Reviewing the fan performance curve is essential for proper system matching.
Q: Can axial fans be customized?
A: Yes. Many manufacturers provide customized axial fan solutions for OEM and industrial applications. Customization options may include:
● Fan size and airflow performance
● AC or EC motor configuration
● Voltage and frequency
● Blade material and design
● Speed control systems
● Mounting structure
● Corrosion-resistant coatings
● Noise reduction optimization
Customized axial fans are widely used in industrial equipment and ventilation systems.
Q: What is the difference between an axial and centrifugal fan?
A: The main difference is airflow direction and pressure capability. An axial fan moves air parallel to the shaft and is best suited for:
● High airflow volume
● Low-to-medium static pressure
● Open ventilation systems
● A centrifugal fan moves air at a 90-degree angle and is typically used for:
● Higher static pressure
● Ducted systems
● Industrial exhaust applications
● Axial fans are generally more compact and energy efficient for large-volume airflow applications.
Q: Where are axial fans commonly used?
A: Axial fans are widely used in:
● HVAC systems
● Industrial ventilation
● Condenser cooling
● Data centers
● Agricultural ventilation
● Refrigeration systems
● Electrical cabinet cooling
●Tunnel ventilation
● Warehouse air circulation
Their high airflow capability makes them suitable for both industrial and commercial applications.
Q: Which is better: AC axial fan or EC axial fan?
A: EC axial fans are generally more energy efficient than traditional AC axial fans because they use electronically commutated motors with intelligent speed control. EC axial fans offer:
● Lower energy consumption
● Variable speed control
● Lower operating noise
● Longer lifespan
● Better efficiency at partial loads
● AC axial fans are still widely used because of their lower initial cost and simple control structure.
