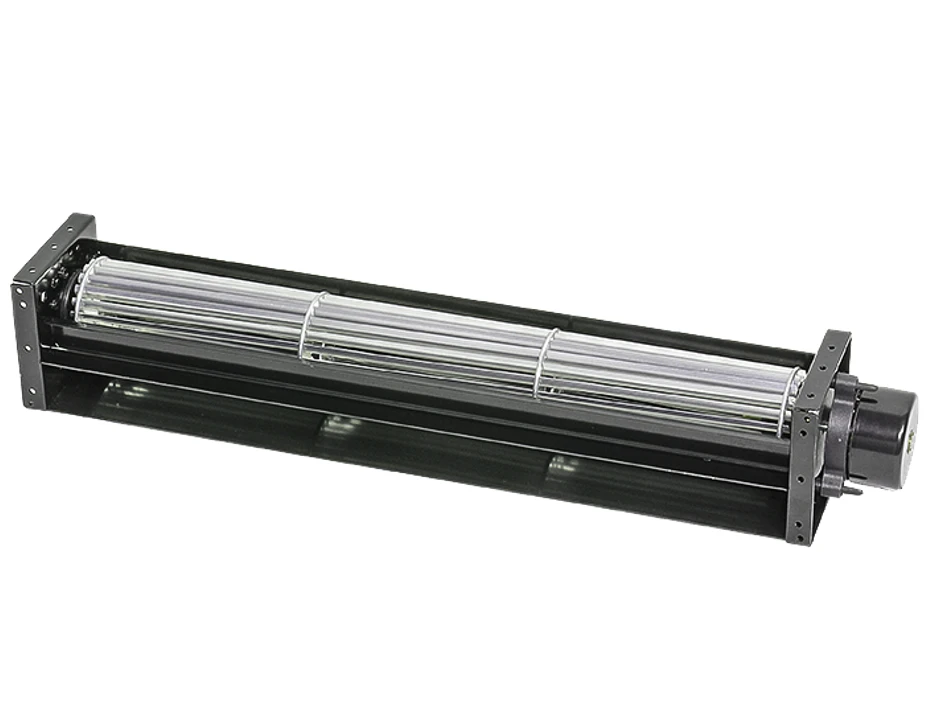

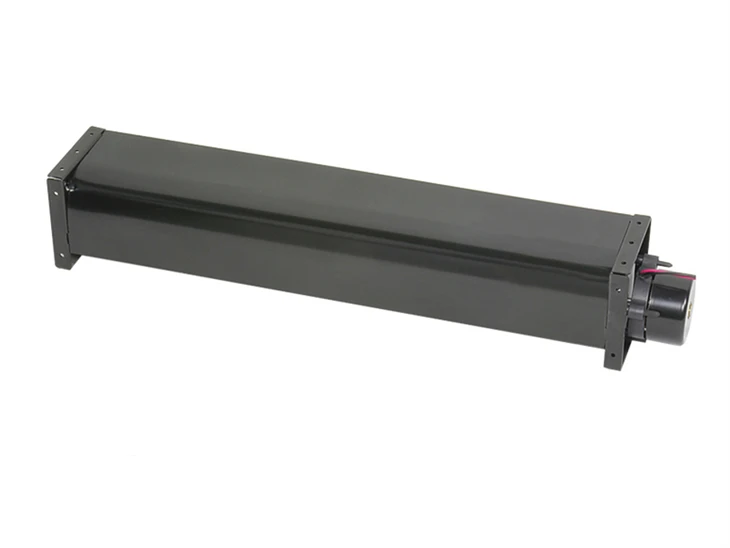

PBM Motor and Fan (Suzhou) Co., Ltd. is one of the most reliable manufacturers and suppliers of φ40x348mm dc cross flow fan pc40b24348b in China. With abundant experience, we are committed to providing high quality customized products with competitive price. If you're going to buy bulk premium φ40x348mm dc cross flow fan pc40b24348b, welcome to get pricelist from our factory.

PBM specializes in the development and production of superior EC/DC fans and intelligent airflow solutions that support built-in heating systems, gas fireplaces, and electric fireplaces. To guarantee a precise match between the fan and the installation area of different fireplace types, PBM provides custom length alternatives. Additionally, different DC voltage parameters may be customized. The air outlet us design may be tailored to the needs of the client; structural drawings allow for flexible adjustments to the inlet and outlet us direction and left/right rotation.

General Characters

1-1	Rated Voltage	24 VDC
1-2	Operating Voltage	16~28 VAC
1-3	Rated Speed	2600 RPM
1-4	Input Current	0.26 A
1-5	Input Power	6.24 W
1-6	Air Flow	95.34 CFM / 162 m³/H
1-7	Static Pressure	3.27 mmH₂O / 32Pa
1-8	Acoustical Noise	37 dB(A)
1-9	Life Expectancy	50,000 Hours (L10) At 40℃ room, humidity 15%~65%RH.
1-10	Insulation Class	Class B
1-11	Motor Protection	Locked rotor protection Polarity protection Automatic restart capability
1-12	Speed Control	Control input 0~10VDC / PWM
1-13	Protection Type	IP44
1-14	Signal Output	FG (Frequency Generator)

Mechanical Characters

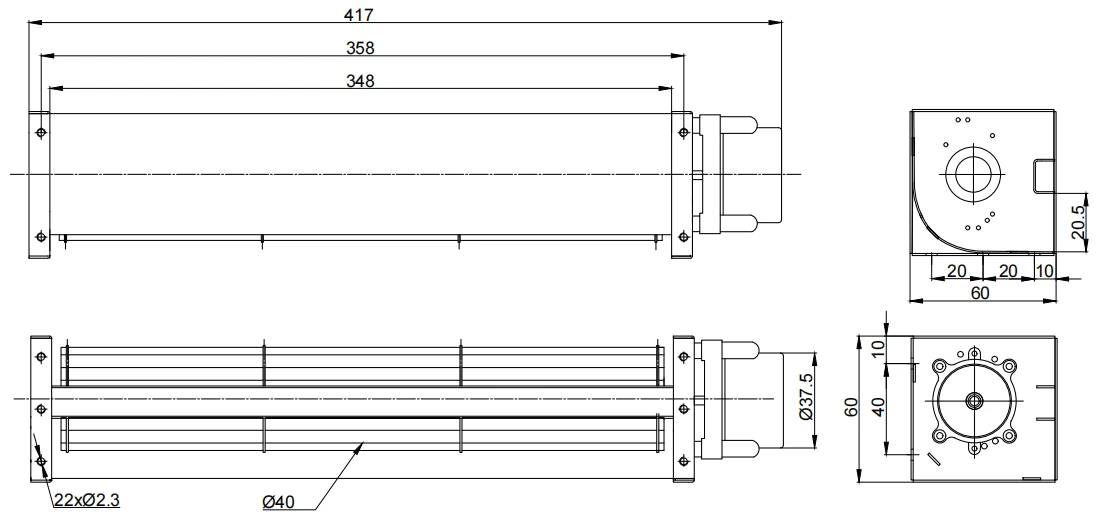

2-1	Dimension	60 mm X 60mm X 417mm (see dimension drawing)
2-2	Material of Impeller	Aluminum alloy
2-3	Number of Blades	22
2-4	Bearing System	NMB ball bearing
2-5	Lead Wire	Red, Black, White AWG22#
