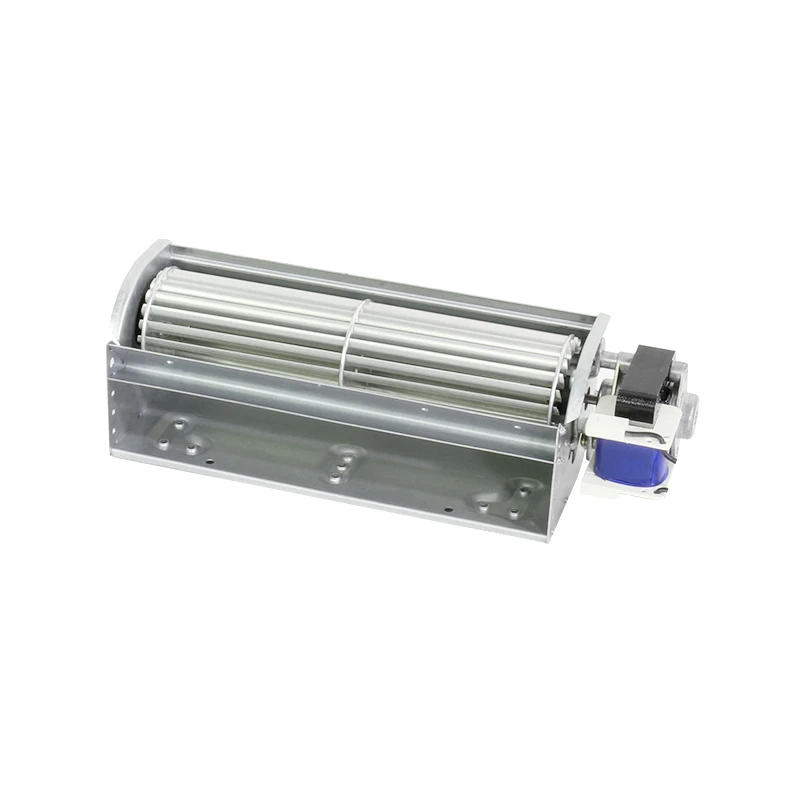

PBM Motor and Fan (Suzhou) Co., Ltd. is one of the most reliable manufacturers and suppliers of φ48x252mm ac cross flow fan pc48b2a252b in China. With abundant experience, we are committed to providing high quality customized products with competitive price. If you're going to buy bulk premium φ48x252mm ac cross flow fan pc48b2a252b, welcome to get pricelist from our factory.
General Characters
|
1-1 |
Rated Voltage |
230 VAC |
|
1-2 |
Frequency |
50/60 Hz |
|
1-3 |
Rated Speed |
2400 RPM |
|
1-4 |
Input Current |
0.26 A |
|
1-5 |
Input Power |
29 W |
|
1-6 |
Acoustical Noise |
46 dBA |
|
1-7 |
Life Expectance |
30,000 Hours At nominal supply voltage, full speed room temperature 20℃. |
|
1-8 |
Direction of Rotation |
Clockwise seen on rotor |
|
1-9 |
Air Flow |
125.35 CFM / 213 m³/H |
|
1-10 |
Air Pressure |
4.08 mmH2O / 40 Pa |
Mechanical Characters
|
2-1 |
Dimension |
72mm X 80.2mm X 310mm(see dimension drawing) |
|
2-2 |
Material of Impeller |
Aluminum alloy |
|
2-3 |
Number of Blades |
28 |
|
2-4 |
Bearing System |
NMB ball bearing |
|
2-5 |
Lead Wire |
Red, Black, AWG#20 |
Environmental Characters
|
3-1 |
Operating Temperature |
-20℃ to 70℃ |
|
3-2 |
Storage Temperature |
-40℃ to 80℃ |
|
3-3 |
Operating Humidity |
5% to 90% RH |
|
3-4 |
Storage Humidity |
5% to 95% RH |

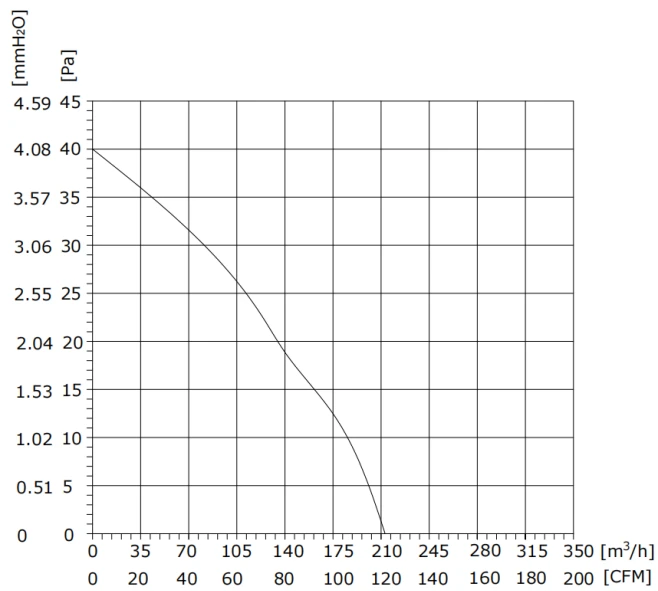

Performance Curve
Testing Condition:
Input Voltage----Operating voltage (230VAC/50Hz)
Temperature-----Room temperature
Humidity---------65%RH

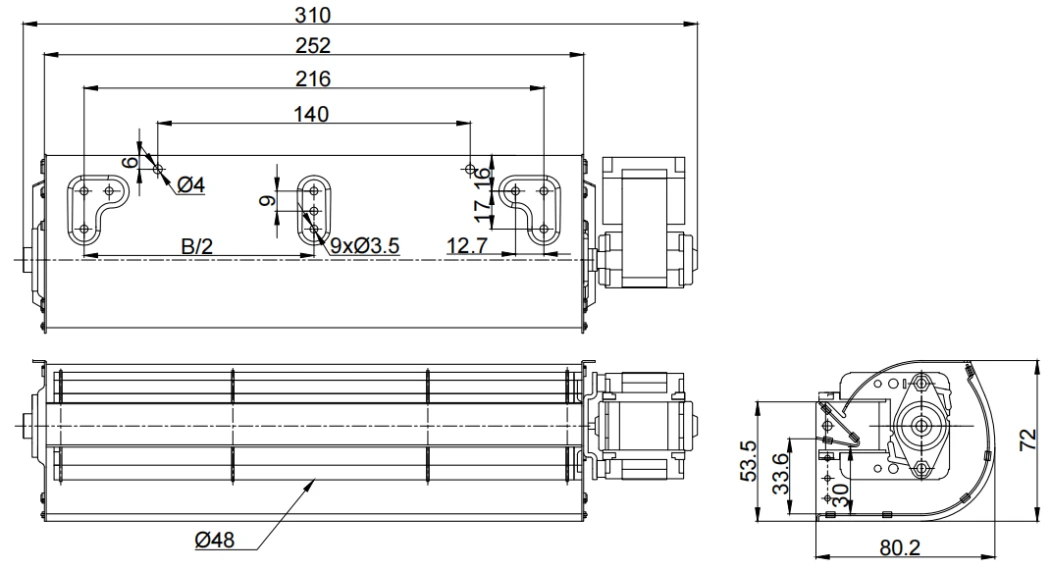

Outline Drawing
Note:
1.Connection line: Red, Black, AWG#20;
2.Red=Live Line, Black=Null line.
