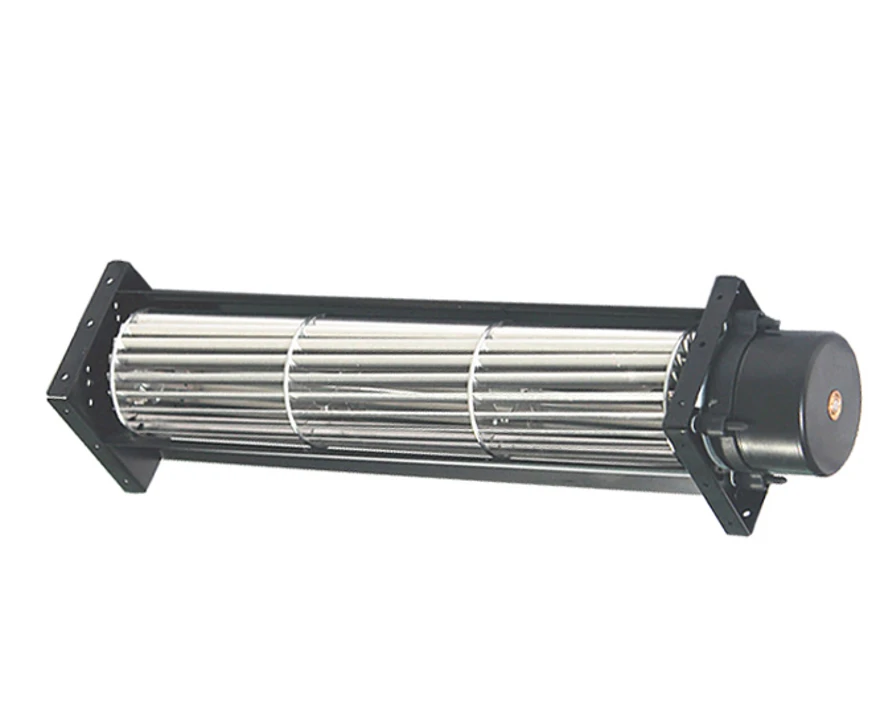

PBM Motor and Fan (Suzhou) Co., Ltd. is one of the most reliable manufacturers and suppliers of φ50x200mm dc cross flow fan pc50b12200a in China. With abundant experience, we are committed to providing high quality customized products with competitive price. If you're going to buy bulk premium φ50x200mm dc cross flow fan pc50b12200a, welcome to get pricelist from our factory.
General Characters
|
1-1 |
Rated Voltage |
12 VDC |
|
1-2 |
Operating Voltage |
9~15 VDC |
|
1-3 |
Rated Speed |
2400 RPM |
|
1-4 |
Input Current |
0.3 A |
|
1-5 |
Input Power |
3.6 W |
|
1-6 |
Air Flow |
70.62 CFM / 120 m3/H |
|
1-7 |
Static Pressure |
4.29 mmH2O / 42 Pa |
|
1-8 |
Acoustical Noise |
41 dB(A) |
|
1-9 |
Life Expectance |
50,000 Hours(L10) At 40℃ room, humidity 15%~65%RH. |
|
1-10 |
Insulation Class |
Class B |
|
1-11 |
Motor Protection |
Locked rotor protection Polarity protection Automatic restart capability |
|
1-12 |
Speed Control |
Control input 0~10VDC / PWM |
|
1-13 |
Protection Type |
IP44 |
|
1-14 |
Signal Output |
FG (Frequency Generator) |
Mechanical Characters
|
2-1 |
Dimension |
65mm X 67mm X 256mm (see dimension drawing) |
|
2-2 |
Material of Impeller |
Aluminum alloy |
|
2-3 |
Number of Blades |
22 |
|
2-4 |
Bearing System |
NMB ball bearing |
|
2-5 |
Lead Wire |
Red , Black, White AWG22# |
Environmental Characters
|
3-1 |
Operating Temperature |
-25℃ to 60℃ |
|
3-2 |
Storage Temperature |
-40℃ to 75℃ |
|
3-3 |
Operating Humidity |
5% to 90% RH |
|
3-4 |
Storage Humidity |
5% to 95% RH |

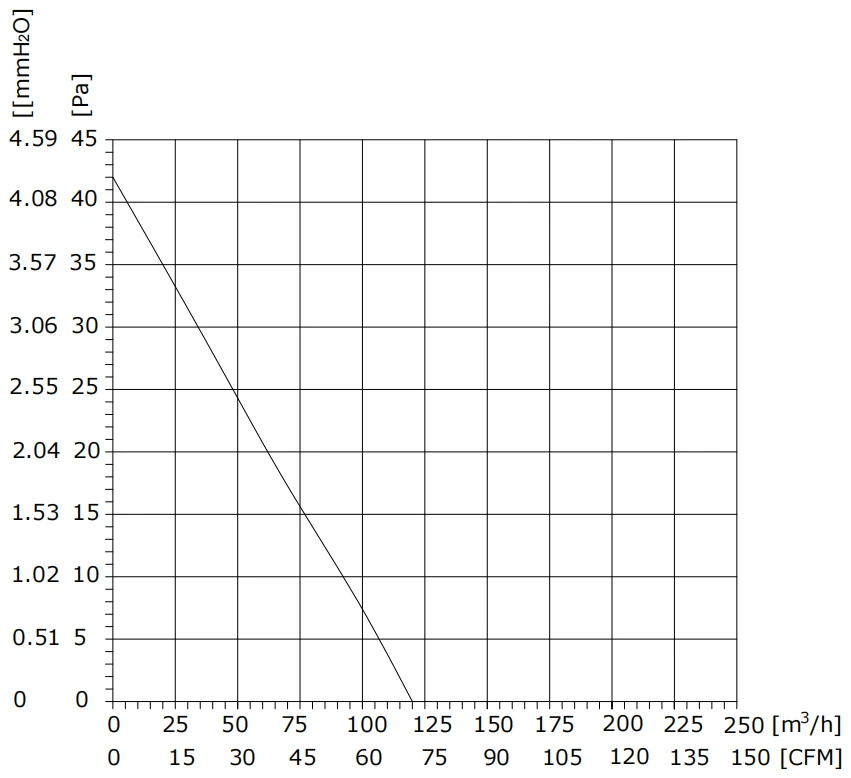

Performance Curve
Input Voltage----Operating voltage (12 VDC)
Temperature-----Room temperature
Humidity---------65%RH
Test distance-----1m

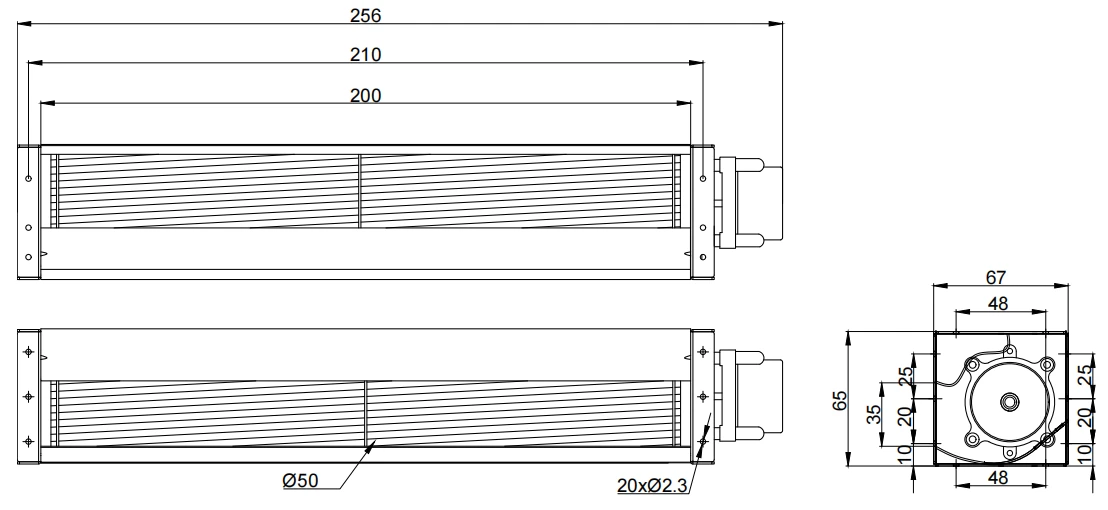

Outline Drawing
Note:
Connection line 3X (Red, Black, White AWG22#);
Red=+12VDC, White=0-10VDC, Blue=GND.
