General Characters

1-1	Rated Voltage	12 VDC
1-2	Operating Voltage	9~15 VDC
1-3	Rated Speed	2400 RPM
1-4	Input Current	0.51 A
1-5	Input Power	6.12 W

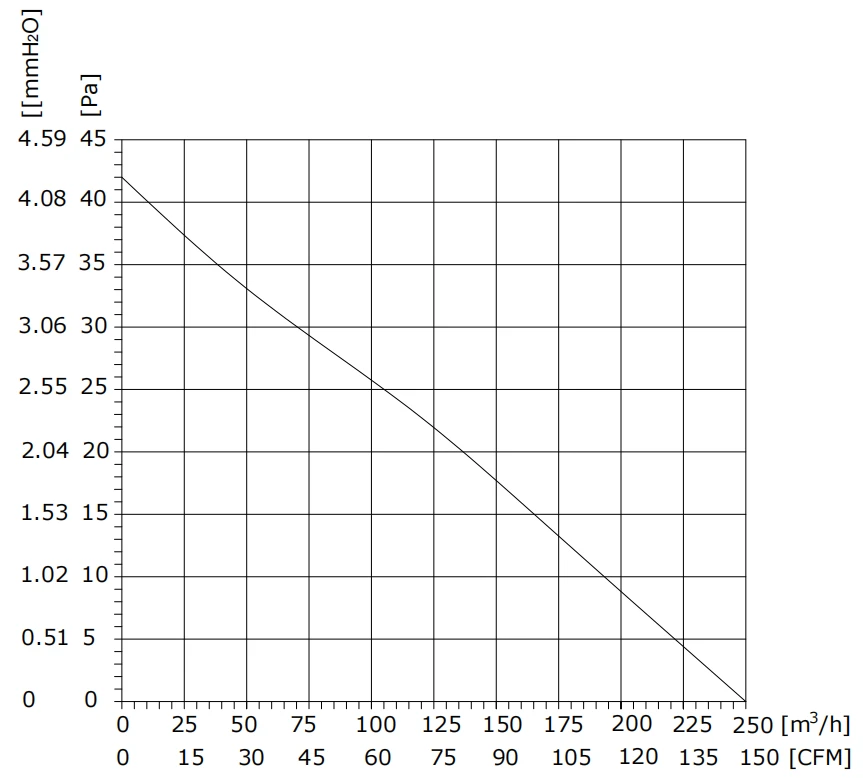

1-6	Air Flow	147.13 CFM / 250 m³/H
1-7	Static Pressure	4.29 mmH₂O / 42 Pa
1-8	Acoustical Noise	46 dB(A)
1-9	Life Expectance	50,000 Hours(L10) At 40℃ room, humidity 15%~65%RH.
1-10	Insulation Class	Class B
1-11	Motor Protection	Locked rotor protection Polarity protection Automatic restart capability
1-12	Speed Control	Control input 0~10VDC / PWM
1-13	Protection Type	IP44
1-14	Signal Output	FG (Frequency Generator)

Mechanical Characters

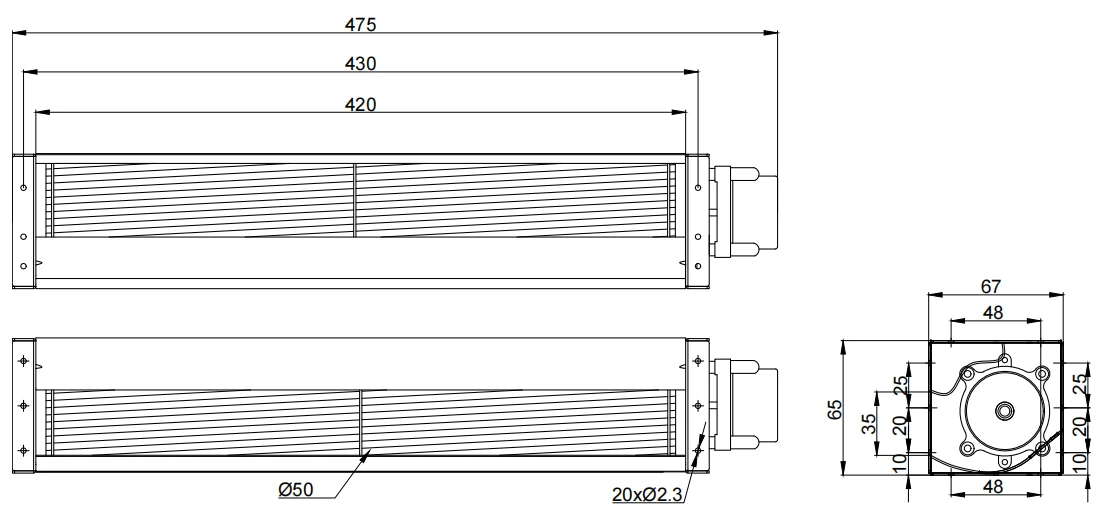

2-1	Dimension	65mm X 67mm X 475mm (see dimension drawing)
2-2	Material of Impeller	Aluminum alloy
2-3	Number of Blades	22
2-4	Bearing System	NMB ball bearing
2-5	Lead Wire	Red , Black, White AWG22#
