PBM Motor and Fan (Suzhou) Co., Ltd. is one of the most reliable manufacturers and suppliers of 310mm waterproof ip55 ec-ac backward curved centrifugal fan pb3n310b4e-yz5 in China. With abundant experience, we are committed to providing high quality customized products with competitive price. If you're going to buy bulk premium 310mm waterproof ip55 ec-ac backward curved centrifugal fan pb3n310b4e-yz5, welcome to get pricelist from our factory.
Rated at 380V AC (operating range 304–456V AC) with 50/60 Hz compatibility, and powered by EC motor (electronically commutated brushless motor) technology, this backward curved centrifugal fan delivers an industry-leading 4500 m³/h (2648.25 CFM) of airflow and an industry-top 1600 Pa (6.40 inH2O) of static pressure at 3,000 RPM. The 1600 Pa ultra-high static pressure easily overcomes cumulative resistance from HEPA filters, dense coil arrays, and long-distance ductwork, ensuring stable airflow in central dust collection systems, AHU, and cleanroom systems.
Choose the PB3N310B4E-YZ5 for a high static pressure, low noise, IP55 EC-AC backward curved centrifugal fan for your most demanding large-scale ventilation applications.
General Characters
|
1-1 |
Rated Voltage |
380 VAC |
|
1-2 |
Frequency |
50/60 Hz |
|
1-3 |
Operating Voltage |
304~456 VAC |
|
1-4 |
Rated Speed | 3000 RPM |
|
1-5 |
Input Current |
1.2 A |
|
1-6 |
Input Power |
1100 W |
|
1-7 |
Air Flow |
2648.25 CFM / 4500 M³/H |
|
1-8 |
Static Pressure |
6.40 inH2O / 1600 Pa |
|
1-9 |
Acoustical Noise |
87 dB(A) |
|
1-10 |
Life Expectance |
50,000 Hours(L10) At 40℃ room, humidity 15%~65%RH. |
|
1-11 |
Insulation Class |
Class F |
|
1-13 |
Motor Protection |
Locked rotor protection Polarity protection Automatic restart capability |
|
1-14 |
Speed Control |
Control input 0~10VDC / PWM |
|
1-15 |
Protection Type |
IP55 |
|
1-17 |
Signal Output |
FG (Frequency Generator) |
Mechanical Characters
|
2-1 |
Dimension |
Ø319 mm X 221 mm (see dimension drawing) |
|
2-2 |
Material of Impeller |
Aluminium sheet |
|
2-3 |
Number of Blades |
8 |
|
2-4 |
Bearing System |
NMB ball bearing |
|
2-5 |
Lead Wire |
AC (AWG18#),DC (AWG24#) |
Environmental Characters
|
3-1 |
Operating Temperature |
-25℃ to 60℃ |
|
3-2 |
Storage Temperature |
-40℃ to 75℃ |
|
3-3 |
Operating Humidity |
5% to 90% RH |
|
3-4 |
Storage Humidity |
5% to 95% RH |

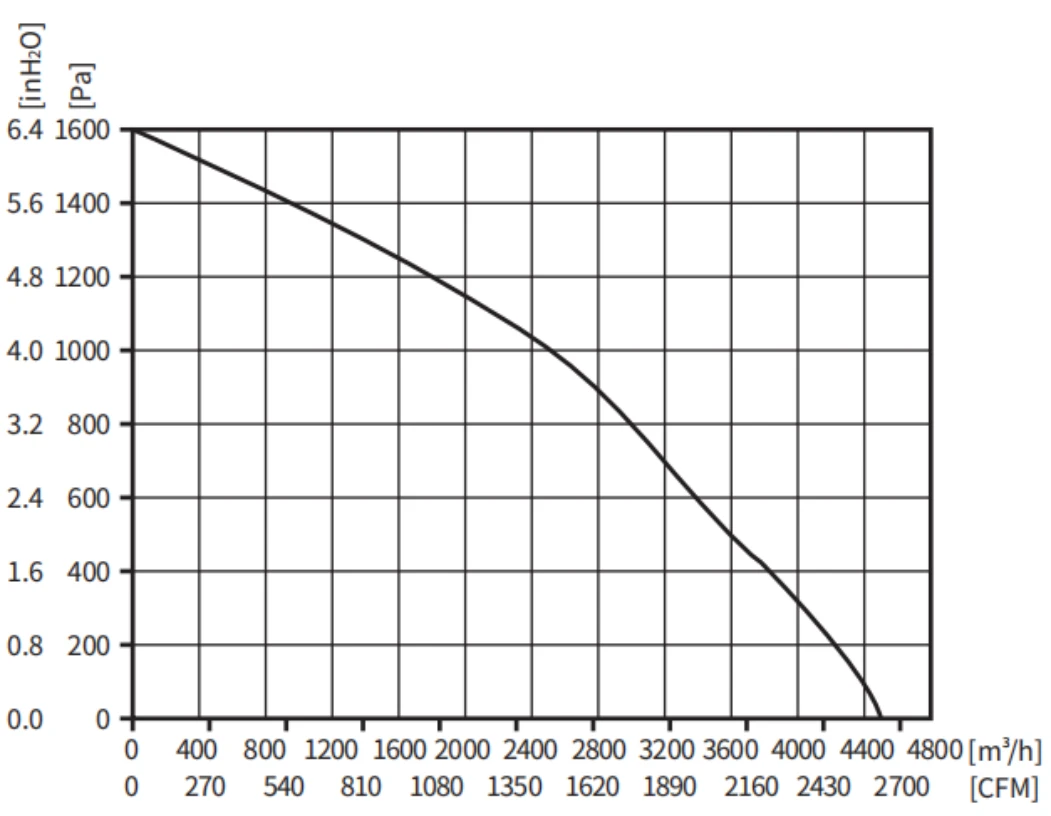

Performance Curve
Testing Condition:
Input Voltage----Operating voltage (380VAC/50Hz)
Temperature-----Room temperature
Humidity---------65%RH

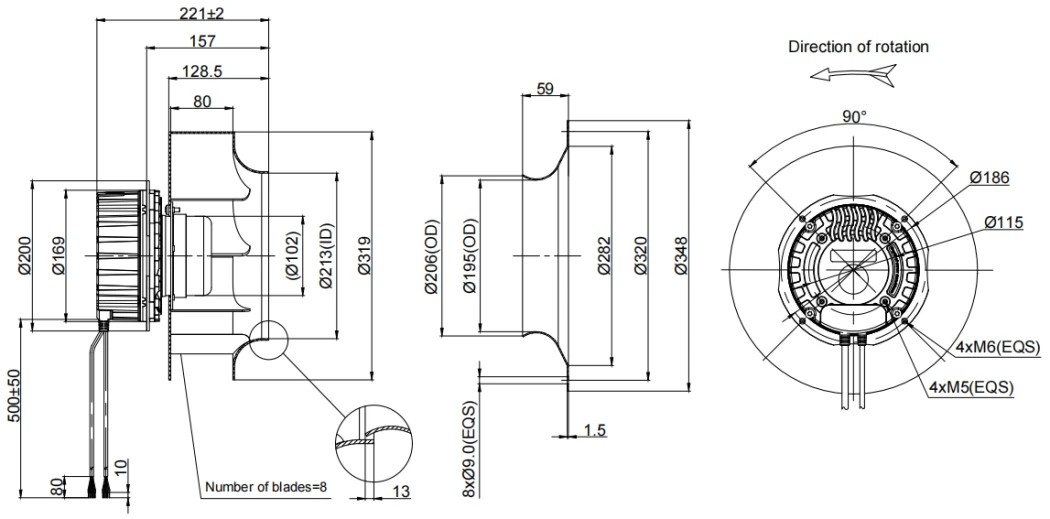

Outline Drawing
Note:
1.Connection line: AC(6×AWG18#),DC(6×AWG24#)
2.AC: Brown=L1(R),Blue=L2(S),Black=L3(T),Green & Yellow=Protecting Earthing,White=NC,Gray=COM;
3.DC: Red=Voltage Output +10VDC, Yellow=0-10VDC/PWM, Blue=GND, White=Tach output, Brown=RSA,Gray=RSB ;
