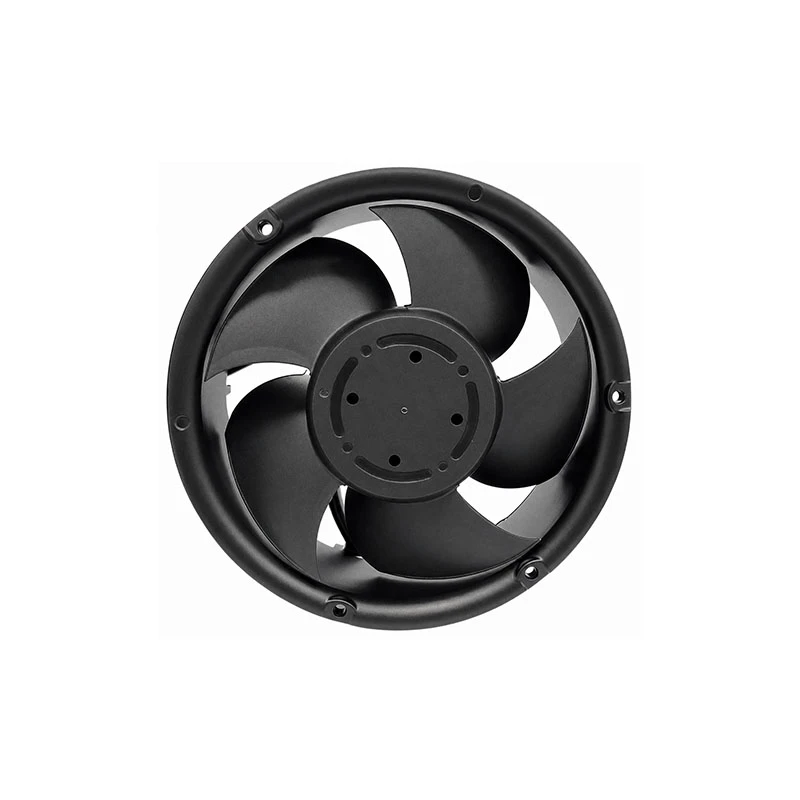

PBM Motor and Fan (Suzhou) Co., Ltd. is one of the most reliable manufacturers and suppliers of φ120x120x38mm ec-dc axial fan pa15051b48f in China. With abundant experience, we are committed to providing high quality customized products with competitive price. If you're going to buy bulk premium φ120x120x38mm ec-dc axial fan pa15051b48f, welcome to get pricelist from our factory.

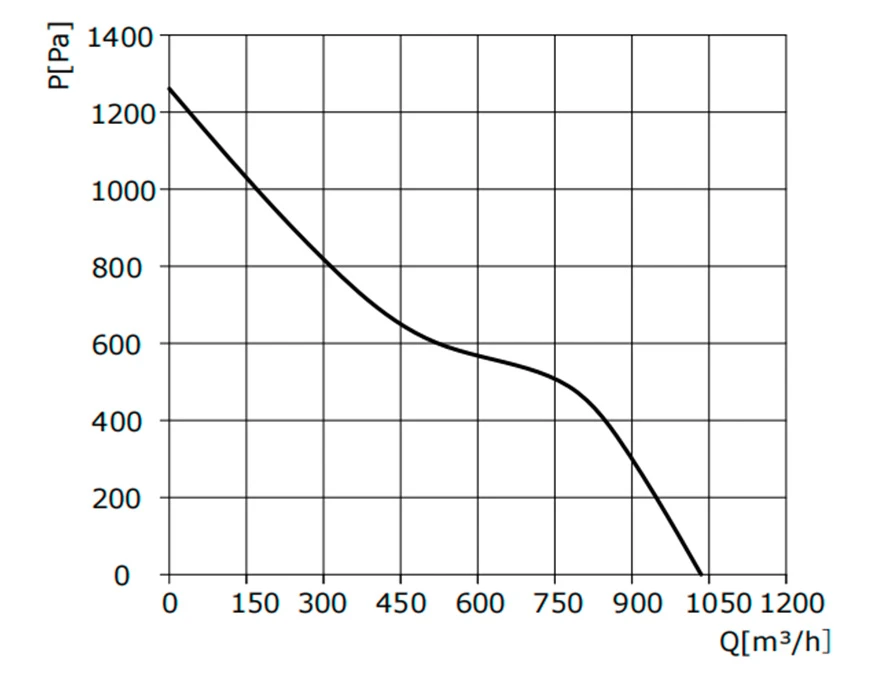

With a rated voltage of 48VDC and a high-speed operation up to 9500 RPM, the PA15051B48F provides an airflow of 1008.6m³/h and a maximum static pressure of 1274Pa, making it suitable for high-resistance cooling systems. The compact 120mm frame size and optimized axial impeller design allow easy integration into industrial equipment and electronic cooling applications.

This compact axial fan is widely used in industrial control systems, communication equipment, power electronics, medical devices, and HVAC applications where efficient heat dissipation and stable airflow performance are required. PBM provides customized EC/DC axial fan solutions with flexible options for voltage, connector, and performance requirements, supporting customers from prototype validation to mass production.

General Characters

1-1	Rated Voltage	48 VDC
1-2	Frequency	/
1-3	Operating Voltage	28~56 VDC
1-4	Rated Speed	9500 RPM
1-5	Input Current	3.2 A
1-6	Input Power	153.6 W
1-7	Airflow	1008.6 M³/H
1-8	Static Pressure	1274 Pa
1-9	Acoustical Noise	77 dB(A)
1-10	Life Expectancy	50,000 Hours(L10) At 40℃ room,humidity 15%～65%RH.
1-11	Insulation Class	Class A
1-13	Motor Protection	/
1-14	Speed Control	/
1-15	Protection Type	/
1-17	Signal Output	/
