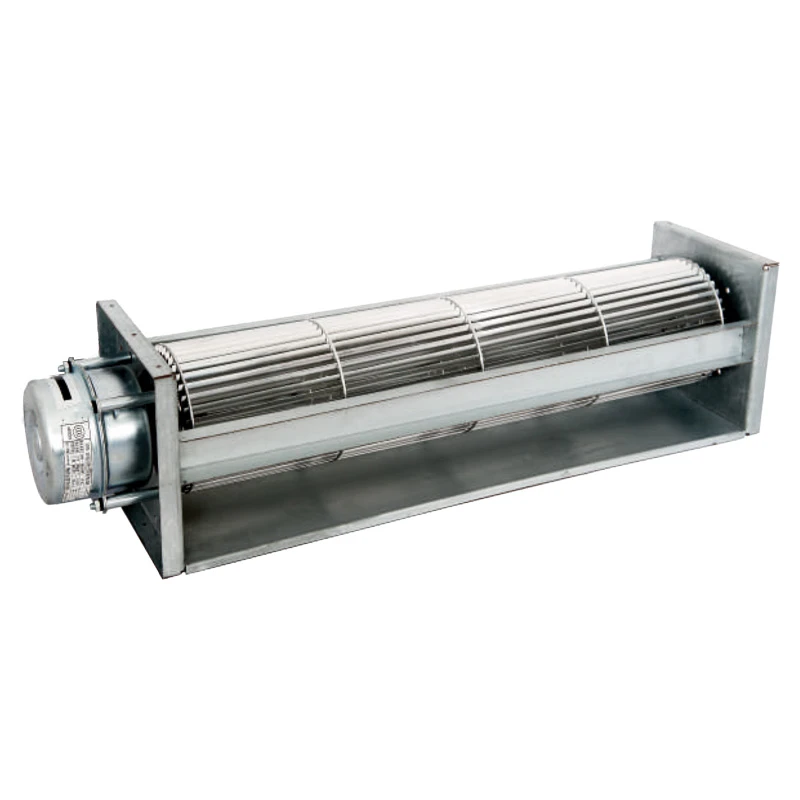

PBM Motor and Fan (Suzhou) Co., Ltd. is one of the most reliable manufacturers and suppliers of φ100x195mm ac cross flow fan pc100b2a195l in China. With abundant experience, we are committed to providing high quality customized products with competitive price. If you're going to buy bulk premium φ100x195mm ac cross flow fan pc100b2a195l, welcome to get pricelist from our factory.

PBM's AC cross flow fans have been widely adopted in diverse ventilation and cooling scenarios, including air curtains, air conditioning equipment, fan heaters, fireplaces, floor convectors, air purifiers, copiers, automated teller machines (ATMs), and server rack ventilation. With over 15 years of expertise in EC/AC motor and fan technology, PBM offers OEM custom cross flow fan services tailored to your assembly requirements. Whether you are developing kitchen appliances or cold chain logistics equipment, the PBM technical sales team provides full engineering support-from sample validation to mass production delivery.

General Characters

1-1	Rated Voltage	230 VAC
1-2	Frequency	50/60 Hz
1-3	Rated Speed	1350 RPM
1-4	Input Current	0.15 A
1-5	Input Power	22 W
1-6	Acoustical Noise	54 dBA
1-7	Life Expectancy	30,000 Hours At nominal supply voltage, full speed room temperature 20℃.
1-8	Direction of Rotation	Clockwise seen on rotor
1-9	Airflow	340 m³/H
1-10	Air Pressure	87 Pa

Mechanical Characters

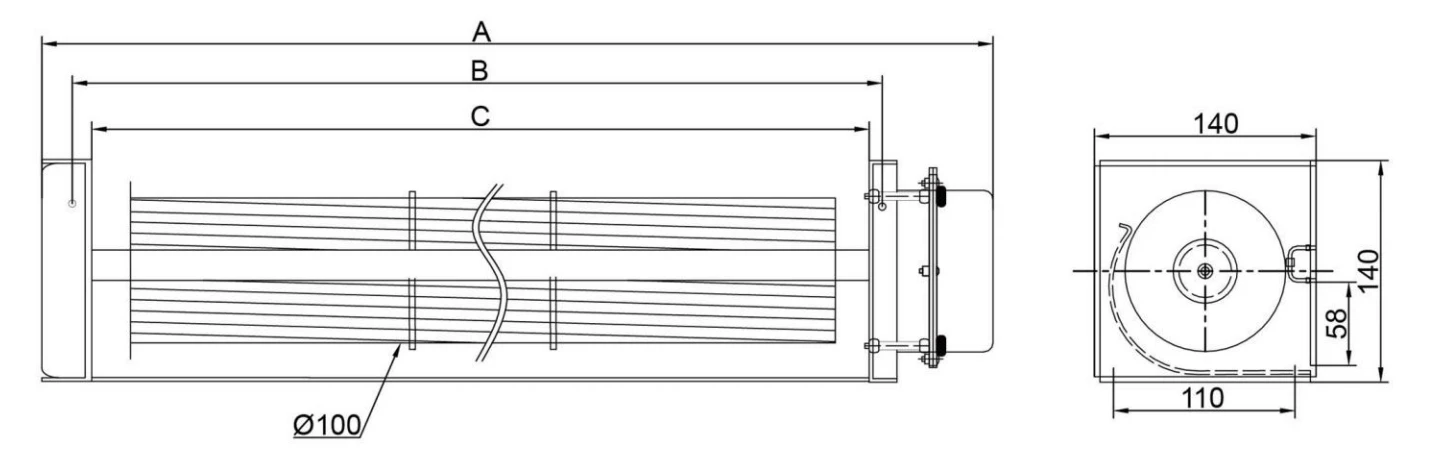

2-1	Dimension	see dimension drawing
2-2	Material of Impeller	Aluminum alloy
2-3	Number of Blades	28
2-4	Bearing System	NMB ball bearing
2-5	Lead Wire	Red, Black, AWG #20
