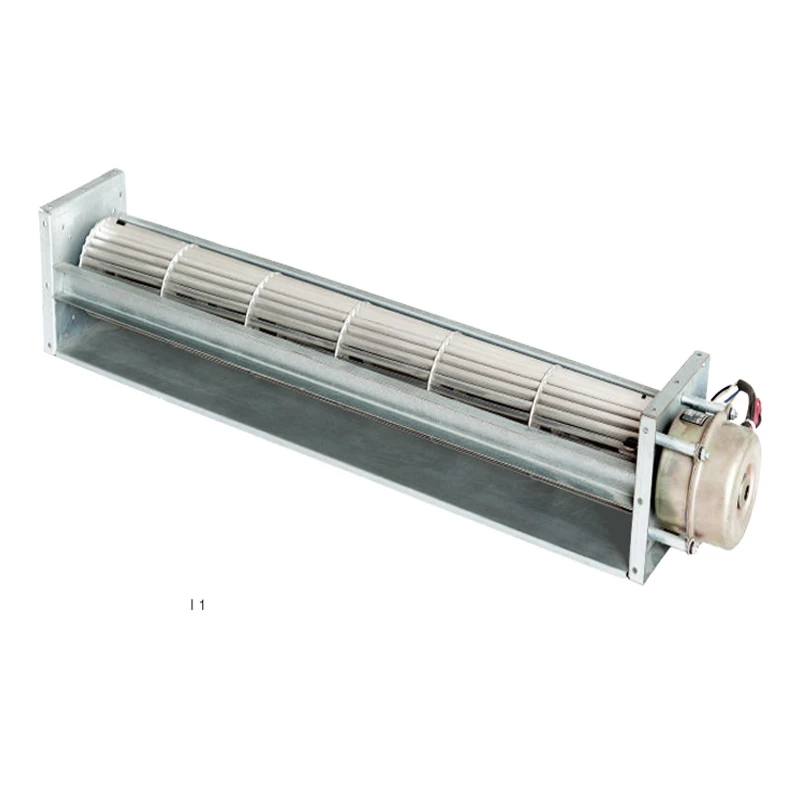

PBM Motor and Fan (Suzhou) Co., Ltd. is one of the most reliable manufacturers and suppliers of φ120x365mm ac cross flow fan pc120b2a365l in China. With abundant experience, we are committed to providing high quality customized products with competitive price. If you're going to buy bulk premium φ120x365mm ac cross flow fan pc120b2a365l, welcome to get pricelist from our factory.

This energy‑controllable AC cross flow fan for ice cream display cabinet offers an optional 0‑10V DC/PWM stepless speed control input, allowing system integrators to dynamically adjust fan speed according to real‑time heat load or ambient temperature. PBM provides full engineering support – from demand analysis and selection evaluation to prototype testing and mass production delivery – and fully accepts customized cross flow fan services to meet your specific cold chain application needs.

General Characters

1-1	Rated Voltage	230 VAC
1-2	Frequency	50/60 Hz
1-3	Rated Speed	1330 RPM
1-4	Input Current	0.40 A
1-5	Input Power	60 W
1-6	Acoustical Noise	62 dBA
1-7	Life Expectancy	30,000 Hours At nominal supply voltage, full speed room temperature 20℃.
1-8	Direction of Rotation	Clockwise seen on rotor

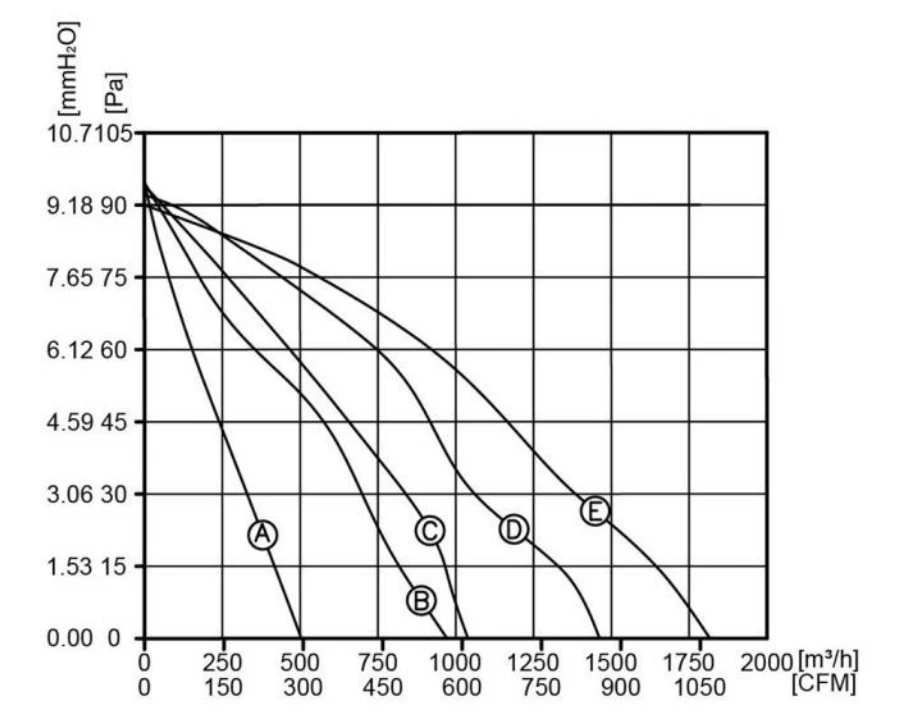

1-9	Airflow	968 m³/H
1-10	Air Pressure	95 Pa

Mechanical Characters

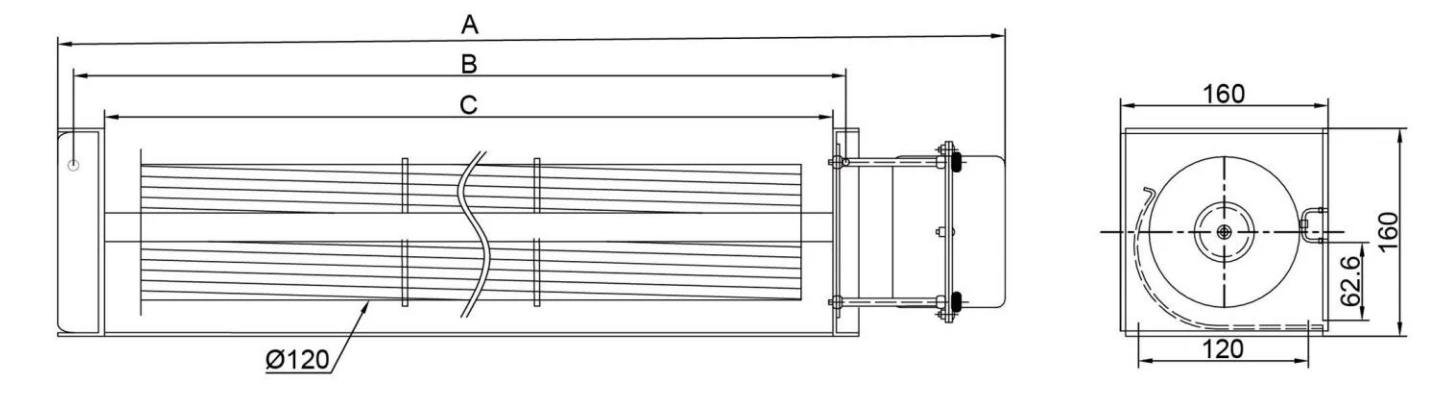

2-1	Dimension	see dimension drawing
2-2	Material of Impeller	Aluminum alloy
2-3	Number of Blades	28
2-4	Bearing System	NMB ball bearing
2-5	Lead Wire	Red, Black, AWG #20
