PBM Motor and Fan (Suzhou) Co., Ltd. is one of the most reliable manufacturers and suppliers of φ80x300mm ac cross flow fan pc80b2a300b in China. With abundant experience, we are committed to providing high quality customized products with competitive price. If you're going to buy bulk premium φ80x300mm ac cross flow fan pc80b2a300b, welcome to get pricelist from our factory.

With over 15 years of expertise in EC/AC motor and fan technology, PBM offers OEM custom cross flow fan services tailored to your assembly requirements. Whether you are developing large HVAC systems, cold chain logistics equipment, or commercial refrigerated display cabinets, the PBM technical sales team provides full engineering support – from sample validation to mass production delivery.

General Characters

1-1	Rated Voltage	230 VAC
1-2	Frequency	50/60 Hz
1-3	Rated Speed	2100 RPM
1-4	Input Current	0.32 A
1-5	Input Power	70 W
1-6	Acoustical Noise	58 dBA
1-7	Life Expectancy	30,000 Hours At nominal supply voltage, full speed room temperature 20℃.
1-8	Direction of Rotation	Clockwise seen on rotor

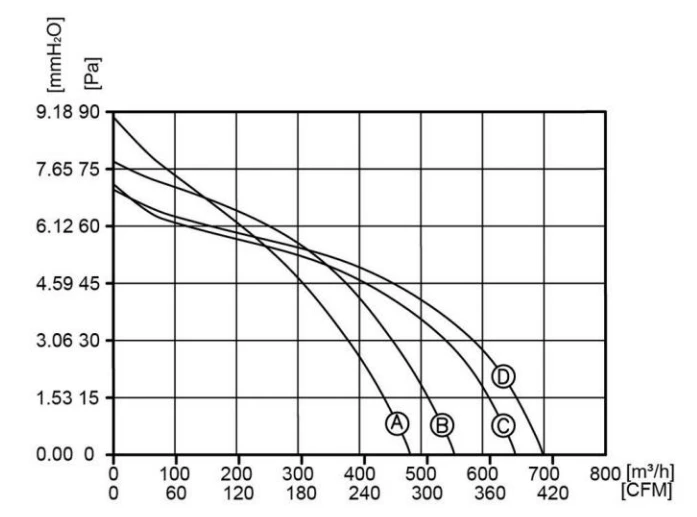

1-9	Airflow	562 m³/H
1-10	Air Pressure	78 Pa

Mechanical Characters

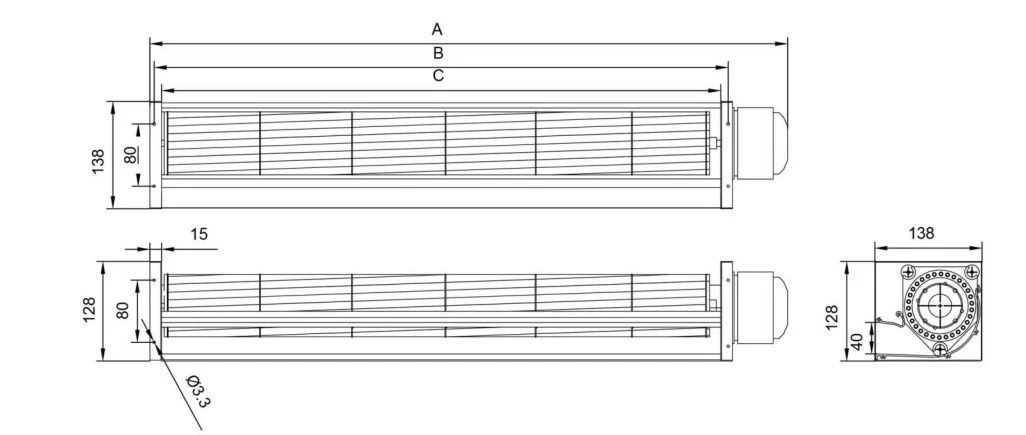

2-1	Dimension	see dimension drawing
2-2	Material of Impeller	Aluminum alloy
2-3	Number of Blades	28
2-4	Bearing System	NMB ball bearing
2-5	Lead Wire	Red, Black, AWG #20
