PBM Motor and Fan (Suzhou) Co., Ltd. is one of the most reliable manufacturers and suppliers of φ80x250mm ac cross flow fan pc80b2a250b in China. With abundant experience, we are committed to providing high quality customized products with competitive price. If you're going to buy bulk premium φ80x250mm ac cross flow fan pc80b2a250b, welcome to get pricelist from our factory.

*Industrial factory and commercial entrance air curtains – forming a high‑pressure air curtain to block outdoor hot/cold air intrusion,

*Large HVAC terminal systems,

*Refrigerated display cabinets and air curtain cabinets in cold chain logistics centers,

*Heating equipment such as fan heaters and large electric fireplaces,

*Industrial constant temperature and drying equipment.

This high static pressure cross flow fan for industrial HVAC and air curtain applications features a die‑cast aluminum alloy fan frame and a vibration‑damping rubber pad system. These design elements ensure structural stability and low vibration output under continuous high‑static‑pressure operation, significantly reducing the risk of loosening over long‑term equipment runtime.

As a solution provider with over 15 years of expertise in EC/AC motor and fan technology, PBM offers OEM custom cross flow fan services according to your assembly requirements. PBM is not just a fan manufacturer – we are your industrial HVAC and ventilation system solution partner.

General Characters

1-1	Rated Voltage	230 VAC
1-2	Frequency	50/60 Hz
1-3	Rated Speed	2300 RPM
1-4	Input Current	0.3 A
1-5	Input Power	65 W
1-6	Acoustical Noise	58 dBA
1-7	Life Expectancy	30,000 Hours At nominal supply voltage, full speed room temperature 20℃.
1-8	Direction of Rotation	Clockwise seen on rotor
1-9	Airflow	486 m³/H
1-10	Air Pressure	88 Pa

Mechanical Characters

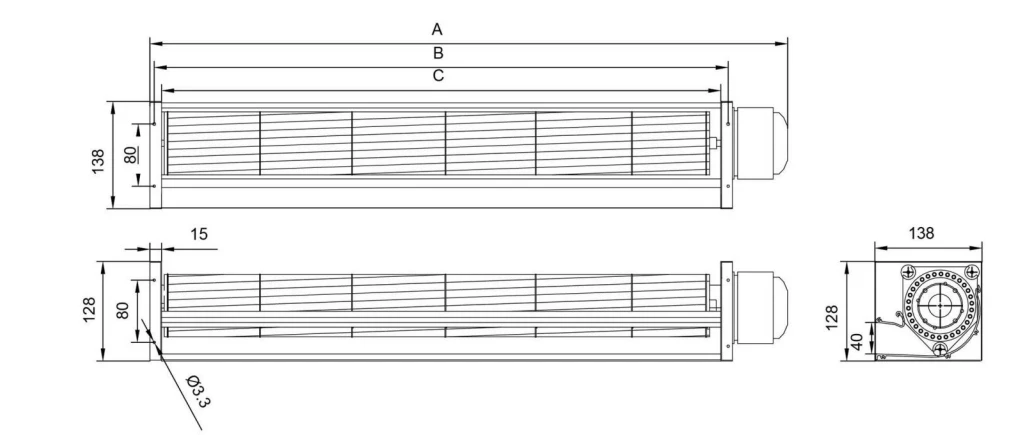

2-1	Dimension	see dimension drawing
2-2	Material of Impeller	Aluminum alloy
2-3	Number of Blades	28
2-4	Bearing System	NMB ball bearing
2-5	Lead Wire	Red, Black, AWG #20
