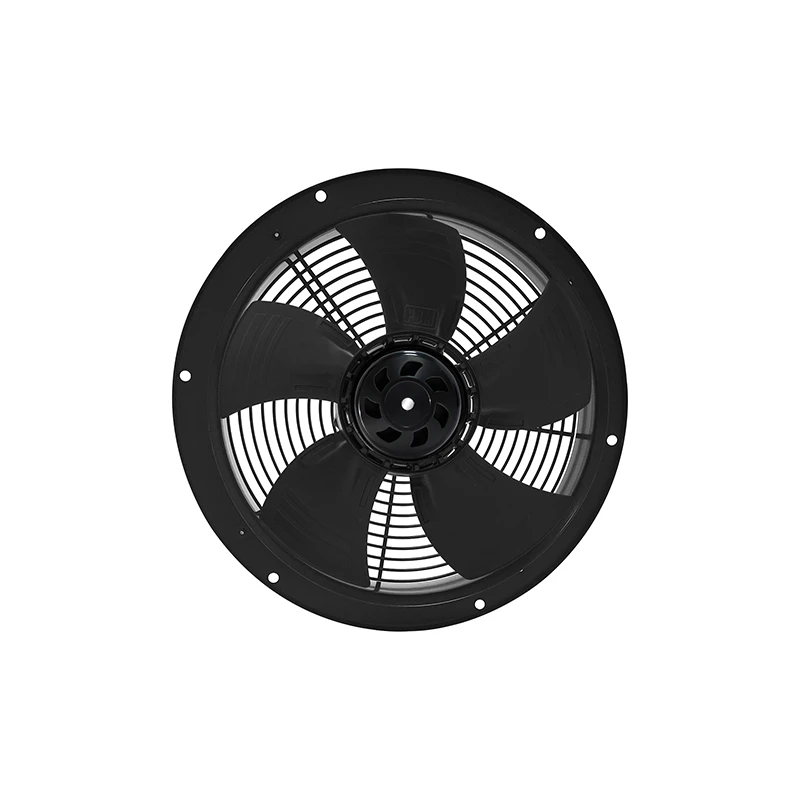

PBM Motor and Fan (Suzhou) Co., Ltd. is one of the most reliable manufacturers and suppliers of 300mm waterproof ip55 ec-dc axial fan pw3n300b24-rp0 in China. With abundant experience, we are committed to providing high quality customized products with competitive price. If you're going to buy bulk premium 300mm waterproof ip55 ec-dc axial fan pw3n300b24-rp0, welcome to get pricelist from our factory.
General Characters
|
1-1 |
Rated Voltage |
24 VDC |
|
1-2 |
Direction of Air Flow |
Axial |
|
1-3 |
Operating Voltage |
16~28 VDC |
|
1-4 |
Rated Speed | 1600 RPM |
|
1-5 |
Input Current |
3.8 A |
|
1-6 |
Input Power |
91.2 W |
|
1-7 |
Air Flow |
1910 M³/H |
|
1-8 |
Static Pressure |
124 Pa |
|
1-9 |
Acoustical Noise |
66.7 dB(A) |
|
1-10 |
Life Expectance |
50,000 Hours(L10) At 40℃ room, humidity 15%~65%RH. |
|
1-11 |
Insulation Class |
Class B |
|
1-13 |
Motor Protection |
Locked rotor protection Polarity protection Automatic restart capability |
|
1-14 |
Speed Control |
Control input 0~10VDC / PWM |
|
1-15 |
Protection Type |
IP55 |
|
1-17 |
Signal Output |
FG (Frequency Generator) |
Mechanical Characters
|
2-1 |
Dimension |
Ø368 mm X 106 mm (see dimension drawing) |
|
2-2 |
Material of Impeller |
PA66+25%GF |
|
2-3 |
Number of Blades |
5 |
|
2-4 |
Bearing System |
NMB ball bearing |
|
2-5 |
Lead Wire |
Red, Blue AWG20#, Yellow, White AWG20# |
Environmental Characters
|
3-1 |
Operating Temperature |
-25℃ to 60℃ |
|
3-2 |
Storage Temperature |
-40℃ to 75℃ |
|
3-3 |
Operating Humidity |
5% to 90% RH |
|
3-4 |
Storage Humidity |
5% to 95% RH |
Performance Curve
Testing Condition:
Input Voltage----Operating voltage (24VDC)
Temperature-----Room temperature
Humidity---------65%RH
Outline Drawing
Note:
1.Connection line: AC(3×AWG20#),DC(4×AWG24#)
2.AC: Brown=Live Line,Blue=Null Line,Green & Yellow=Protecting Earthing;
3.DC: Red=Voltage Output +10VDC, Yellow=0-10VDC/PWM, White=FG, Blue=GND;
