Operating at 230V AC rated voltage, this IP55 rated centrifugal blower for robot vacuums and industrial dust extraction fan with 640 Pa delivers reliable, energy‑saving performance with a fully sealed construction that withstands harsh environments. PBM's OEM customization services cover multiple dimensions – including custom lead wire configurations, compact size adaptations, and optional silencer accessories – tailored specifically for cleaning appliances, industrial dust collectors, air purifiers, and other specialized applications. Whether you need a high static pressure vacuum motor for floor scrubber, a custom centrifugal fan for HEPA‑filtered air purifiers, or a silencer‑equipped blower for quiet operation, PBM delivers precision‑engineered solutions for your unique requirements.
General Characters
|
1-1 |
Rated Voltage |
230 VAC |
|
1-2 |
Frequency |
50/60 Hz |
|
1-3 |
Operating Voltage |
184~270 VAC |
|
1-4 |
Rated Speed | 2500 RPM |
|
1-5 |
Input Current |
0.55 A |
|
1-6 |
Input Power |
72 W |
|
1-7 |
Air Flow |
205.98 CFM / 350 M³/H |
|
1-8 |
Static Pressure |
2.56 inH2O / 640 Pa |
|
1-9 |
Acoustical Noise |
61 dB(A) |
|
1-10 |
Life Expectance |
50,000 Hours(L10) At 40℃ room, humidity 15%~65%RH. |
|
1-11 |
Insulation Class |
Class B |
|
1-13 |
Motor Protection |
Locked rotor protection Polarity protection Automatic restart capability |
|
1-14 |
Speed Control |
Control input 0~10VDC / PWM |
|
1-15 |
Protection Type |
IP55 |
|
1-17 |
Signal Output |
FG (Frequency Generator) |
Mechanical Characters
|
2-1 |
Dimension |
172 mm X 181 mm X 115 mm (see dimension drawing) |
|
2-2 |
Material of Impeller |
Cold rolled steel sheet |
|
2-3 |
Number of Blades |
38 |
|
2-4 |
Bearing System |
NMB ball bearing |
|
2-5 |
Lead Wire |
AC (AWG20#),DC (AWG24#) |
Environmental Characters
|
3-1 |
Operating Temperature |
-25℃ to 60℃ |
|
3-2 |
Storage Temperature |
-40℃ to 75℃ |
|
3-3 |
Operating Humidity |
5% to 90% RH |
|
3-4 |
Storage Humidity |
5% to 95% RH |

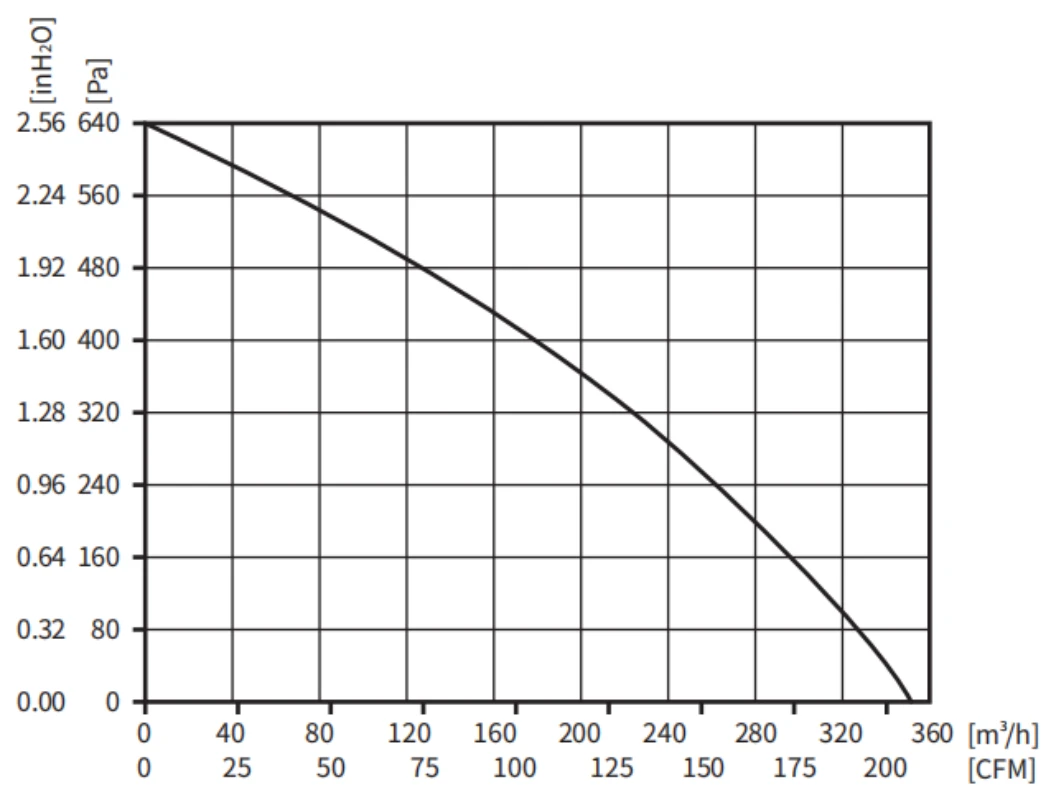

Performance Curve
Testing Condition:
Input Voltage----Operating voltage (230VAC/50Hz)
Temperature-----Room temperature
Humidity---------65%RH

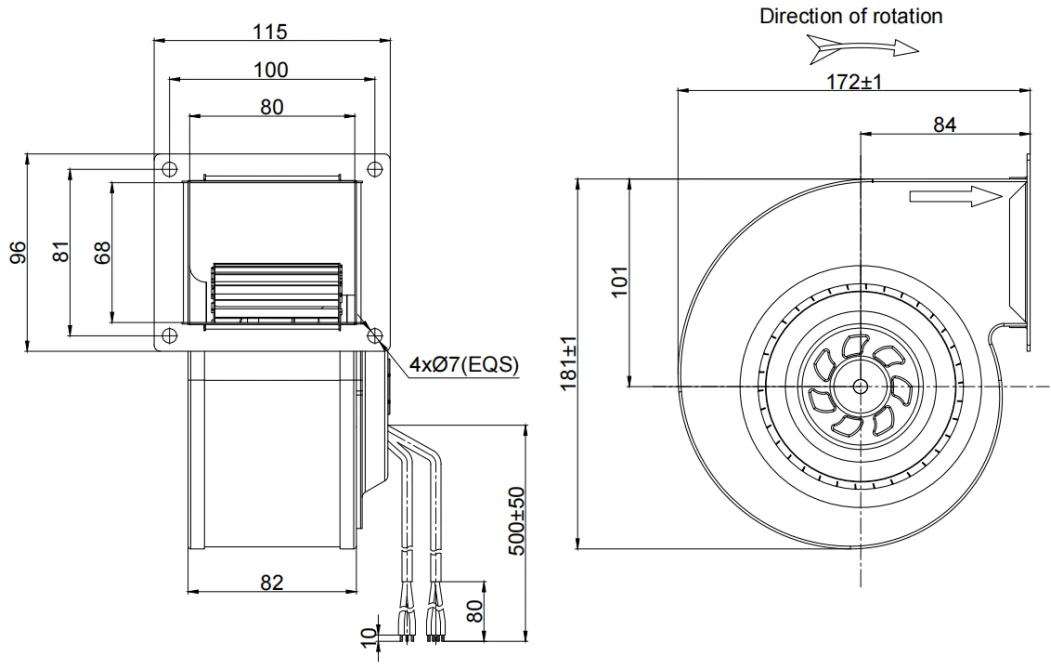

Outline Drawing
Note:
1.Connection line: AC(3×AWG20#),DC(4×AWG24#)
2.AC: Brown=Live Line,Blue=Null Line,Green & Yellow=Protecting Earthing;
3.DC: Red=Voltage Output +10VDC, Yellow=0-10VDC/PWM, White=FG, Blue=GND;
