PBM Motor and Fan (Suzhou) Co., Ltd. is one of the most reliable manufacturers and suppliers of 160mm waterproof ip55 ec-ac single inlet blower ps3n160b2e-tp0 in China. With abundant experience, we are committed to providing high quality customized products with competitive price. If you're going to buy bulk premium 160mm waterproof ip55 ec-ac single inlet blower ps3n160b2e-tp0, welcome to get pricelist from our factory.
Intelligent airflow systems and premium EC/DC fans are PBM's areas of expertise. The fans enable interaction with building automation systems for remote monitoring by supporting speed signal output (FG). We provide OEM customization services, such as silencer accessories, improved protection, corrosion-resistant surface treatments, and AC three-pin/DC four-pin wiring. PBM is your go-to expert for duct-type air conditioning, ventilation, and air purification services.
General Characters
|
1-1 |
Rated Voltage |
230 VAC |
|
1-2 |
Frequency |
50/60 Hz |
|
1-3 |
Operating Voltage |
184~270 VAC |
|
1-4 |
Rated Speed | 2000 RPM |
|
1-5 |
Input Current |
1.2 A |
|
1-6 |
Input Power |
170 W |
|
1-7 |
Air Flow |
388.41 CFM / 660 M³/H |
|
1-8 |
Static Pressure |
3.80 inH₂O / 950 Pa |
|
1-9 |
Acoustical Noise |
67 dB(A) |
|
1-10 |
Life Expectancy |
50,000 Hours (L10) At 40℃ room, humidity 15%~65%RH. |
|
1-11 |
Insulation Class |
Class B |
|
1-13 |
Motor Protection |
Locked rotor protection Polarity protection Automatic restart capability |
|
1-14 |
Speed Control |
Control input 0~10VDC / PWM |
|
1-15 |
Protection Type |
IP55 |
|
1-17 |
Signal Output |
FG (Frequency Generator) |
Mechanical Characters
|
2-1 |
Dimension |
220 mm X 245 mm X 130 mm (see dimension drawing) |
|
2-2 |
Material of Impeller |
PA66+GF |
|
2-3 |
Number of Blades |
38 |
|
2-4 |
Bearing System |
NMB ball bearing |
|
2-5 |
Lead Wire |
AC (AWG20#), DC (AWG24#) |
Environmental Characters
|
3-1 |
Operating Temperature |
-25℃ to 60℃ |
|
3-2 |
Storage Temperature |
-40℃ to 75℃ |
|
3-3 |
Operating Humidity |
5% to 90% RH |
|
3-4 |
Storage Humidity |
5% to 95% RH |

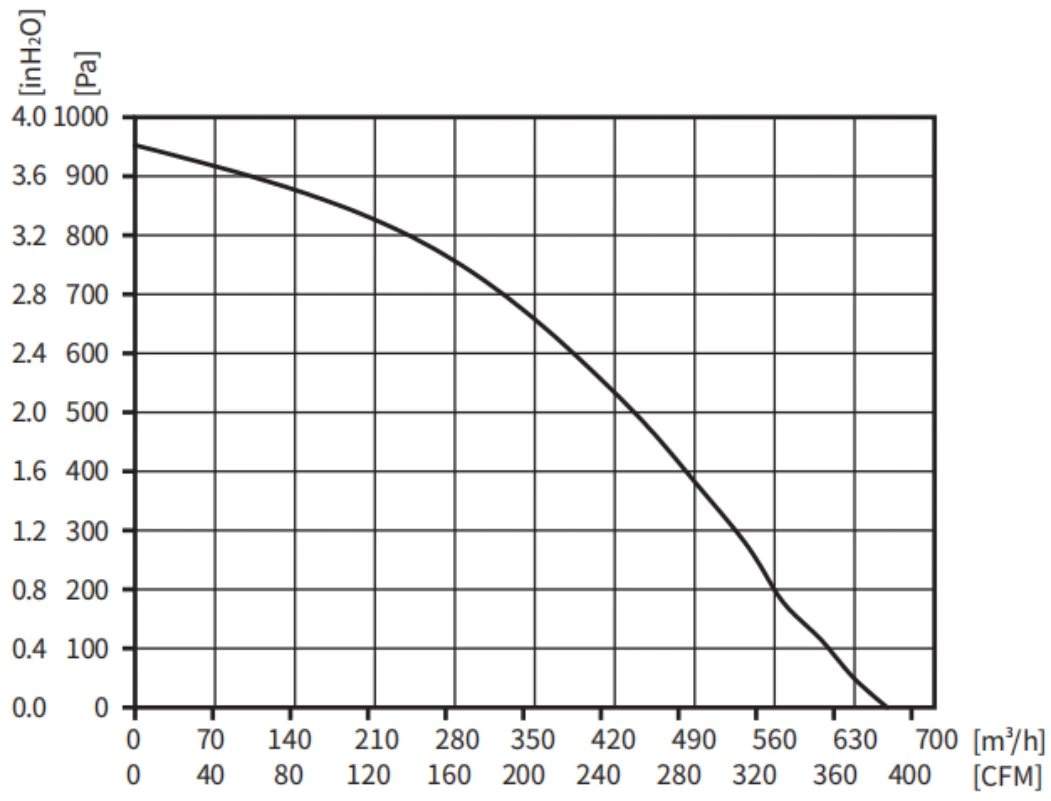

Performance Curve
Testing Condition:
Input Voltage----Operating voltage (230VAC/50Hz)
Temperature-----Room temperature
Humidity---------65%RH

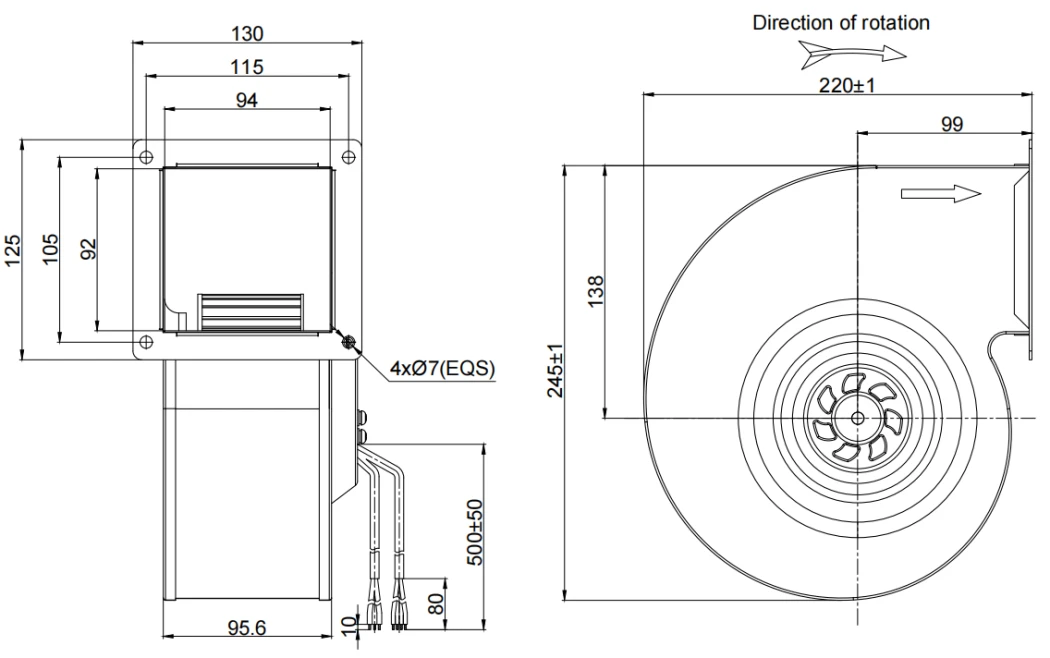

Outline Drawing
Note:
1.Connection line: AC(3×AWG20#),DC(4×AWG24#)
2.AC: Brown=Live Line,Blue=Null Line,Green & Yellow=Protecting Earthing;
3.DC: Red=Voltage Output +10VDC, Yellow=0-10VDC/PWM, White=FG, Blue=GND;
