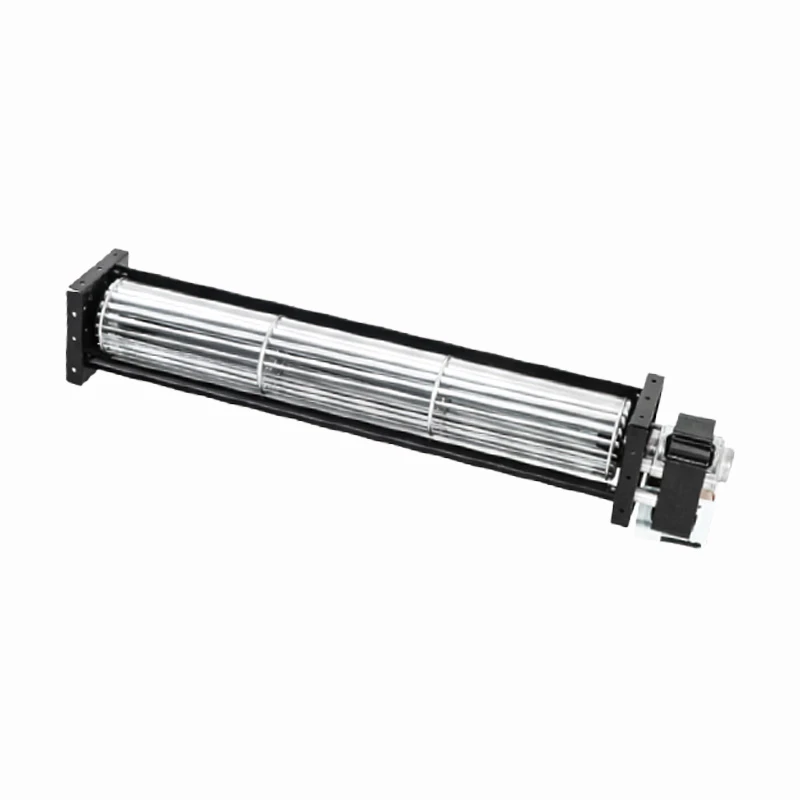

PBM Motor and Fan (Suzhou) Co., Ltd. is one of the most reliable manufacturers and suppliers of φ43x98mm ac cross flow fan pc43b2a98c in China. With abundant experience, we are committed to providing high quality customized products with competitive price. If you're going to buy bulk premium φ43x98mm ac cross flow fan pc43b2a98c, welcome to get pricelist from our factory.
Unlike traditional axial fans that provide point‑to‑point airflow, this AC cross flow fan generates a continuous and stable air curtain along the full 98mm rotor length. This design effectively:
*Isolates outdoor insects in commercial entrances,
*Balances indoor and outdoor temperature differences,
*Provides multi‑layer shelf cold air coverage without dead zones in freezer cabinets.
As a result, it enables flattened and standardized integration of the fan into equipment housings. This long cross flow fan for refrigerated display case cooling is ideal for supermarkets, convenience stores, and cold chain terminals.
With over 15 years of industry experience, PBM ensures that every AC cross flow fan complies with CE standards, helping your HVAC equipment or refrigeration terminal enter global markets smoothly. We offer flexible customized cross flow fan services – including motor type, lead wire length, bearing system, and mounting brackets.
Whether you are developing an air curtain for commercial centers or a precision incubator for laboratory use, PBM is more than a component supplier – we are your core technology partner for optimizing finished product ventilation performance.
General Characters
|
1-1 |
Rated Voltage |
230 VDC |
|
1-2 |
Frequency |
50 Hz |
|
1-3 |
Rated Speed |
2600 RPM |
|
1-4 |
Input Current |
0.12 A |
|
1-5 |
Input Power |
14.0 W |
|
1-6 |
Air Flow |
41 m3/H |
|
1-7 |
Static Pressure |
18 Pa |
|
1-8 |
Acoustical Noise |
37 dB(A) |
|
1-9 |
Life Expectancy |
50,000 Hours (L10) At 40℃ room, humidity 15%~65%RH. |
|
1-10 |
Insulation Class |
Class B |
|
1-11 |
Motor Protection |
Locked rotor protection Polarity protection Automatic restart capability |
|
1-12 |
Speed Control |
Control input 0~10VDC / PWM |
|
1-13 |
Protection Type |
IP44 |
|
1-14 |
Signal Output |
FG (Frequency Generator) |
Environmental Characters
|
3-1 |
Operating Temperature |
-25℃ to 70℃ |
|
3-2 |
Storage Temperature |
-40℃ to 80℃ |
|
3-3 |
Operating Humidity |
5% to 90% RH |
|
3-4 |
Storage Humidity |
5% to 95% RH |

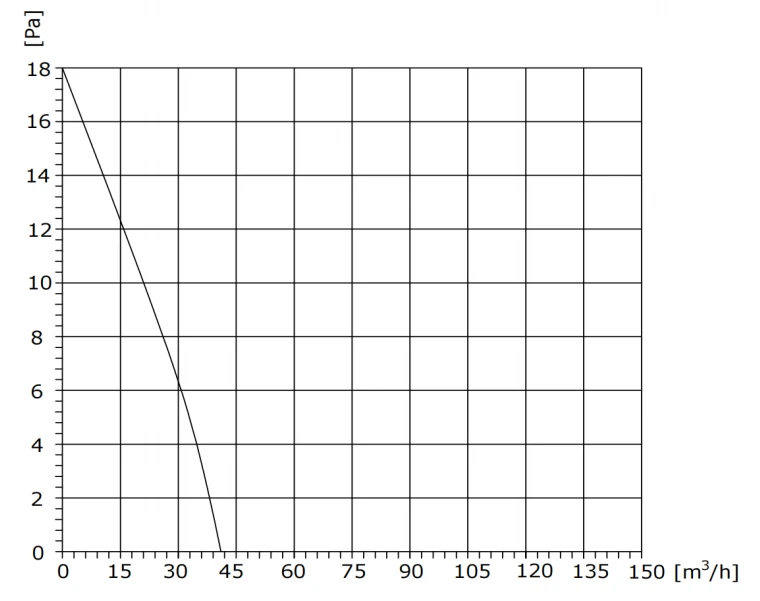

Performance Curve
Input Voltage----Operating voltage (230 VDC)
Temperature-----Room temperature
Humidity---------65%RH
Test distance-----1m

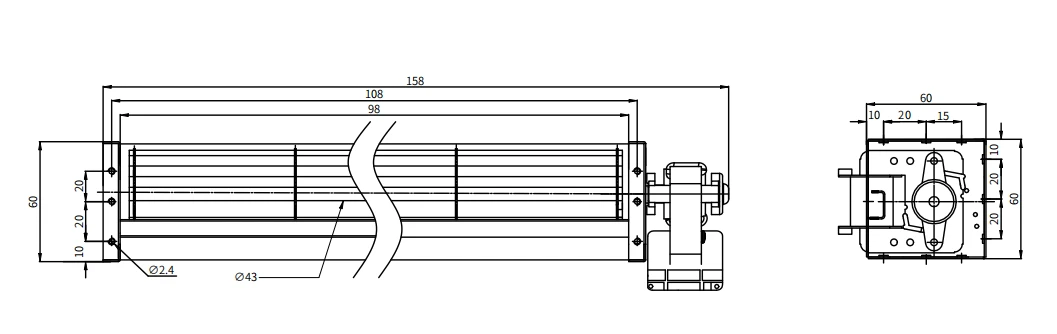

Outline Drawing
