In the new energy sector, the PB3N133B48H is a 48V dc backward curved centrifugal fan made especially for power electronic equipment heat dissipation. It provides 0~10V/PWM stepless speed control and operates on a secure 48V DC power source. This backward fan easily overcomes the resistance of heat sink fins and air ducts thanks to its large air volume of 360 m³/h and high static pressure of 382 Pa. This ensures that essential components like IGBTs and inverter modules are always at a suitable operating temperature, and the entire unit uses only 33.6 W. It is ideal for difficult situations like outdoor energy storage containers, charging heaps, and solar inverters because of its broad working temperature range of -25°C to 60°C and IP44 protection grade. It is the perfect option for effective heat dissipation of modern energy equipment because of its 50,000-hour lifespan and integrated stall protection feature, which completely ensure long-term dependability in unattended applications. In the new energy sector, the PB3N133B48H is a 48V dc backward curved centrifugal fan made especially for power electronic equipment heat dissipation. It provides 0~10V/PWM stepless speed control and operates on a secure 48V DC power source. This backward fans easily overcomes the resistance of heat sink fins and air ducts thanks to its large air volume of 360 m³/h and high static pressure of 382 Pa. This ensures that essential components like IGBTs and inverter modules are always at a suitable operating temperature, and the entire unit uses only 33.6 W. It is ideal for difficult situations like outdoor energy storage containers, charging heaps, and solar inverters because of its broad working temperature range of -25°C to 60°C and IP44 protection grade. It is the perfect option for effective heat dissipation of modern energy equipment because of its 50,000-hour lifespan and integrated stall protection feature, which completely ensure long-term dependability in unattended applications.
General Characters
|
1-1 |
Rated Voltage |
48 VDC |
|
1-2 |
Operating Voltage |
36~57 VDC |
|
1-3 |
Rated Speed |
3900 RPM |
|
1-4 |
Input Current |
0.7 A |
|
1-5 |
Input Power |
33.6 W |
|
1-6 |
Air Flow |
211.86 CFM / 360 M³/H |
|
1-7 |
Static Pressure |
1.53 inH₂O / 382 Pa |
|
1-8 |
Acoustical Noise |
63 dB(A) |
|
1-9 |
Life Expectancy |
50,000 Hours (L10) At 40℃ room, humidity 15%~65%RH. |
|
1-10 |
Insulation Class |
Class B |
|
1-11 |
Motor Protection |
Locked rotor protection Polarity protection Automatic restart capability |
|
1-13 |
Speed Control |
Control input 0~10VDC / PWM |
|
1-14 |
Protection Type |
IP44 |
|
1-15 |
Signal Output |
FG (Frequency Generator) |
Mechanical Characters
|
2-1 |
Dimension |
Ø133 mm X 91 mm (see dimension drawing) |
|
2-2 |
Material of Impeller |
PA6+GF |
|
2-3 |
Number of Blades |
7 |
|
2-4 |
Bearing System |
NMB ball bearing |
|
2-5 |
Lead Wire |
DC (AWG20 #) |
Environmental Characters
|
3-1 |
Operating Temperature |
-25℃ to 60℃ |
|
3-2 |
Storage Temperature |
-40℃ to 75℃ |
|
3-3 |
Operating Humidity |
5% to 90% RH |
|
3-4 |
Storage Humidity |
5% to 95% RH |

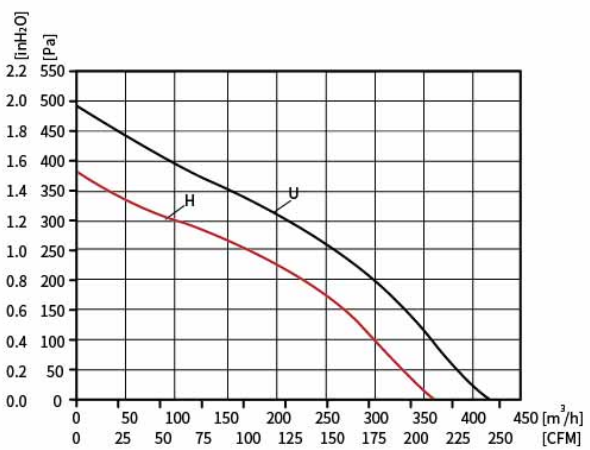

Performance Curve
Testing Condition:
Input Voltage----Operating voltage (48VDC)
Temperature-----Room temperature
Humidity---------65%RH
Outline Drawing
Note:
1.Connection line:DC(4×AWG20#)
2.DC: Red=Voltage Intput 48VDC, Yellow=0-10VDC/PWM, White=FG, Blue=GND;
