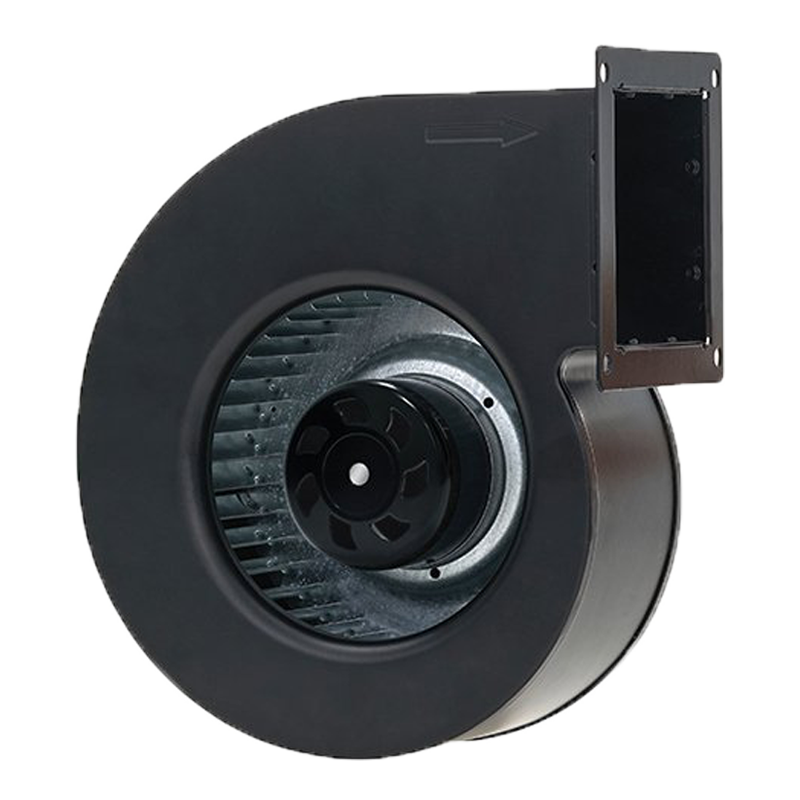

120mm EC-DC Waterproof IP55 Single Inlet Blower

Please feel free to contact us Inquire

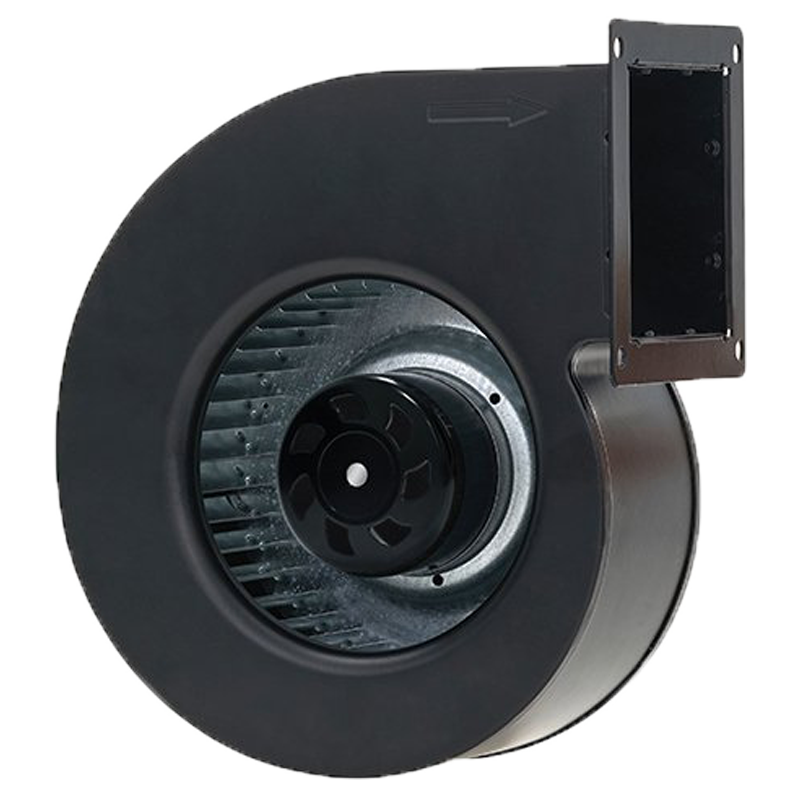

140mm EC-DC Waterproof IP55 Single Inlet Blower

Please feel free to contact us Inquire

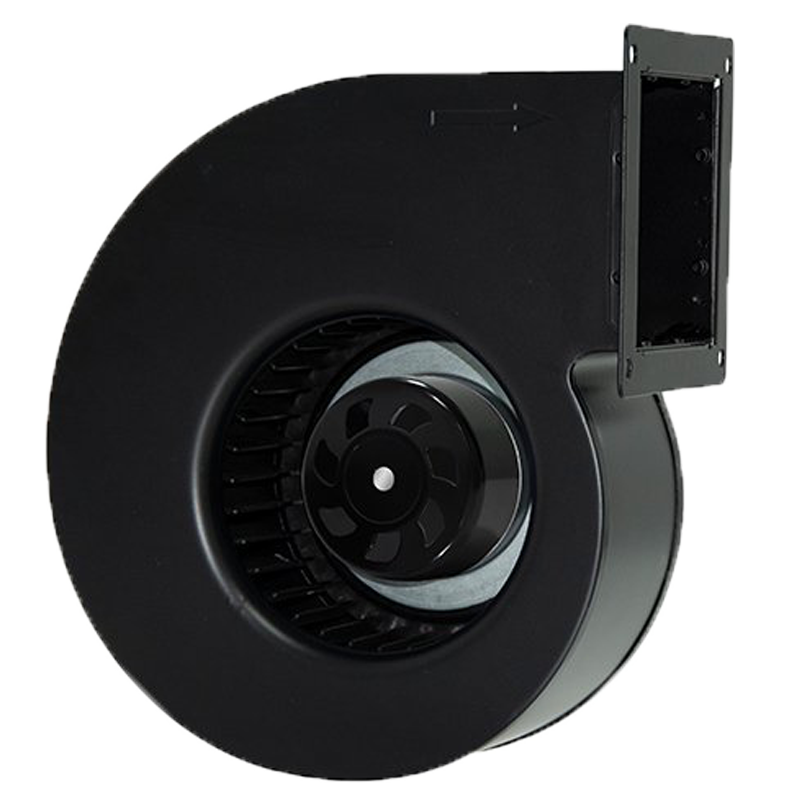

160mm EC-DC Waterproof IP55 Single Inlet Blower

Please feel free to contact us Inquire

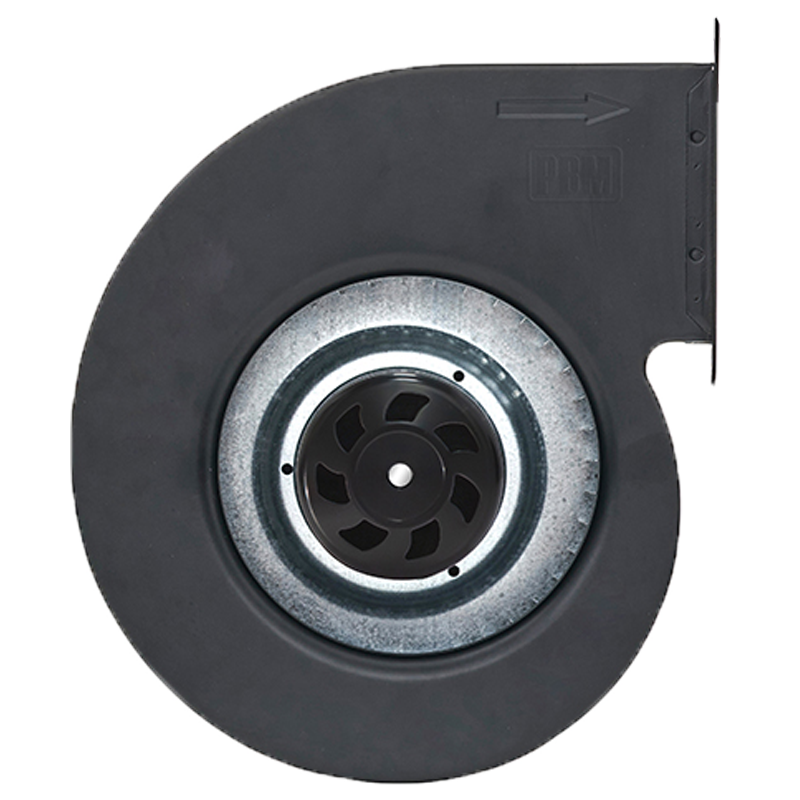

200mm Waterproof IP55 EC-AC Single Inlet Blower

Please feel free to contact us Inquire

Single Inlet Blowers Technical Features Overview

DC Blower Single Inlet D(120-180)-IP55

EC Blower Single Inlet D(120-200)-IP55

Application

Automobile Industry Fan

High-performance cooling & ventilation for auto industry. Heat-resistant, vibration-proof, long-life for engine bays, AC systems, and charging stations.

Disinfection Machines

Stable airflow for disinfection machines. Corrosion-resistant, low noise, high pressure, ensuring efficient disinfectant dispersion and long-term reliability.

IT and Electronic Industry

Precision cooling for IT and electronics. High static pressure, low vibration, clean airflow for servers, storage, and cleanroom operations.

Parameter summary table

Please click on the model in the corresponding table to go to the product details page.

DOWNLOAD

Model	Rated Voltage	Rated Power	Rated Speed	Air Flow	Air Pressure	EC/DC/AC	Inquire
PS3N120B2E-RZ0	230 VAC	72 W	2500 RPM	350 M³/H	640 Pa	EC	Inquire
PS3N120B24-RZ0	24 VDC	67.2 W	2400 RPM	350 M³/H	640 Pa	DC	Inquire
PS3N120B48-RZ0	48 VDC	67.2 W	2400 RPM	350 M³/H	640 Pa	DC	Inquire
PS3N140B2E-RP0	230 VAC	85 W	1800 RPM	500 M³/H	850 Pa	EC	Inquire
PS3N140B2E-RZ0	230 VAC	85 W	1700 RPM	450 M³/H	750 Pa	EC	Inquire
PS3N140B2E-TP0	230 VAC	115 W	2000 RPM	650 M³/H	950 Pa	EC	Inquire
PS3N140B2E-TZ0	230 VAC	115 W	2000 RPM	640 M³/H	920 Pa	EC	Inquire
PS3N140B24-RP0	24 VDC	52.8 W	1600 RPM	500 M³/H	850 Pa	DC	Inquire
PS3N140B24-RZ0	24 VDC	57.6 W	1600 RPM	450 M³/H	760 Pa	DC	Inquire
PS3N140B48-RP0	48 VDC	52.8 W	1600 RPM	500 M³/H	850 Pa	DC	Inquire
PS3N140B48-RZ0	48 VDC	57.6 W	1600 RPM	450 M³/H	760 Pa	DC	Inquire
PS3N160B2E-MP0	230 VAC	220 W	2300 RPM	770 M³/H	900 Pa	EC	Inquire
PS3N160B2E-MZ0	230 VAC	220 W	2300 RPM	800 M³/H	820 Pa	EC	Inquire
PS3N160B2E-TP0	230 VAC	170 W	2000 RPM	660 M³/H	950 Pa	EC	Inquire
PS3N160B2E-TZ0	230 VAC	155 W	1900 RPM	640 M³/H	910 Pa	EC	Inquire
PS3N160B24-TP0	24 VDC	163.2 W	2000 RPM	620 M³/H	940 Pa	DC	Inquire
PS3N160B24-TZ0	24 VDC	163.2 W	2000 RPM	600 M³/H	900 Pa	DC	Inquire
PS3N160B48-TP0	48 VDC	163.2 W	2000 RPM	620 M³/H	940 Pa	DC	Inquire
PS3N160B48-TZ0	48 VDC	163.2 W	2000 RPM	600 M³/H	900 Pa	DC	Inquire
PS3N180B2E-MZ0	230 VAC	220 W	1800 RPM	900 M³/H	800 Pa	EC	Inquire
PS3N180B2E-MZ1	230 VAC	220 W	2100 RPM	752 M³/H	610 Pa	EC	Inquire
PS3N180B2E-TZ0	230 VAC	170 W	1550 RPM	750 M³/H	900 Pa	EC	Inquire
PS3N180B24-TZ0	24 VDC	124.8 W	1350 RPM	740 M³/H	900 Pa	DC	Inquire
PS3N180B48-TZ0	48 VDC	124.8 W	1350 RPM	740 M³/H	900 Pa	DC	Inquire
PS3N200B2E-MZ0	230 VAC	220 W	2200 RPM	850 M³/H	600 Pa	EC	Inquire

FAQ

How do I choose the right IP55 single inlet blower?
+
When selecting an IP55 single inlet blower, important factors include:
- Required airflow (CFM or m³/h)
- Static pressure requirements
- Operating environment
- Voltage and frequency
- Noise level requirements
- Installation dimensions
- Motor type (AC or EC motor)
- Temperature and humidity conditions
Reviewing the blower performance curve helps ensure proper system matching and efficient operation.
What are the advantages of an IP55 single inlet blower?
+
IP55 single inlet blowers offer several benefits, including:
- Reliable operation in harsh environments
- Stable airflow and static pressure performance
- Compact design for equipment integration
- Lower maintenance requirements
- Long service life
- Moisture and dust resistance
These blowers are widely used in industrial systems requiring efficient and protected airflow solutions.
Can IP55 single inlet blowers be customized?
+
Yes. Many manufacturers provide customized IP55 single inlet blower solutions for OEM and industrial projects. Common customization options include:
- Airflow and pressure specifications
- Fan dimensions
- Motor configuration
- Voltage and frequency
- Speed control options
- Mounting structures
- Corrosion-resistant materials
- Noise reduction solutions
Customized blowers are commonly used in industrial machinery, ventilation systems, and specialized equipment.
Where are IP55 single inlet blowers commonly used?
+
IP55 single inlet blowers are widely used in:
- HVAC systems
- Air handling units (AHU)
- Industrial ventilation equipment
- Air purification systems
- Commercial kitchen ventilation
- Electronic equipment cooling
- Agricultural ventilation
- Machinery cooling systems
Their environmental protection and compact structure make them suitable for demanding industrial applications.
What is the difference between a single inlet blower and a dual inlet blower?
+
A single inlet blower draws air from one side of the impeller, while a dual inlet blower draws air from both sides. Single inlet blowers are typically preferred when:
- Installation space is limited
- Moderate airflow is required
- Compact equipment integration is important
- Simpler duct connections are needed
Dual inlet blowers are often used in larger HVAC systems requiring higher airflow volume.
