Duct Fan Technical Features Overview

PBM's duct fan drives the wind blade to rotate at high speed, forming a stable airflow power, realizing directional gas transmission, efficient exhaust gas emission or local airflow enhancement. PBM integrates fluid mechanics optimization and intelligent control technology in the fan design to ensure that the equipment accurately matches the flow and pressure requirements of different scenarios under the conditions of low energy consumption and low noise, providing "breathing power" for industrial production and building environment.

According to the requirements of different scenarios, PBM provides four categories of pipeline fan products to meet the diversified applications:Inline Fan、Duct Fan、Split fan、Silent duct fan.

AC/DC powered centrifugal fans with intelligent EC motors feature built-in or external RS485 remote control, supporting integration into IoE, IoT, smart home, and Industry 4.0 systems. These solutions advance Carbon Neutrality goals by reducing carbon footprints.

Optional PFC (λ>96%) ensures grid stability compliance where required. All models meet ErP2015 Directive (EU 327/2011) for eco-design of 125W-500kW motor-driven fans.

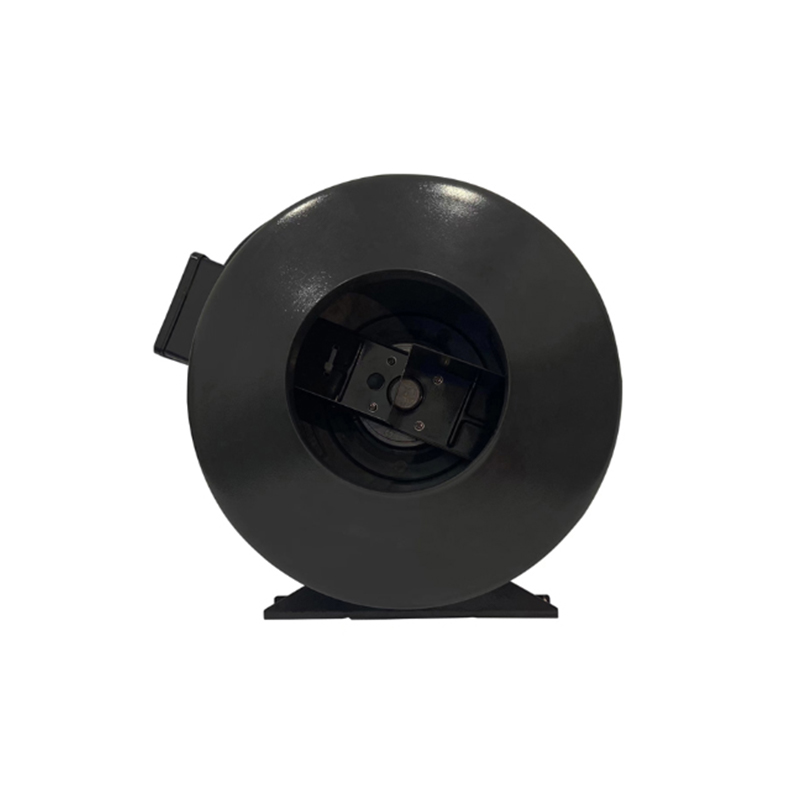

EC Duct Fan(100-315)

Application

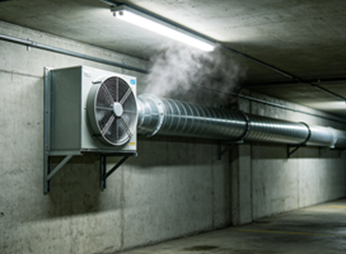

Basement Ventilation System

Quiet, efficient cooling for household appliances. Low noise, long-life, safe and reliable for ACs, refrigerators, purifiers, and kitchen equipment.

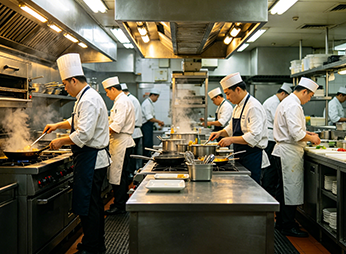

Commercial KitchenVentilation

Precision cooling for IT and electronics. High static pressure, low vibration, clean airflow for servers, storage, and cleanroom operations.

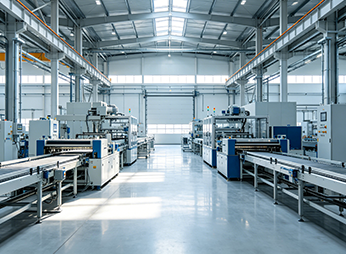

Mechanical Equipment

Silent, comfortable airflow for seat ventilation. Low noise, high efficiency, slim design, enhancing driving comfort and keeping seats dry.

Parameter summary table

Please click on the model in the corresponding table to go to the product details page.

DOWNLOAD

Model	Rated Voltage	Rated Power	Rated Speed	Air Flow	Air Pressure	EC/DC/AC	Inquire
PY3N315B2E-TZ0	230 VAC	227 W	2800 RPM	2000 M³/H	800 Pa	EC	Inquire
PY3N315B1E-TZ0	115 VAC	227 W	2800 RPM	2000 M³/H	800 Pa	EC	Inquire
PY3N250B2E-TZ0	230 VAC	168 W	2800 RPM	1287 M³/H	1000 Pa	EC	Inquire
PY3N250B1E-TZ0	115 VAC	168 W	2800 RPM	1287 M³/H	1000 Pa	EC	Inquire
PY3N200B2E-TZ0	230 VAC	168 W	2800 RPM	1300 M³/H	1000 Pa	EC	Inquire
PY3N200B1E-TZ0	115 VAC	168 W	2800 RPM	1300 M³/H	1000 Pa	EC	Inquire
PY3N150B2E-TZ0	230 VAC	165 W	3400 RPM	1108 M³/H	770 Pa	EC	Inquire
PY3N150B1E-TZ0	115 VAC	165 W	3400 RPM	1108 M³/H	770 Pa	EC	Inquire
PY3N125B2E-SZ0	230 VAC	85 W	3300 RPM	603 M³/H	552 Pa	EC	Inquire
PY3N125B1E-SZ0	115 VAC	85 W	3300 RPM	603 M³/H	552 Pa	EC	Inquire
PY3N100B2E-SZ0	230 VAC	85 W	3400 RPM	401 M³/H	496 Pa	EC	Inquire
PY3N100B1E-SZ0	115 VAC	85 W	3400 RPM	401 M³/H	496 Pa	EC	Inquire
PQ3N100B2E-RZ0	230 VAC	85 W	3300 RPM	315 M³/H	900 Pa	EC	Inquire
PQ3N125B2E-RZ0	230 VAC	85 W	3400 RPM	375 M³/H	820 Pa	EC	Inquire
PQ3N150B2E-RZ0	230 VAC	85 W	2650 RPM	680 M³/H	590 Pa	EC	Inquire
PQ3N160B2E-RZ0	230 VAC	85 W	2750 RPM	660 M³/H	505 Pa	EC	Inquire
PQ3N200B2E-TZ0	230 VAC	170 W	2700 RPM	1180 M³/H	1000 Pa	EC	Inquire
PQ3N250B2E-TZ0	230 VAC	170 W	2700 RPM	1200 M³/H	1000 Pa	EC	Inquire
PQ3N315B2E-MZ0	230 VAC	220 W	2700 RPM	1780 M³/H	770 Pa	EC	Inquire

FAQ

How do I choose the right duct fan?
+
When selecting a duct fan, buyers should evaluate:
- Required airflow (CFM or m³/h)
- Static pressure requirements
- Duct size and length
- Installation environment
- Noise limitations
- AC or EC motor options
- Energy efficiency goals
- Operating temperature and humidity
Reviewing the fan performance curve is essential for accurate system matching.
What is the purpose of a duct fan?
+
The primary purpose of a duct fan is to improve airflow efficiency within a ventilation system. Duct fans help:
- Increase air circulation
- Remove stale air and odors
- Improve indoor air quality
- Reduce heat and humidity buildup
- Support HVAC system performance
- Enhance ventilation efficiency in long duct systems
They are especially useful in spaces with insufficient natural airflow.
Can duct fans be customized?
+
Yes. Many manufacturers offer customized duct fan solutions for OEM and industrial applications. Customization options may include:
- Fan size and airflow performance
- AC or EC motor configuration
- Voltage and frequency
- Speed control systems
- IP protection ratings
- Corrosion-resistant materials
- Noise reduction optimization
- Mounting structures
Customized duct fans are widely used in specialized ventilation and air handling systems.
Where are duct fans commonly used?
+
Duct fans are widely used in:
- HVAC systems
- Commercial buildings
- Industrial ventilation systems
- Bathrooms and kitchens
- Warehouses
- Grow rooms and greenhouses
- Data centers
- Office buildings
- Air purification systems
They are commonly installed where enhanced airflow and ventilation control are required.
What is the difference between an inline fan and a duct fan?
+
An inline fan is a type of duct fan installed directly inside the duct system. In many applications, the terms "inline fan" and "duct fan" are used interchangeably.

However, “duct fan” is a broader category that may include:
- Inline duct fans
- Mixed flow duct fans
- Centrifugal duct fans
- Axial duct fans
Different duct fan types are selected based on airflow and static pressure requirements.
