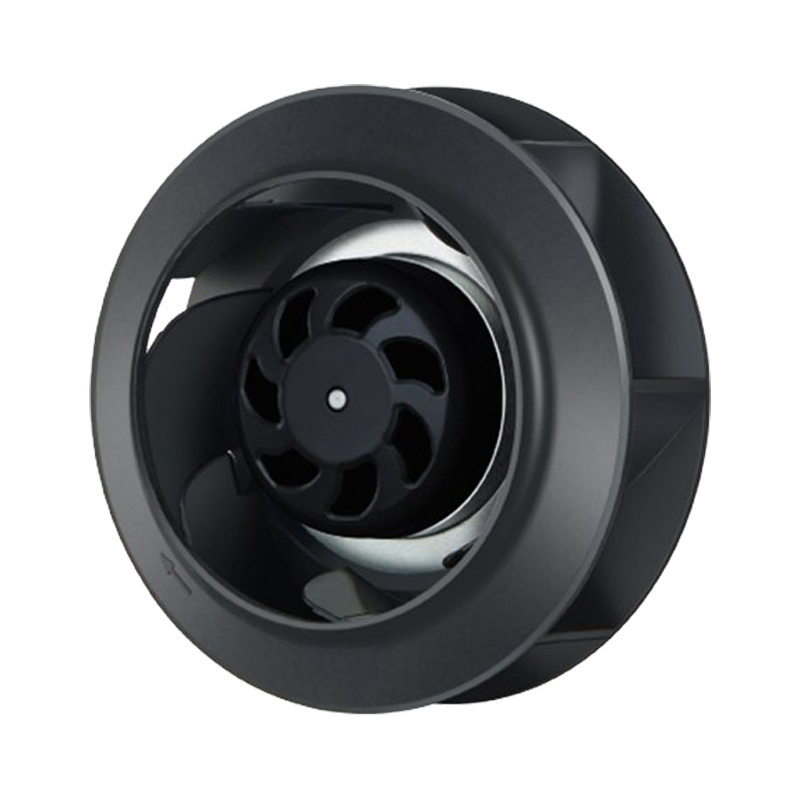

133mm Waterproof IP55 EC-AC Backward Curved Centrifugal Fan

133mm IP55 EC-AC Backward Curved Centrifugal Fan

Please feel free to contact us

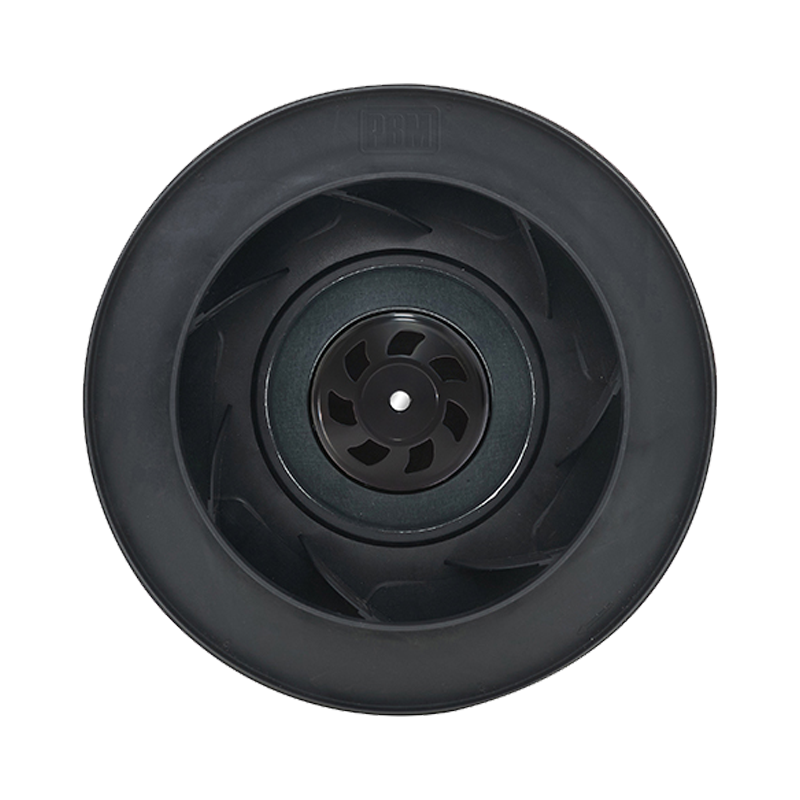

190mm Waterproof IP55 EC-AC Backward Curved Centrifugal Fan

190mm IP55 EC-AC Backward Curved Centrifugal Fan

Please feel free to contact us

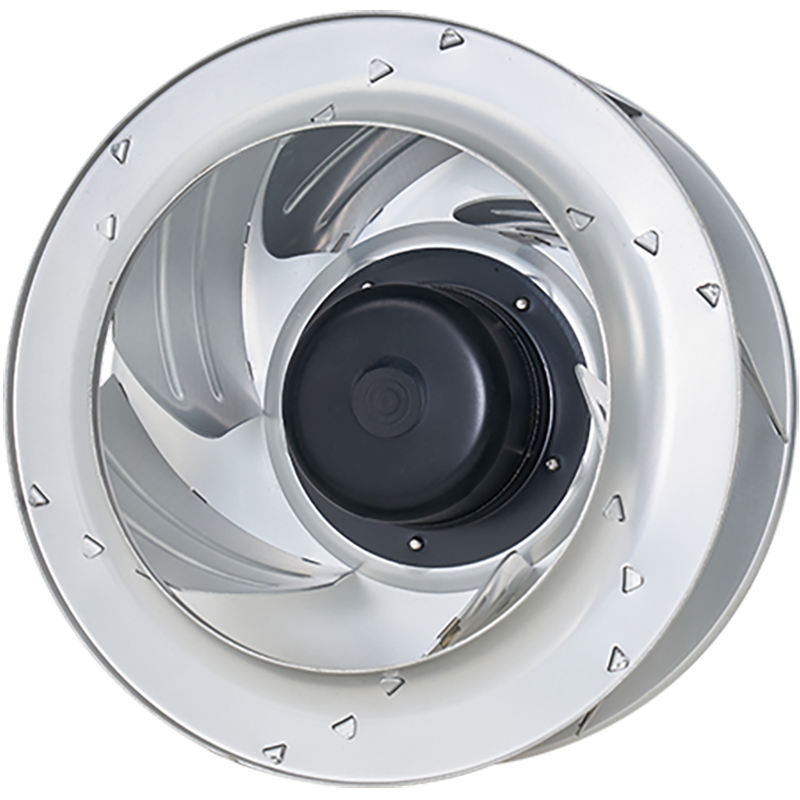

310mm Waterproof IP55 EC-AC Backward Curved Centrifugal Fan

310mm IP55 EC-AC Backward Curved Centrifugal Fan

Please feel free to contact us

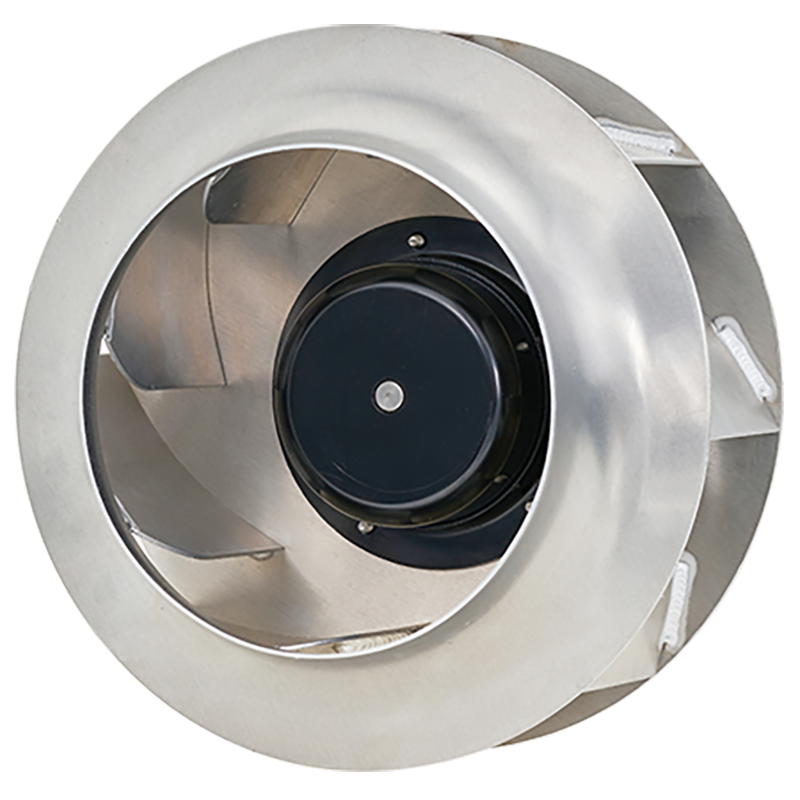

450mm Waterproof IP55 EC-AC Backward Curved Centrifugal Fan

450mm IP55 EC-AC Backward Curved Centrifugal Fan

Please feel free to contact us

Backward Curved Centrifugal Fan Technical Features Overview

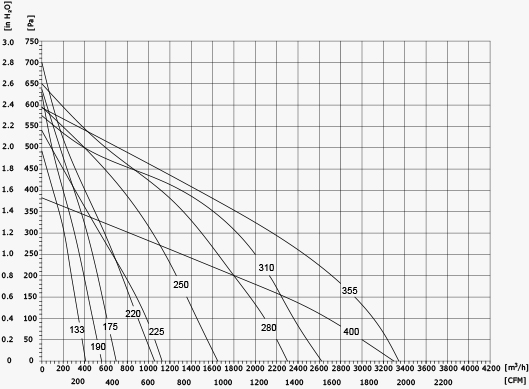

DC Centrifugal Fan Backward Curved D(133-250)-IP55

DC Centrifugal Fan Backward Curved D(133-250)-IP55

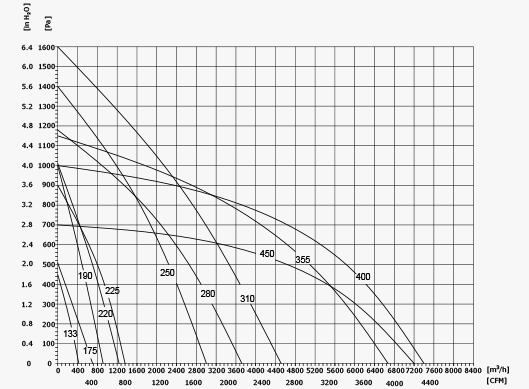

EC Centrifugal Fan Backward Curved D(133-450)-IP55

EC Centrifugal Fan Backward Curved D(133-450)-IP55

Parameter summary table

Please click on the model in the corresponding table to go to the product details page.

Model Rated Voltage Rated Power Rated Speed Air Flow Air Pressure EC/DC/AC Inquire
PB3N133B2E-FZ0 230 VAC 30 W 4250 RPM 281 M³/H 459 Pa EC Inquire
PB3N133B2E-FZ5 230 VAC 34 W 4450 RPM 280 M³/H 500 Pa EC Inquire
PB3N133B2E-RB2 230 VAC 43 W 4400 RPM 415 M³/H 450 Pa EC Inquire
PB3N133B24-FZ5 24 VDC 33 W 4500 RPM 270 M³/H 450 Pa DC Inquire
PB3N133B24-RB0 24 VDC 50 W 5000 RPM 420 M³/H 750 Pa DC Inquire
PB3N133B48-FZ5 48 VDC 33 W 4500 RPM 270 M³/H 450 Pa DC Inquire
PB3N133B48-RB0 48 VDC 50 W 5000 RPM 420 M³/H 750 Pa DC Inquire
PB3N175B2E-FZ5 230 VAC 40 W 3200 RPM 535 M³/H 451 Pa EC Inquire
PB3N175B2E-RZ0 230 VAC 72 W 4050 RPM 710 M³/H 550 Pa EC Inquire
PB3N175B2E-SZ0 230 VAC 110 W 4600 RPM 700 M³/H 800 Pa EC Inquire
PB3N175B24-RZ0 24 VDC 85 W 4300 RPM 750 M³/H 650 Pa DC Inquire
PB3N175B48-RZ0 48 VDC 85 W 4300 RPM 750 M³/H 650 Pa DC Inquire
PB3N190B2E-RZ0 230 VAC 52 W 2940 RPM 540 M³/H 450 Pa EC Inquire
PB3N190B2E-RZ1 230 VAC 70 W 3300 RPM 685 M³/H 530 Pa EC Inquire
PB3N190B2E-RZ2 230 VAC 110 W 3700 RPM 800 M³/H 790 Pa EC Inquire
PB3N190B2E-SZ0 230 VAC 110 W 3800 RPM 810 M³/H 850 Pa EC Inquire
PB3N190B2E-TZ0 230 VAC 170 W 4550 RPM 945 M³/H 1000 Pa EC Inquire
PB3N190B24-RZ0 24 VDC 85 W 3500 RPM 710 M³/H 840 Pa DC Inquire
PB3N190B24-TZ0 24 VDC 120 W 4050 RPM 820 M³/H 780 Pa DC Inquire
PB3N190B24-TZ1 24 VDC 153.6 W 4400 RPM 880 M³/H 950 Pa DC Inquire
PB3N190B48-RZ0 48 VDC 85 W 3500 RPM 710 M³/H 840 Pa DC Inquire
PB3N190B48-TZ0 48 VDC 120 W 4050 RPM 820 M³/H 780 Pa DC Inquire
PB3N190B48-TZ1 48 VDC 153.6 W 4400 RPM 880 M³/H 950 Pa DC Inquire
PB3N220B2E-RZ0 230 VAC 85 W 2670 RPM 960 M³/H 760 Pa EC Inquire
PB3N220B2E-SZ0 230 VAC 110 W 3100 RPM 1000 M³/H 580 Pa EC Inquire
PB3N220B2E-TZ0 230 VAC 170 W 3500 RPM 1255 M³/H 1010 Pa EC Inquire
PB3N220B24-RZ0 24 VDC 85 W 2600 RPM 1010 M³/H 700 Pa DC Inquire
PB3N220B24-TZ0 24 VDC 182.4 W 3500 RPM 1165 M³/H 950 Pa DC Inquire
PB3N220B48-RZ0 48 VDC 85 W 2600 RPM 1010 M³/H 700 Pa DC Inquire
PB3N220B48-TZ0 48 VDC 182.4 W 3500 RPM 1165 M³/H 950 Pa DC Inquire
PB3N225B2E-RG0 230 VAC 85 W 2300 RPM 975 M³/H 620 Pa EC Inquire
PB3N225B2E-RG1 230 VAC 100 W 2450 RPM 1100 M³/H 720 Pa EC Inquire
PB3N225B2E-SG0 230 VAC 110 W 2600 RPM 1150 M³/H 750 Pa EC Inquire
PB3N225B2E-TG0 230 VAC 170 W 3200 RPM 1300 M³/H 1000 Pa EC Inquire
PB3N225B2E-MG0 230 VAC 220 W 3500 RPM 1350 M³/H 900 Pa EC Inquire
PB3N225B24-RG0 24 VDC 96 W 2400 RPM 1100 M³/H 690 Pa DC Inquire
PB3N225B24-TG0 24 VDC 168 W 3000 RPM 1280 M³/H 960 Pa DC Inquire
PB3N225B48-RG0 48 VDC 96 W 2400 RPM 1100 M³/H 690 Pa DC Inquire
PB3N225B48-TG0 48 VDC 168 W 3000 RPM 1280 M³/H 960 Pa DC Inquire
PB3N250B2E-MZ0 230 VAC 220 W 3100 RPM 1600 M³/H 750 Pa EC Inquire
PB3N250B2E-RZ0 230 VAC 85 W 2100 RPM 1150 M³/H 610 Pa EC Inquire
PB3N250B2E-SZ0 230 VAC 115 W 2350 RPM 1250 M³/H 600 Pa EC Inquire
PB3N250B2E-TZ0 230 VAC 170 W 2750 RPM 1500 M³/H 915 Pa EC Inquire
PB3N250B2E-YZ5 230 VAC 550 W 3600 RPM 2750 M³/H 330 Pa EC Inquire
PB3N250B4E-YZ5 380 VAC 750 W 4100 RPM 3000 M³/H 1400 Pa EC Inquire
PB3N250B24-RZ0 24 VDC 86.4 W 2000 RPM 1170 M³/H 630 Pa DC Inquire
PB3N250B24-TZ0 24 VDC 153.6 W 2700 RPM 1350 M³/H 900 Pa DC Inquire
PB3N250B48-RZ0 48 VDC 86.4 W 2000 RPM 1170 M³/H 630 Pa DC Inquire
PB3N250B48-TZ0 48 VDC 153.6 W 2700 RPM 1350 M³/H 900 Pa DC Inquire
PB3N280B2E-MZ0 230 VAC 210 W 2600 RPM 2000 M³/H 800 Pa EC Inquire
PB3N280B2E-YZ5 230 VAC 700 W 3300 RPM 3720 M³/H 1600 Pa EC Inquire
PB3N280B4E-YZ5 380 VAC 800 W 3400 RPM 3700 M³/H 1180 Pa EC Inquire
PB3N310B2E-MZ0 230 VAC 220 W 2100 RPM 2500 M³/H 650 Pa EC Inquire
PB3N310B2E-YZ5 230 VAC 700 W 2850 RPM 4380 M³/H 1590 Pa EC Inquire
PB3N310B4E-YZ5 380 VAC 1100 W 3000 RPM 4500 M³/H 1600 Pa EC Inquire
PB3N355B2E-ZW5 230 VAC 700 W 2150 RPM 5400 M³/H 1080 Pa EC Inquire
PB3N355B4E-ZW5 380 VAC 1100 W 2500 RPM 6700 M³/H 1150 Pa EC Inquire
PB3N400B2E-ZW5 230 VAC 700 W 1750 RPM 6700 M³/H 1000 Pa EC Inquire
PB3N400B4E-ZW5 380 VAC 1300 W 2000 RPM 7400 M³/H 1000 Pa EC Inquire
PB3N450B4E-ZW5 380 VAC 1000 W 1800 RPM 7200 M³/H 700 Pa EC Inquire
PB3N450B2E-ZW5 230 VAC 700 W 1550 RPM 6900 M³/H 650 Pa EC Inquire
