150mm DC single-inlet centrifugal fan made especially for ventilation and cooling systems in a variety of industries is the PS3N150B24M. It is extensively utilized in cleanroom and air purification systems, power cabinet and telecommunications cooling, medical equipment cooling, industrial refrigeration and ventilation, and residential and commercial appliances.
PBM is an expert in sophisticated airflow systems and premium EC/DC fans. With CE, UL, and RoHS certifications, our products satisfy export regulations in a variety of sectors. For simple system integration, they provide speed signal output (FG). Platforms for industrial automation or the Internet of Things can incorporate the optional RS485 Modbus-RTU communication protocol. PBM provides a broad variety of customized services to meet the various demands of various sectors.
General Characters
|
1-1 |
Rated Voltage |
24 VDC |
|
1-2 |
Operating Voltage |
16~28 VDC |
|
1-3 |
Rated Speed |
2400 RPM |
|
1-4 |
Input Current |
4.6 A |
|
1-5 |
Input Power |
105 W |
|
1-6 |
Air Flow |
294.25 CFM / 500 M³/H |
|
1-7 |
Static Pressure |
3 inH₂O / 750 Pa |
|
1-8 |
Acoustical Noise |
68 dB(A) |
|
1-9 |
Life Expectancy |
50,000 Hours (L10) At 40℃ room, humidity 15%~65%RH. |
|
1-10 |
Insulation Class |
Class B |
|
1-11 |
Motor Protection |
Locked rotor protection Polarity protection Automatic restart capability |
|
1-13 |
Speed Control |
Control input 0~10VDC / PWM |
|
1-14 |
Protection Type |
IP44 |
|
1-15 |
Signal Output |
FG (Frequency Generator) |
Mechanical Characters
|
2-1 |
Dimension |
226 mm X 244 mmX 135 mm (see dimension drawing) |
|
2-2 |
Material of Impeller |
Galvanized Metal Shell |
|
2-3 |
Number of Blades |
38 |
|
2-4 |
Bearing System |
NMB ball bearing |
|
2-5 |
Lead Wire |
DC (AWG20 #) |
Environmental Characters
|
3-1 |
Operating Temperature |
-25℃ to 60℃ |
|
3-2 |
Storage Temperature |
-40℃ to 75℃ |
|
3-3 |
Operating Humidity |
5% to 90% RH |
|
3-4 |
Storage Humidity |
5% to 95% RH |

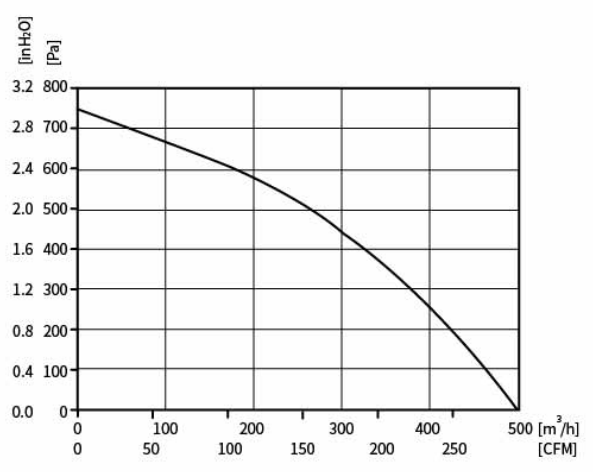

Performance Curve
Testing Condition:
Input Voltage----Operating voltage (24VDC)
Temperature-----Room temperature
Humidity---------65%RH
Outline Drawing
Note:
1.Connection line:DC(4×AWG20#)
2.DC: Red=Voltage Intput 24VDC, Yellow=0-10VDC/PWM, White=FG, Blue=GND;
If you have any interest in our products,please feel free to contact us & we are ready to serve you
