PBM FOCUS ON EC FAN ONLY. Certificate: CE,UL,ROHS; Supply Ability: 100,000 pcs per year; MOQ: 1~100 pcs based on EXW price; 100 pcs above based on FOB price.

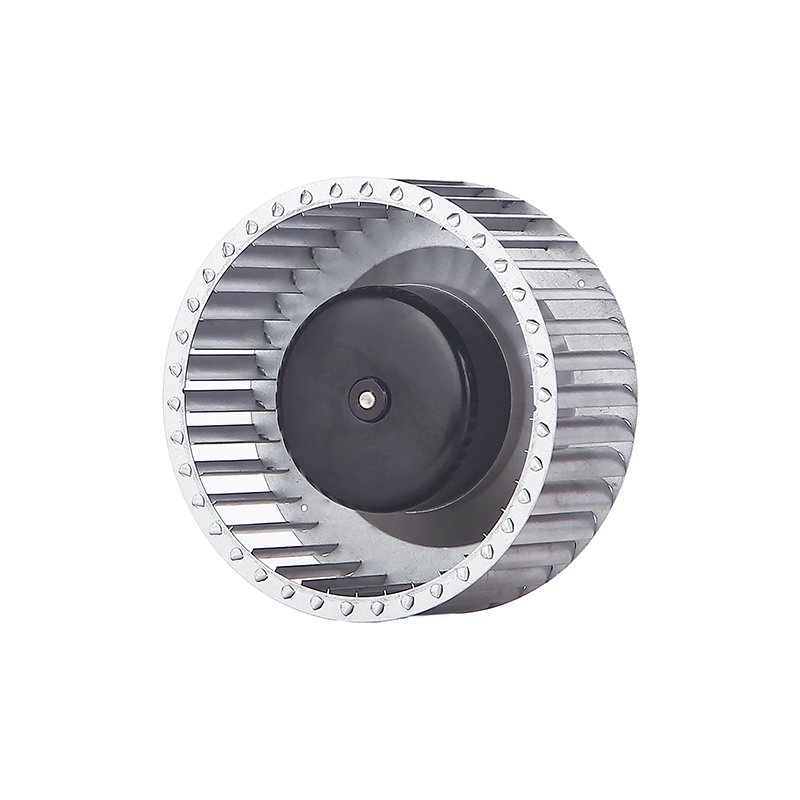

160mm EC forward curved centrifugal fan from PBM is made especially for medium-sized commercial fresh air systems and air handling equipment. With an air volume of 670 m³/h, static pressure of 378 Pa, speed of 2160 RPM, power of 177 W, and noise level of under 70 dB (A), it employs a 230V EC motor. By successfully overcoming the resistance of HEPA filters and branch ducts, the forward-curved impeller design maintains an adequate air volume even under medium to high static pressure, guaranteeing that clean air is distributed uniformly throughout every area. The 670 m³/h air volume is appropriate for stores or offices of 100–150 square meters, and the 378 Pa static pressure satisfies the air supply needs of duct systems up to 20 meters long. Significant energy savings can be achieved by using the EC motor with a CO₂ sensor for on-demand operation and supporting 0-10V/PWM stepless speed control. Because of its low noise level, it may be used in commercial and office settings where quiet operation is necessary. Ceiling installation is made possible by IP44 protection. It is the perfect power source for compact fresh air exchangers, air conditioners, and purification equipment because of its 50,000-hour lifespan, which guarantees long-term, reliable operation in commercial venues.
General Characters
|
1-1 |
Rated Voltage |
230 VAC |
|
1-2 |
Frequency |
50/60 Hz |
|
1-3 |
Operating Voltage |
184~270 VAC |
|
1-4 |
Rated Speed | 2160 RPM |
|
1-5 |
Input Current |
1.28 A |
|
1-6 |
Input Power |
177 W |
|
1-7 |
Air Flow |
394.30 CFM / 670 M³/H |
|
1-8 |
Static Pressure |
1.51 inH₂O / 378 Pa |
|
1-9 |
Acoustical Noise |
70 dB(A) |
|
1-10 |
Life Expectancy |
50,000 Hours (L10) At 40℃ room, humidity 15%~65%RH. |
|
1-11 |
Insulation Class |
Class B |
|
1-13 |
Motor Protection |
Locked rotor protection Polarity protection Automatic restart capability |
|
1-14 |
Speed Control |
Control input 0~10VDC / PWM |
|
1-15 |
Protection Type |
IP44 |
|
1-17 |
Signal Output |
FG (Frequency Generator) |
Mechanical Characters
|
2-1 |
Dimension |
Ø160 mm X 100.5 mm (see dimension drawing) |
|
2-2 |
Material of Impeller |
Galvanized metal shell |
|
2-3 |
Number of Blades |
38 |
|
2-4 |
Bearing System |
NMB ball bearing |
|
2-5 |
Lead Wire |
AC (AWG20#), DC (AWG22 #) |
Environmental Characters
|
3-1 |
Operating Temperature |
-25℃ to 60℃ |
|
3-2 |
Storage Temperature |
-40℃ to 75℃ |
|
3-3 |
Operating Humidity |
5% to 90% RH |
|
3-4 |
Storage Humidity |
5% to 95% RH |
Performance Curve
Testing Condition:
Input Voltage----Operating voltage (230VAC/50Hz)
Temperature-----Room temperature
Humidity---------65%RH
Outline Drawing
Note:
1.Connection line: AC(3×AWG20#)，DC(4×AWG22#)
2.AC: Brown=Live Line，Blue=Null Line，Green & Yellow=Protecting Earthing;
3.DC: Red=Voltage Output +10VDC, Yellow=0-10VDC/PWM, White=FG, Blue=GND;
