PS3N160B48M is a 160mm DC single-inlet centrifugal fan specifically designed for air purification. It draws in contaminated indoor air, propels the airflow sequentially through multiple filter stages, and returns the purified air to the room as a directed airflow. Its medium-to-high static pressure of 620 Pa effectively overcomes the cumulative resistance created by combinations of HEPA filters, activated carbon filters, and pre-filters. Whether the air purifier is in its initial installation state or the filters are nearing the end of their service life, it maintains a stable clean airflow, ensuring that the CADR does not decline. This extends the effective replacement cycle of the filters and reduces long-term maintenance costs for users.
PBM specializes in the R&D and manufacturing of high-quality EC/DC fans and intelligent airflow solutions. To address the diverse needs of air purifier and cleanroom equipment manufacturers, PBM offers specialized customization services.
General Characters
|
1-1 |
Rated Voltage |
48 VDC |
|
1-2 |
Operating Voltage |
36~57 VDC |
|
1-3 |
Rated Speed |
1950 RPM |
|
1-4 |
Input Current |
2.2 A |
|
1-5 |
Input Power |
105 W |
|
1-6 |
Air Flow |
323.68 CFM / 550 M³/H |
|
1-7 |
Static Pressure |
2.48 inH₂O / 620 Pa |
|
1-8 |
Acoustical Noise |
62 dB(A) |
|
1-9 |
Life Expectancy |
50,000 Hours (L10) At 40℃ room, humidity 15%~65%RH. |
|
1-10 |
Insulation Class |
Class B |
|
1-11 |
Motor Protection |
Locked rotor protection Polarity protection Automatic restart capability |
|
1-13 |
Speed Control |
Control input 0~10VDC / PWM |
|
1-14 |
Protection Type |
IP44 |
|
1-15 |
Signal Output |
FG (Frequency Generator) |
Mechanical Characters
|
2-1 |
Dimension |
228 mm X 245 mm X 130 mm (see dimension drawing) |
|
2-2 |
Material of Impeller |
Galvanized Metal Shell |
|
2-3 |
Number of Blades |
38 |
|
2-4 |
Bearing System |
NMB ball bearing |
|
2-5 |
Lead Wire |
DC (AWG20 #) |
Environmental Characters
|
3-1 |
Operating Temperature |
-25℃ to 60℃ |
|
3-2 |
Storage Temperature |
-40℃ to 75℃ |
|
3-3 |
Operating Humidity |
5% to 90% RH |
|
3-4 |
Storage Humidity |
5% to 95% RH |

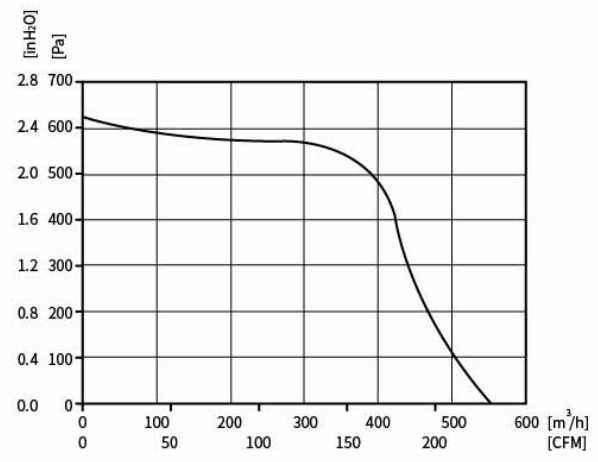

Performance Curve
Testing Condition:
Input Voltage----Operating voltage (48VDC)
Temperature-----Room temperature
Humidity---------65%RH
Outline Drawing
Note:
1.Connection line:DC(4×AWG20#)
2.DC: Red=Voltage Intput 48VDC, Yellow=0-10VDC/PWM, White=FG, Blue=GND;
