220mm EC Centrifugal Fan with Bracket from PBM is made especially for quiet commercial ventilation systems and upscale office buildings. It has an air volume of 1000 m³/h, a 230V EC motor running at 3100 RPM, and a noise level of just 69 dB (A). Without the need for intricate enclosures, the bracket design enables direct installation into duct systems or ventilation units. It may be installed within office ceilings without interfering with staff work or meetings because of its extremely low noise level of 69 dB(A). The 1000 m³/h air volume satisfies the ventilation requirements of highly populated areas and is appropriate for open-plan workplaces or meeting rooms with 150–200 square feet. Significant energy savings can be achieved by using the EC motor with a CO₂ sensor for on-demand air delivery and supporting 0-10V/PWM stepless speed control. A 50,000-hour lifespan guarantees long-term reliable operation in commercial settings, and IP55 protection adapts to dusty ceiling situations, making it the perfect power source for complete heat exchangers and silent ventilation systems.
General Characters
|
1-1 |
Rated Voltage |
230 VAC |
|
1-2 |
Frequency |
50/60 Hz |
|
1-3 |
Operating Voltage |
184~270 VAC |
|
1-4 |
Rated Speed | 3100 RPM |
|
1-5 |
Input Current |
0.8 A |
|
1-6 |
Input Power |
110 W |
|
1-7 |
Air Flow |
588.50 CFM / 1000 M³/H |
|
1-8 |
Static Pressure |
2.32 inH₂O / 580 Pa |
|
1-9 |
Acoustical Noise |
69 dB(A) |
|
1-10 |
Life Expectancy |
50,000 Hours (L10) At 40℃ room, humidity 15%~65%RH. |
|
1-11 |
Insulation Class |
Class B |
|
1-13 |
Motor Protection |
Locked rotor protection Polarity protection Automatic restart capability |
|
1-14 |
Speed Control |
Control input 0~10VDC / PWM |
|
1-15 |
Protection Type |
IP55 |
|
1-17 |
Signal Output |
FG (Frequency Generator) |
Mechanical Characters
|
2-1 |
Dimension |
270 mm X 270mm X 89.8mm (see dimension drawing) |
|
2-2 |
Material of Impeller |
PA66+GF |
|
2-3 |
Number of Blades |
7 |
|
2-4 |
Bearing System |
NMB ball bearing |
|
2-5 |
Lead Wire |
AC (AWG20#), DC (AWG24#) |
Environmental Characters
|
3-1 |
Operating Temperature |
-25℃ to 60℃ |
|
3-2 |
Storage Temperature |
-40℃ to 75℃ |
|
3-3 |
Operating Humidity |
5% to 90% RH |
|
3-4 |
Storage Humidity |
5% to 95% RH |
Performance Curve
Testing Condition:
Input Voltage----Operating voltage (230VAC/50Hz)
Temperature-----Room temperature
Humidity---------65%RH

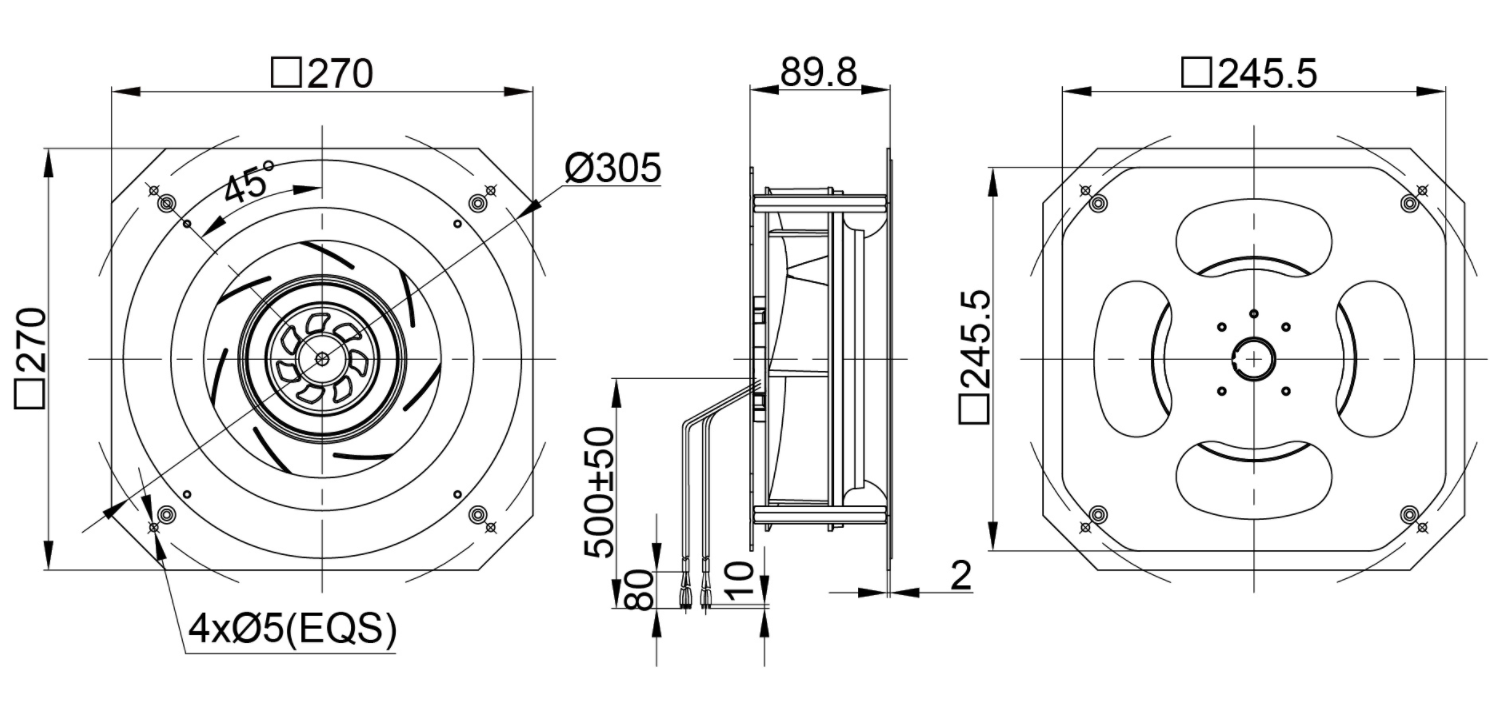

Outline Drawing
Note:
1.Connection line: AC(3×AWG20#)，DC(4×AWG24#)
2.AC: Brown=Live Line，Blue=Null Line，Green & Yellow=Protecting Earthing;
3.DC: Red=Voltage Output +10VDC, Yellow=0-10VDC/PWM, White=FG, Blue=GND;
