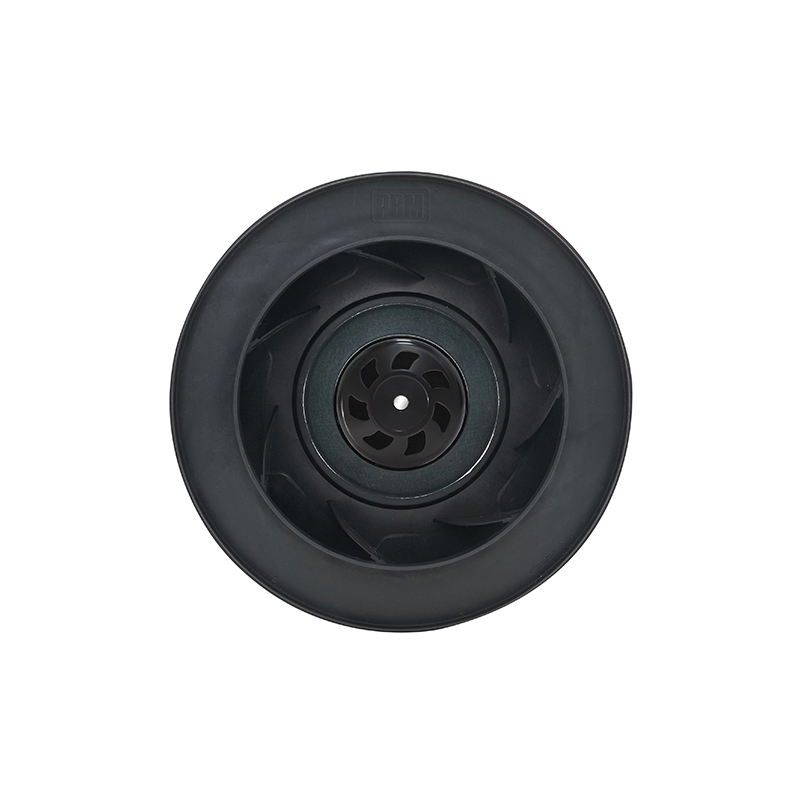

The PB3N225B2E-TG0 225mm IP55 EC-AC Backward Curved Centrifugal Fan is designed for cleanroom systems and FFU fan filter units in semiconductor cleanrooms, pharmaceutical workshops, and biological laboratories — overcoming cumulative resistance from HEPA/ULPA filters and maintaining laminar flow clean environments in ultra-high static pressure industrial ventilation applications requiring waterproof and dustproof protection.
With 1000 Pa top-tier static pressure output, this backward curved centrifugal fan easily overcomes resistance from HEPA filters, dense coil arrays, and long-distance ductwork, ensuring stable airflow in FFU, AHU, and cleanroom systems. Powered by EC motor (electronically commutated brushless motor) technology — built on the brushless DC platform with electronic commutation — it achieves precise and efficient energy conversion with 170 W input power and 1.2 A current, delivering 30%–50% energy savings compared to traditional AC induction motors and fully complying with ErP 2015 energy efficiency directives.
The fan supports 0–10V DC / PWM dual-mode stepless speed control input and is available with full customization services.
Choose the PB3N225B2E-TG0 for a high static pressure, low noise, IP55 EC-AC backward curved centrifugal fan for your most demanding cleanroom and FFU applications.
General Characters
|
1-1 |
Rated Voltage |
230 VAC |
|
1-2 |
Frequency |
50/60 Hz |
|
1-3 |
Operating Voltage |
184~270 VAC |
|
1-4 |
Rated Speed | 3200 RPM |
|
1-5 |
Input Current |
1.2 A |
|
1-6 |
Input Power |
170 W |
|
1-7 |
Air Flow |
765.05 CFM / 1300 M³/H |
|
1-8 |
Static Pressure |
4.00 inH2O / 1000 Pa |
|
1-9 |
Acoustical Noise |
71 dB(A) |
|
1-10 |
Life Expectance |
50,000 Hours(L10) At 40℃ room, humidity 15%~65%RH. |
|
1-11 |
Insulation Class |
Class B |
|
1-13 |
Motor Protection |
Locked rotor protection Polarity protection Automatic restart capability |
|
1-14 |
Speed Control |
Control input 0~10VDC / PWM |
|
1-15 |
Protection Type |
IP55 |
|
1-17 |
Signal Output |
FG (Frequency Generator) |
Mechanical Characters
|
2-1 |
Dimension |
Ø225 mm X 99 mm (see dimension drawing) |
|
2-2 |
Material of Impeller |
PA66+GF |
|
2-3 |
Number of Blades |
7 |
|
2-4 |
Bearing System |
NMB ball bearing |
|
2-5 |
Lead Wire |
AC (AWG20#)，DC (AWG24#) |
Environmental Characters
|
3-1 |
Operating Temperature |
-25℃ to 60℃ |
|
3-2 |
Storage Temperature |
-40℃ to 75℃ |
|
3-3 |
Operating Humidity |
5% to 90% RH |
|
3-4 |
Storage Humidity |
5% to 95% RH |

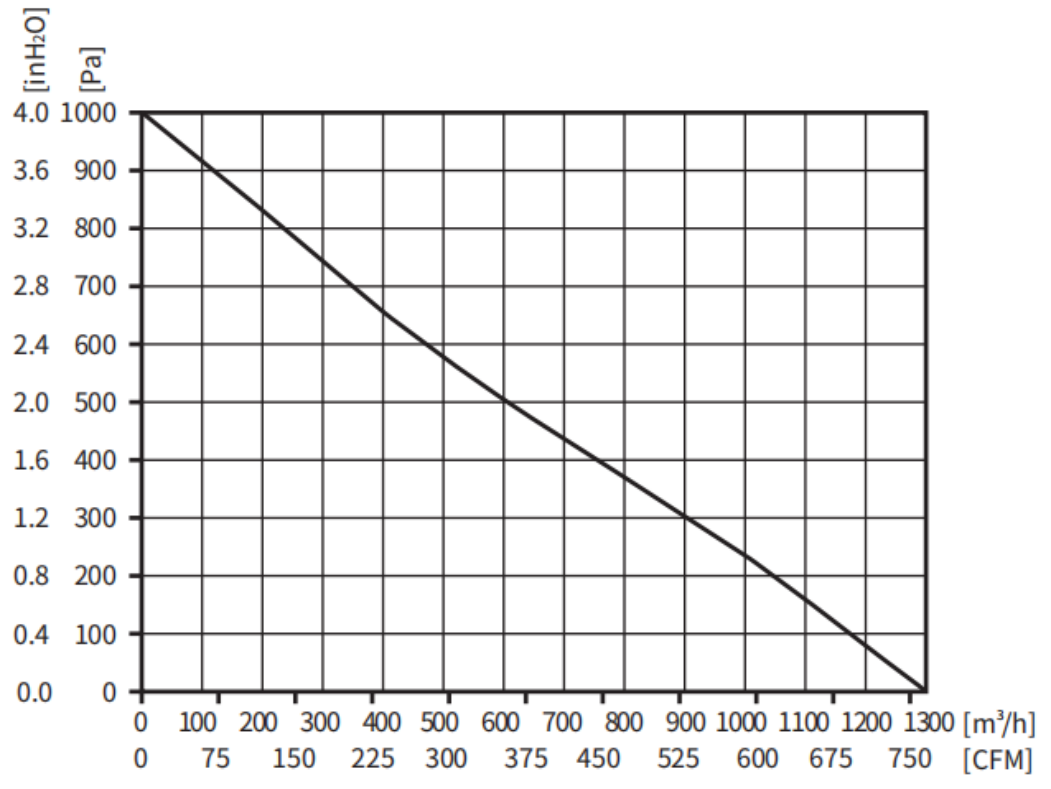

Performance Curve
Testing Condition:
Input Voltage----Operating voltage (230VAC/50Hz)
Temperature-----Room temperature
Humidity---------65%RH
Outline Drawing
Note:
1.Connection line: AC(3×AWG20#)，DC(4×AWG24#)
2.AC: Brown=Live Line，Blue=Null Line，Green & Yellow=Protecting Earthing;
3.DC: Red=Voltage Output +10VDC, Yellow=0-10VDC/PWM, White=FG, Blue=GND;
