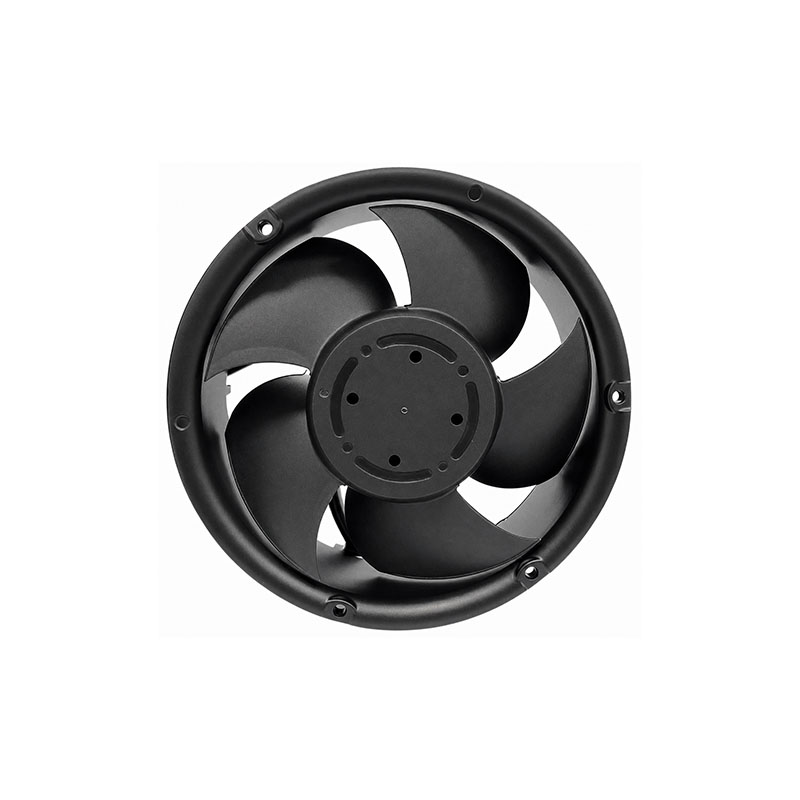

Φ120x120x38mm EC-DC Axial Fan PA15051B24X

Name: Φ120x120x38mm EC-DC Axial Fan PA15051B24X
Brand: PBM
Price: 45.00 USD
Availability: InStock

PBM FOCUS ON EC FAN ONLY. Certificate: CE,UL,ROHS; Supply Ability: 100,000 pcs per year; MOQ: 1~100 pcs based on EXW price; 100 pcs above based on FOB price.

Technical Description

Curve and Draw

Certificate

Application Scopes

Packing Details

The PA15051B24X 120x120x38mm EC-DC compact axial fan is a high-performance compact cooling fan designed for applications requiring high airflow and high static pressure in limited installation spaces. Featuring a brushless DC external rotor motor, this fan delivers reliable performance, efficient operation, and long service life.

With a rated voltage of 24VDC and a high-speed operation up to 9500 RPM, the PA15051B24X provides an airflow of 1008.6m³/h and a maximum static pressure of 1274Pa, making it suitable for high-resistance cooling systems. The compact 120mm frame size and optimized axial impeller design allow easy integration into industrial equipment and electronic cooling applications.

This compact axial fan is widely used in industrial control systems, communication equipment, power electronics, medical devices, and HVAC applications where efficient heat dissipation and stable airflow performance are required. PBM provides customized EC/DC axial fan solutions with flexible options for voltage, connector, and performance requirements, supporting customers from prototype validation to mass production.

General Characters

1-1	Rated Voltage	24 VDC
1-2	Frequency	/
1-3	Operating Voltage	14~26.4 VDC
1-4	Rated Speed	9500 RPM
1-5	Input Current	6.5 A
1-6	Input Power	156 W
1-7	Airflow	1008.6 M³/H
1-8	Static Pressure	1274 Pa
1-9	Acoustical Noise	77 dB(A)
1-10	Life Expectancy	50,000 Hours（L10） At 40℃ room，humidity 15%～65%RH.
1-11	Insulation Class	Class A
1-13	Motor Protection	/
1-14	Speed Control	/
1-15	Protection Type	/
1-17	Signal Output	/

Mechanical Characters

2-1	Dimension	Φ120x120x38 mm (See dimension drawing)
2-2	Material of Impeller	Plastic
2-3	Bearing System	Ball bearing
2-4	Lead Wire	Red,Black L=300mm

Environmental Characters

3-1	Operating Temperature	-10℃ to 60℃
3-2	Storage Temperature	-40℃ to 75℃
3-3	Operating Humidity	30% to 95% RH
3-4	Storage Humidity	30% to 95% RH

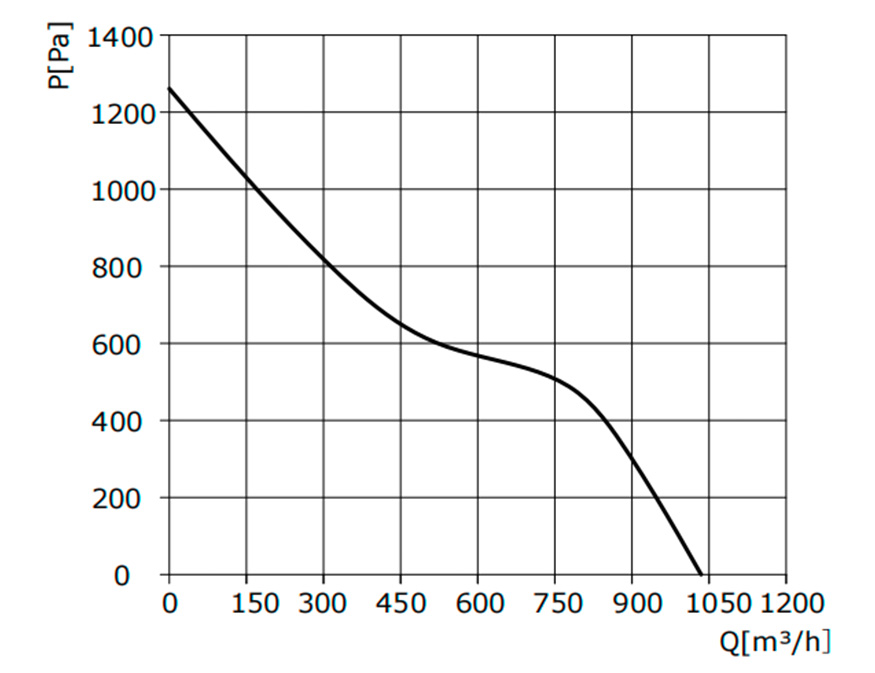

Performance Curve

Testing Condition:

Input Voltage-----Operating voltage (24VDC)

Temperature-----Room temperature

Humidity--------65%RH

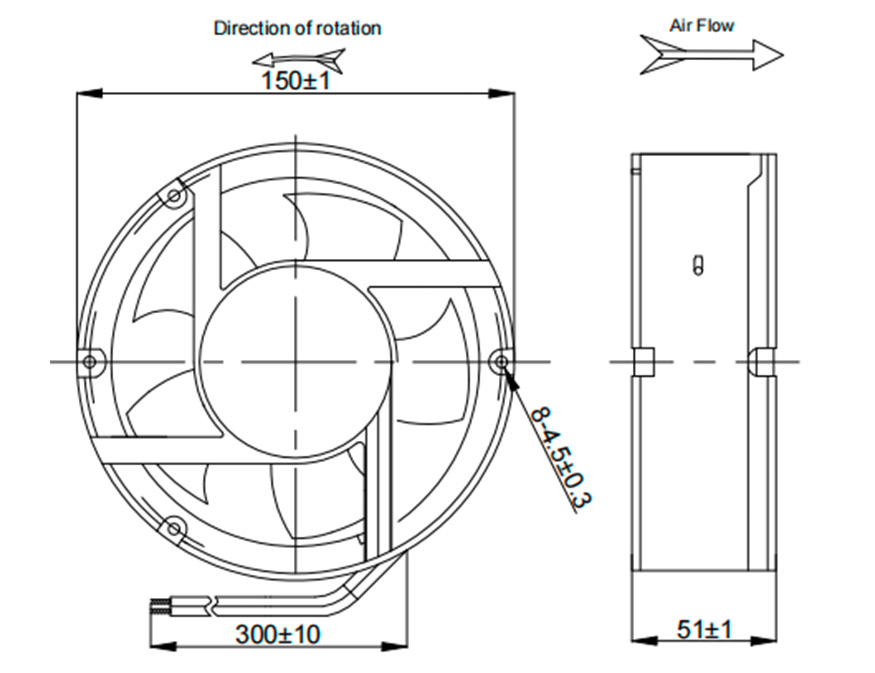

Outline Drawing

Note:

1.Connection line: Red,Black

Red=+,Black=GND;

3.Connecter;/
