215mm EC-DC Axial Fan PA3N215B24M

PBM FOCUS ON EC FAN ONLY. Certificate: CE,UL,ROHS; Supply Ability: 100,000 pcs per year; MOQ: 1~100 pcs based on EXW price; 100 pcs above based on FOB price.

Technical Description

This high-speed cooling fan produces a steady airflow of 1,230 m³/h with a small 215mm housing and a secure 24V DC power supply. It is appropriate for cooling and ventilation in a variety of small-to-medium-sized equipment because it offers strong airflow in a compact form. The DC brushless axial fan is silent, low-vibration, and energy-efficient. It has a lightweight design for simple installation and replacement, is long-lasting and resistant to temperature changes, and can run continuously for 24 hours. Small cabinet cooling, industrial control inverter cabinets, PLC control boxes, 24V energy storage devices, UPS power cabinets, and charging station module cooling are all extensively compatible with our cabinet fans. They are also appropriate for wall-mounted refrigeration equipment, integrated fresh air and dehumidification units, air purification and circulation systems, and small air handling units in central air conditioning systems (greenhouse ventilation). They may also be utilized in fan wall units for data centers, ventilation-embedded cabinets in communication base stations, and cooling small precision medical equipment and instrument enclosures. They are a common part for new equipment and the recommended upgrade replacement for older fans of the same specifications on the market since they are small, space-efficient, and offer effective heat dissipation and air circulation. This high-speed cooling fan produces a steady airflow of 1,230 m³/h with a small 215mm housing and a secure 24V DC power supply. It is appropriate for cooling and ventilation in a variety of small-to-medium-sized equipment because it offers strong airflow in a compact form. The DC brushless axial fan is silent, low-vibration, and energy-efficient. It has a lightweight design for simple installation and replacement, is long-lasting and resistant to temperature changes, and can run continuously for 24 hours. Small cabinet cooling, industrial control inverter cabinets, PLC control boxes, 24V energy storage devices, UPS power cabinets, and charging station module cooling are all extensively compatible with our cabinet fans. They are also appropriate for wall-mounted refrigeration equipment, integrated fresh air and dehumidification units, air purification and circulation systems, and small air handling units in central air conditioning systems (greenhouse ventilation). They may also be utilized in fan wall units for data centers, ventilation-embedded cabinets in communication base stations, and cooling small precision medical equipment and instrument enclosures. They are a common part for new equipment and the recommended upgrade replacement for older fans of the same specifications on the market since they are small, space-efficient, and offer effective heat dissipation and air circulation.

General Characters

1-1	Rated Voltage	24 VDC
1-2	Operating Voltage	16~28 VDC
1-3	Rated Speed	2000 RPM
1-4	Input Current	2.6 A
1-5	Input Power	62.4 W
1-6	Air Flow	723.86 CFM / 1230 M³/H

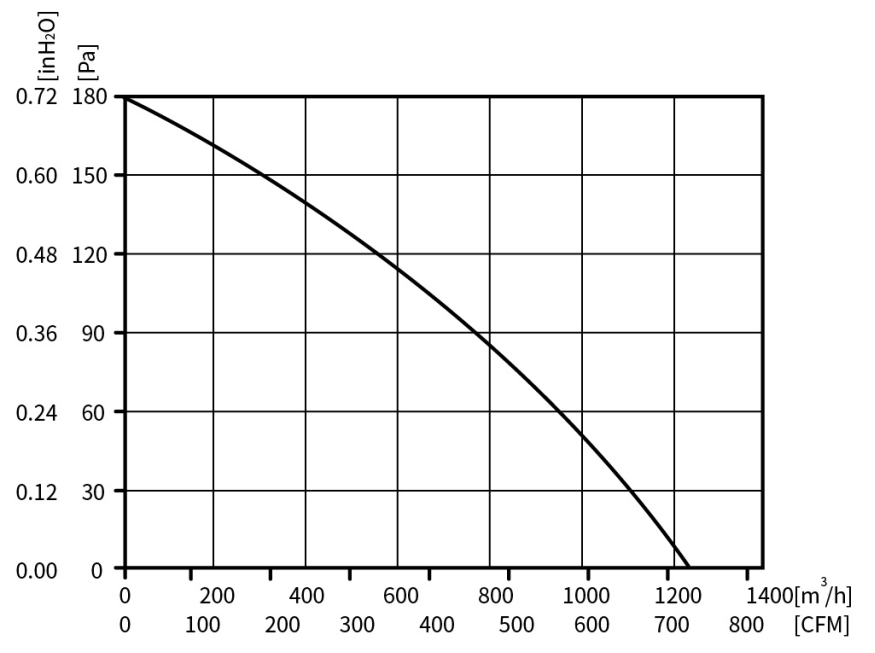

1-7	Static Pressure	0.72 inH2O / 180 Pa
1-8	Acoustical Noise	62 dB(A)
1-9	Life Expectance	50,000 Hours(L10) At 40℃ room, humidity 15%~65%RH.
1-10	Insulation Class	Class B
1-11	Motor Protection	Locked rotor protection Polarity protection Automatic restart capability
1-13	Speed Control	Control input 0~10VDC / PWM
1-14	Protection Type	IP44
1-15	Signal Output	FG (Frequency Generator)

Mechanical Characters

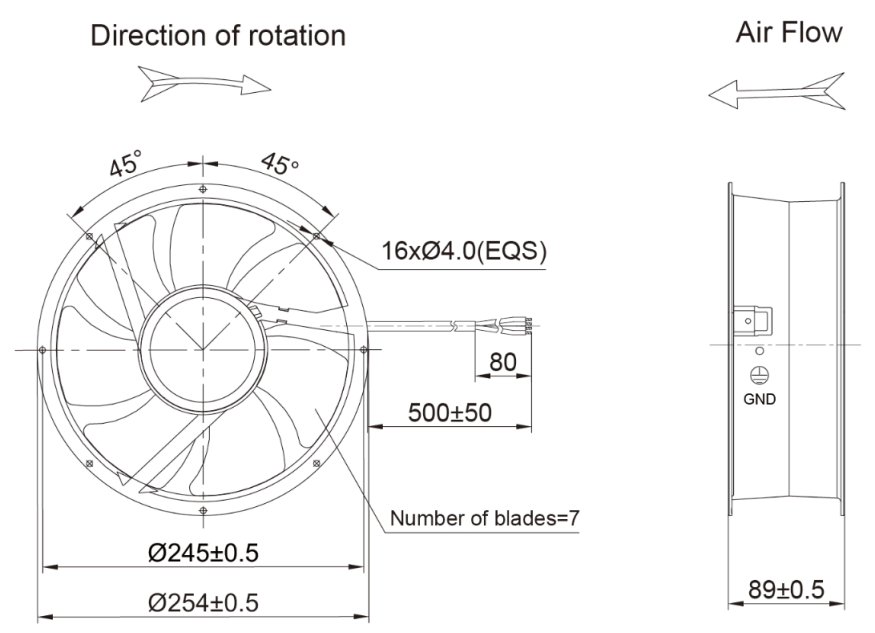

2-1	Dimension	Ø215 mm X 89 mm (see dimension drawing)
2-2	Material of Impeller	Cold rolled steel sheet
2-3	Number of Blades	7
2-4	Bearing System	NMB ball bearing
2-5	Lead Wire	DC (AWG20 #)
