250mm EC-AC Axial Fan PA3N250B2EH

PBM FOCUS ON EC FAN ONLY. Certificate: CE,UL,ROHS; Supply Ability: 100,000 pcs per year; MOQ: 1~100 pcs based on EXW price; 100 pcs above based on FOB price.

Technical Description

The 250mm EC axial fan PA3N250B2EH is specifically designed to satisfy the ventilation and heat exchange requirements in every situation in the refrigerated cold chain by utilizing key benefits like EC stepless variable-speed energy efficiency, low-temperature weather resistance, and long-term stable operation. It covers mobile cold chain storage cabinets, low-temperature turnover storage units (cold storage fans), fresh produce cold chain sorting stations, and temperature-controlled packaging workstations. It is extensively utilized in small and medium-sized fresh-keeping cold storage facilities and freezer rooms for evaporator cooling and uniform air circulation within the storage space. Additionally, it works well with air-cooled chillers, compact condensing units, refrigerated containers in cold chain transportation vehicles, portable low-temperature storage equipment, and back air circulation in supermarket upright freezers and island freezers. With its low power consumption and energy efficiency, this axial fan can regulate its speed intelligently in response to low temperatures. It provides consistent airflow without frost accumulation in conditions with high humidity and moisture. It prolongs the shelf life of food items by guaranteeing constant interior temperatures and thorough cooling coverage. In applications involving equipment cooling, temperature-controlled circulation, heat exchange, and cold chain refrigeration, it is the best option for replacing or upgrading fans.

General Characters

1-1	Rated Voltage	230 VAC
1-2	Frequency	50/60 Hz
1-3	Operating Voltage	184~270 VAC
1-4	Rated Speed	2650 RPM
1-5	Input Current	0.7 A
1-6	Input Power	80 W
1-7	Air Flow	1035.76 CFM / 1760 M³/H

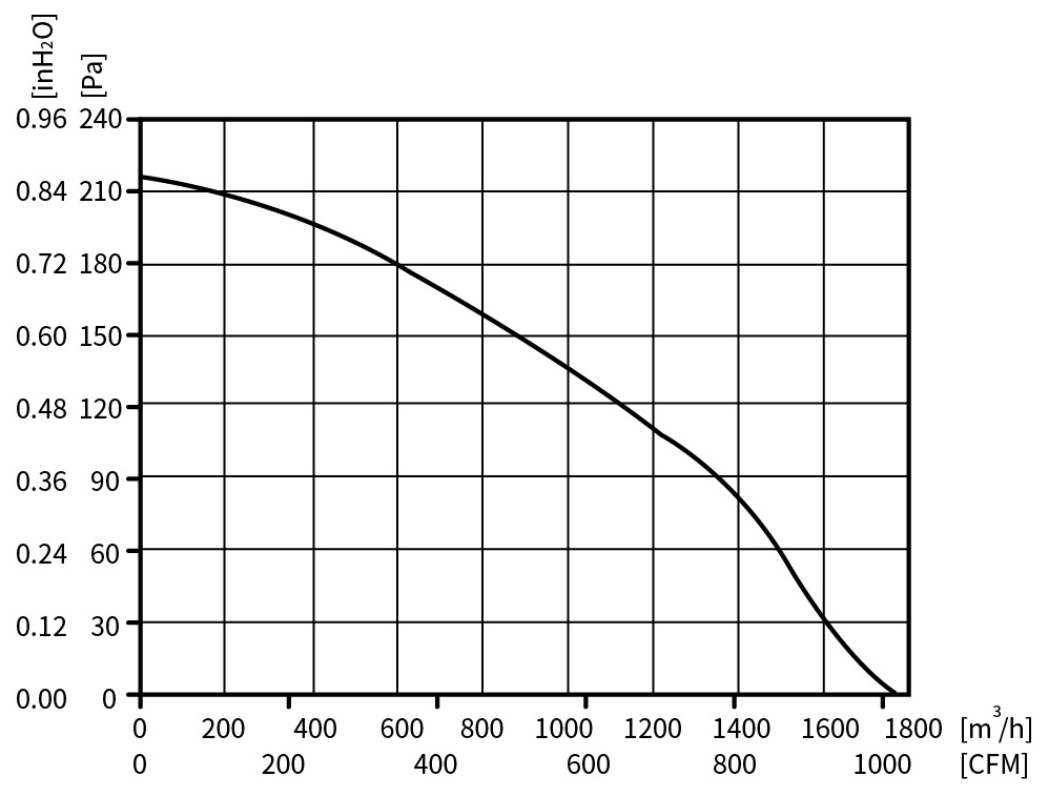

1-8	Static Pressure	0.86 inH2O / 215 Pa
1-9	Acoustical Noise	64 dB(A)
1-10	Life Expectance	50,000 Hours(L10) At 40℃ room, humidity 15%~65%RH.
1-11	Insulation Class	Class B
1-13	Motor Protection	Locked rotor protection Polarity protection Automatic restart capability
1-14	Speed Control	Control input 0~10VDC / PWM
1-15	Protection Type	IP44
1-17	Signal Output	FG (Frequency Generator)

Mechanical Characters

2-1	Dimension	Ø250 mm X 80 mm (see dimension drawing)
2-2	Material of Impeller	Cold rolled steel sheet
2-3	Number of Blades	7
2-4	Bearing System	NMB ball bearing
2-5	Lead Wire	AC (AWG20#)，DC (AWG22 #)
