250mm EC-DC Axial Fan PA3N250B24H

PBM FOCUS ON EC FAN ONLY. Certificate: CE,UL,ROHS; Supply Ability: 100,000 pcs per year; MOQ: 1~100 pcs based on EXW price; 100 pcs above based on FOB price.

Technical Description

Axial cooling is appropriate for a variety of cold storage applications, including chilled containers, cold storage boxes (cold storage fan), and incubators. Low temperatures in cold chain transportation and warehousing can readily cause equipment condensation and unstable operation. Because of its wide temperature adaptability, the PA3N250B24H can start properly at temperatures as low as -25°C, efficiently circulating air within the unit to prevent localized temperature discrepancies and items from freezing or spoiling. In the data center, it works with fan wall units and server in-row cooling systems. Data center servers create a lot of heat while running; thus, in-row cooling requires accurate airflow distribution and effective heat dispersion. The small shape of this axial fan (280×280×80 mm) makes it easy to integrate into in-row cooling equipment. Its high static pressure and vast airflow volume quickly remove heat from server clusters. When combined with adaptive speed management, which dynamically adjusts fan speed based on server demand, it provides excellent cooling while decreasing energy usage. This efficiently reduces the data center's PUE value and provides a strong thermal management defense for steady server operation.

General Characters

1-1	Rated Voltage	24 VDC
1-2	Operating Voltage	16~28 VDC
1-3	Rated Speed	2750 RPM
1-4	Input Current	4.8 A
1-5	Input Power	115.2 W

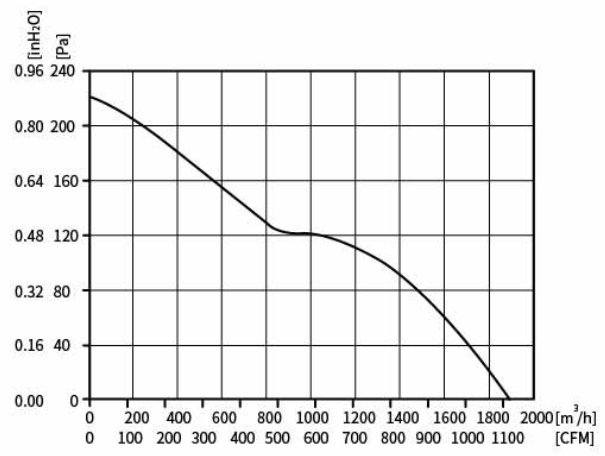

1-6	Air Flow	1118.15 CFM / 1900 M³/H
1-7	Static Pressure	0.88 inH₂O / 220 Pa
1-8	Acoustical Noise	69 dB(A)
1-9	Life Expectancy	50,000 Hours (L10) At 40℃ room, humidity 15%-65% RH.
1-10	Insulation Class	Class B
1-11	Motor Protection	Locked rotor protection Polarity protection Automatic restart capability
1-13	Speed Control	Control input 0~10VDC / PWM
1-14	Protection Type	IP44
1-15	Signal Output	FG (Frequency Generator)

Mechanical Characters

2-1	Dimension	Ø250 mm X 80 mm (see dimension drawing)
2-2	Material of Impeller	Cold rolled steel sheet
2-3	Number of Blades	7
2-4	Bearing System	NMB ball bearing
2-5	Lead Wire	DC (AWG20 #)
