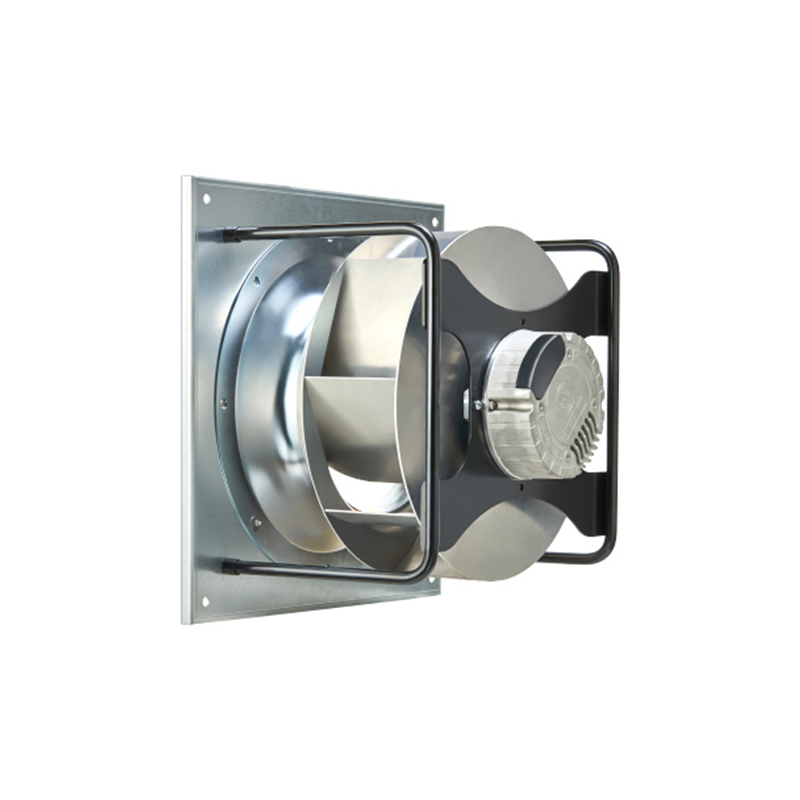

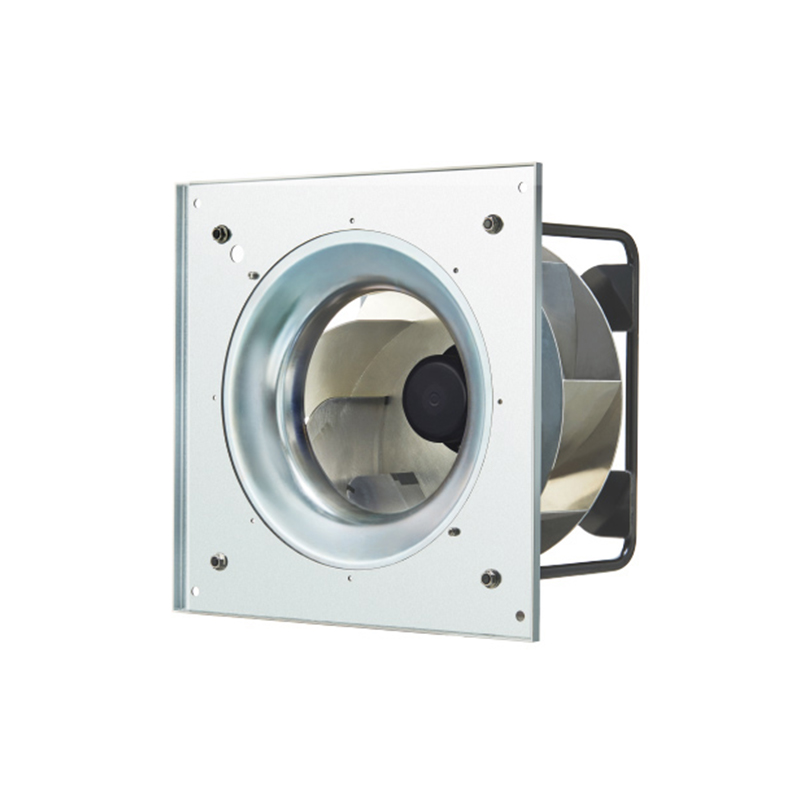

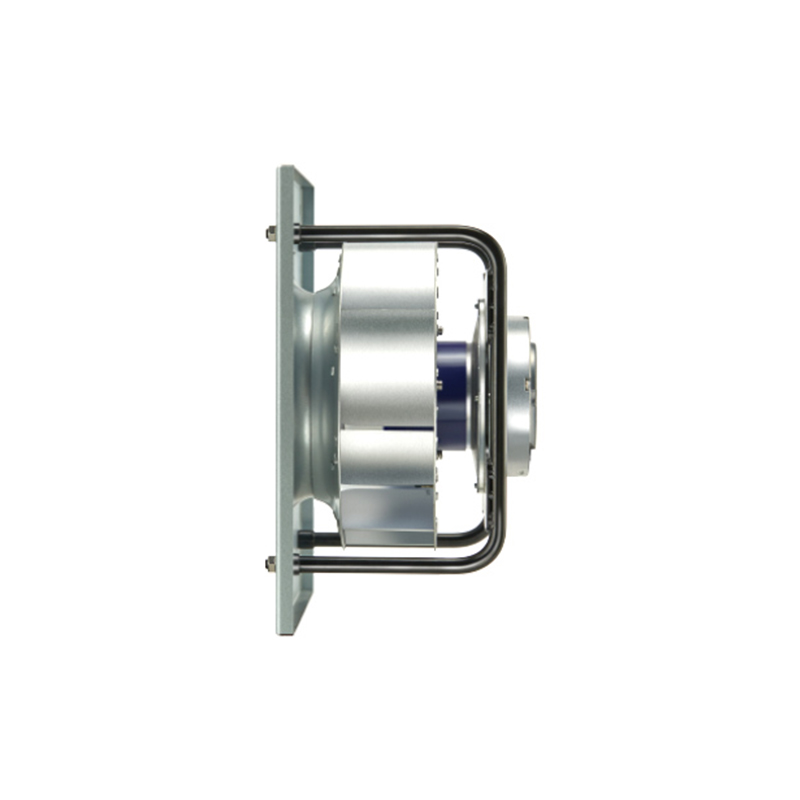

280mm EC-AC Backward Curved Centrifugal Fan with Bracket PK3N280B2E-YZ5 280mm EC-AC Backward Curved Centrifugal Fan with Bracket PK3N280B2E-YZ5

PBM FOCUS ON EC FAN ONLY. Certificate: CE,UL,ROHS; Supply Ability: 100,000 pcs per year; MOQ: 1~100 pcs based on EXW price; 100 pcs above based on FOB price.

Share this:

Technical Description

General Characters

1-1

Rated Voltage

230 VAC

1-2

Frequency

50/60 Hz

1-3

Operating Voltage

184~270 VAC

1-4

Rated Speed

3270 RPM

1-5

Input Current

3.2 A

1-6

Input Power

700 W

1-7

Air Flow

2236.30 CFM / 3800 m3/H

1-8

Static Pressure

6.40 inH2O / 1600 Pa

1-9

Acoustical Noise

85 dB(A)

1-10

Life Expectance

50,000 Hours(L10)

At 40℃ room, humidity 15%~65%RH.

1-11

Insulation Class

Class B

1-13

Motor Protection

Locked rotor protection

Polarity protection

Automatic restart capability

1-14

Speed Control

Control input 0~10VDC / PWM

1-15

Protection Type

IP55

1-17

Signal Output

FG (Frequency Generator)



Mechanical Characters

2-1

Dimension

400mm X 400mm X 273.5mm(see dimension drawing)

2-2

Material of Impeller

Aluminium alloy

2-3

Number of Blades

8

2-4

Bearing System

NMB ball bearing

2-5

Lead Wire

AC(AWG20#),DC(AWG22 #)



Environmental Characters

3-1

Operating Temperature

-25℃ to 60℃

3-2

Storage Temperature

-40℃ to 75℃

3-3

Operating Humidity

5% to 90% RH

3-4

Storage Humidity

5% to 95% RH





Curve and Draw

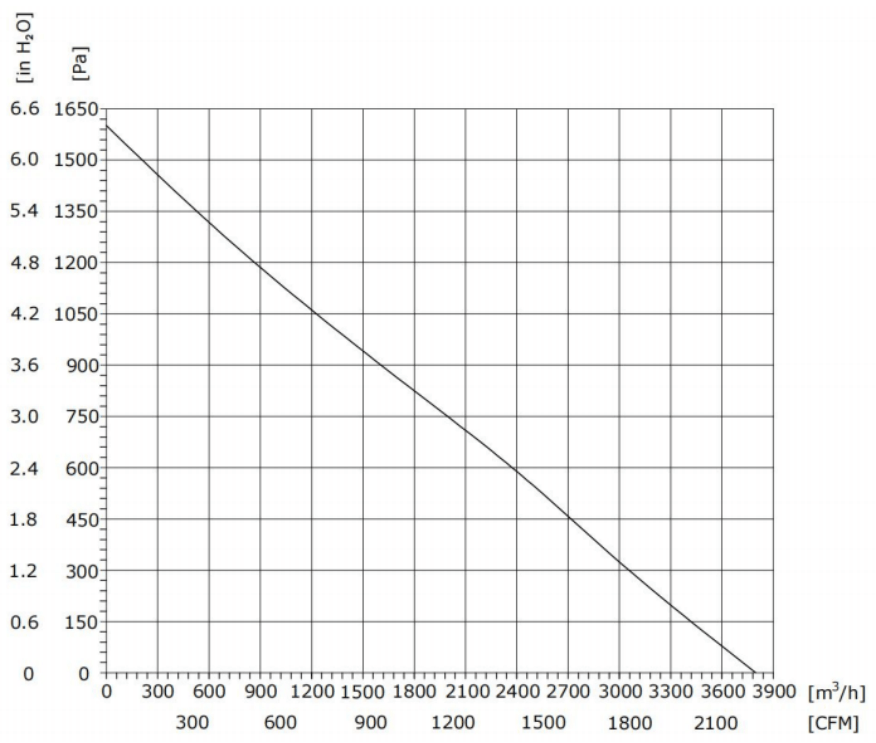

Performance Curve





Testing Condition:

Input Voltage----Operating voltage (230VAC/50Hz)

Temperature-----Room temperature

Humidity---------65%RH

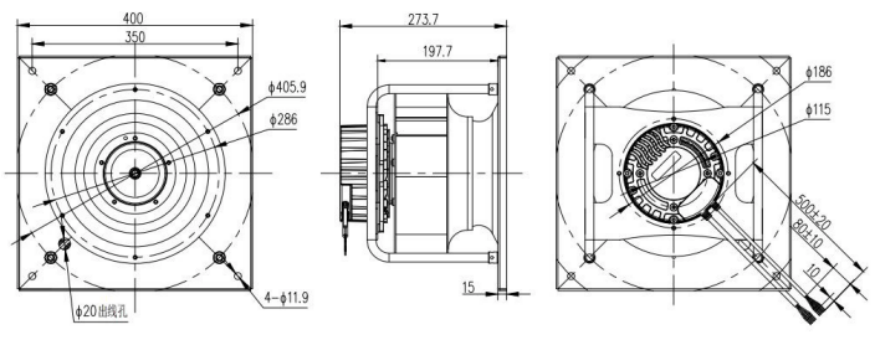

Outline Drawing



Note:

1.Connection line: AC(3×AWG18#)DC(4×AWG22#)

2.AC: Brown=Live LineBlue=Null LineGreen & Yellow=Protecting Earthing;White=NC,Gray=COM

3.DC: Red=Voltage Output +10VDC, Yellow=0-10VDC/PWM, White=FG, Blue=GND,, Brown=RSA,Gray=RSB
