300mm Waterproof IP55 EC-AC Axial Fan PG3N300B2E-MZ0

PBM FOCUS ON EC FAN ONLY. Certificate: CE,UL,ROHS; Supply Ability: 100,000 pcs per year; MOQ: 1~100 pcs based on EXW price; 100 pcs above based on FOB price.

Technical Description

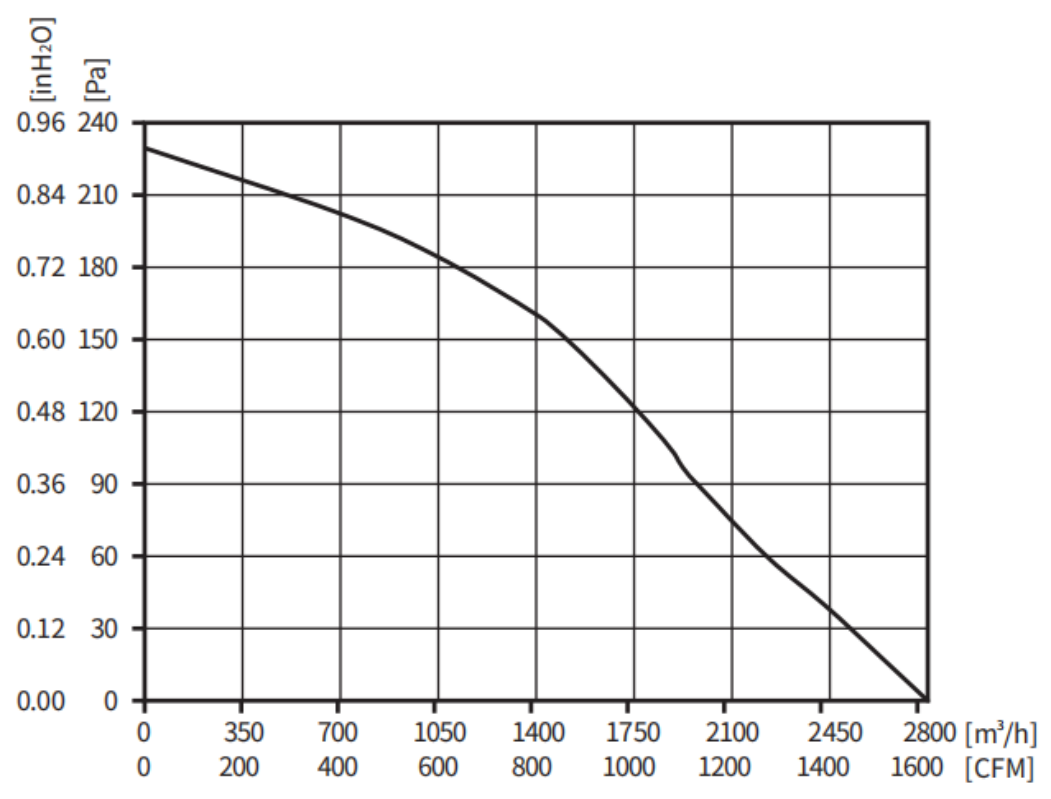

Curve and Draw

Certificate

Application Scopes

Packing Details

300mm EC axial fan made especially for LED Light Cooling is the PG3N300B2E-MZ0. Large outdoor and indoor LED displays produce a lot of heat during operation, and insufficient heat dissipation can cause light deterioration, color shift, and even damage to the LED chips. For this reason, it is frequently used for active cooling of the backplanes of LED displays. With its high static pressure of 230 Pa and ultra-large exhaust volume of 2800 m³/h (roughly 17% more than comparable standard products), the PG3N300B2E-MZ0 efficiently penetrates the narrow airflow channels at the back of the display module, rapidly removing heat from the surface of the LED chips. Stage smoke, dust, and sporadic liquid droplets are all tolerated by its IP55 high-protection certification.

To satisfy the various demands of LED lighting producers, PBM offers quick response solutions and technological output. OEM and ODM services are supported. With reduced energy usage, reduced moisture infiltration, and increased thermal dependability, PBM assists clients in the lighting sector in achieving energy-efficient cooling.

General Characters

1-1	Rated Voltage	230 VAC
1-2	Frequency	50/60 Hz
1-3	Operating Voltage	184~270 VAC
1-4	Rated Speed	2200 RPM
1-5	Input Current	1.5 A
1-6	Input Power	220 W
1-7	Air Flow	1647.80 CFM / 2800 M³/H
1-8	Static Pressure	0.94 inH₂O / 230 Pa
1-9	Acoustical Noise	68 dB(A)
1-10	Life Expectancy	50,000 Hours (L10) At 40℃ room, humidity 15%~65%RH.
1-11	Insulation Class	Class B
1-13	Motor Protection	Locked rotor protection Polarity protection Automatic restart capability
1-14	Speed Control	Control input 0~10VDC / PWM
1-15	Protection Type	IP55
1-17	Signal Output	FG (Frequency Generator)

Mechanical Characters

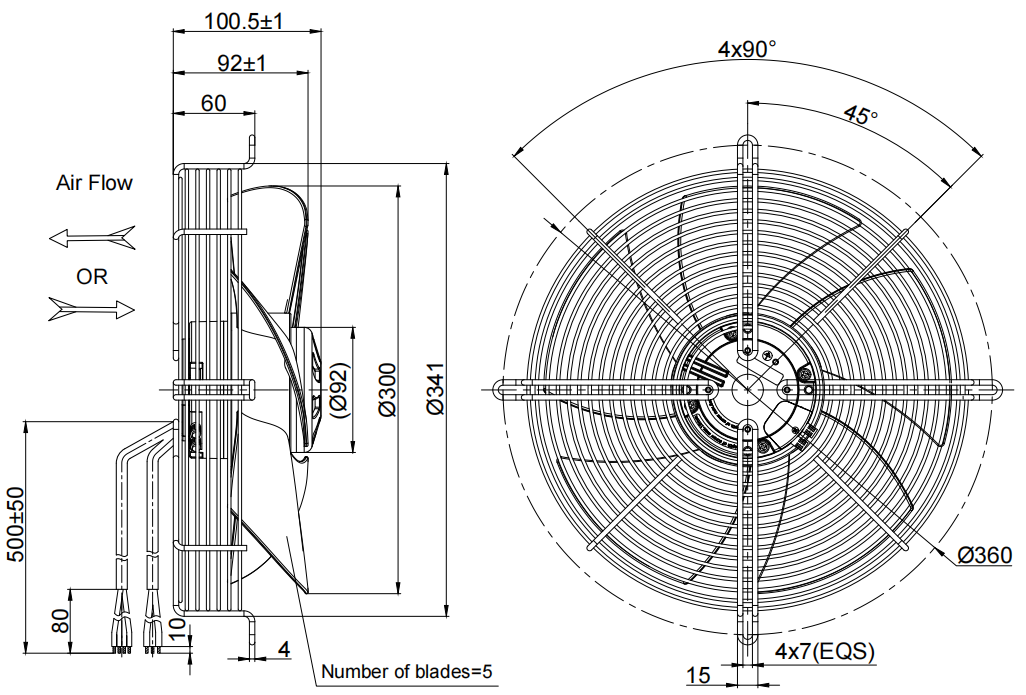

2-1	Dimension	Ø360 mm X 100.5 mm (see dimension drawing)
2-2	Material of Impeller	PA66+GF
2-3	Number of Blades	5
2-4	Bearing System	NMB ball bearing
2-5	Lead Wire	AC (AWG20#), DC (AWG24#)
