The Φ30x854mm ac cross flow fan PC30B2A854L is an AC-powered, low-noise, High Airflow Crossflow fan with an extra-long body and a tiny diameter. This ultra-thin, elongated, 230V crossflow fan produces a huge airflow (135m³/h), consistent laminar flow, low noise (36dB), and 18W of electricity. Its extended lifespan, aluminum alloy housing, strong temperature resistance, and extra-long, enlarged air exit are among its benefits. In home appliances like air conditioners or HVAC systems, such as wall-mounted units, floor-standing air conditioners, crossflow air curtains, fresh air systems, and Cross Flow Fan for Trench Heaters, it is perfect for situations requiring small spaces, consistent linear airflow, and quiet heat dissipation. Its extra-long 854mm body is ideal for long, thin devices like LED displays, baseboards, and air curtains. This AC cross flow cooling fan works with both home and office products.It does not need a power adapter.
The fan is very quiet with a noise level of 36 decibels.That makes it perfect for places like offices, hospitals and bedrooms where an AC cross flow cooling fan is used.The low noise level of the AC crossflow blower fan makes it suitable, for use in places where peace and quiet're important.
General Characters
|
1-1 |
Rated Voltage |
230 VAC |
|
1-2 |
Frequency |
50/60 Hz |
|
1-3 |
Rated Speed |
2400 RPM |
|
1-4 |
Input Current |
0.15 A |
|
1-5 |
Input Power |
18 W |
|
1-6 |
Acoustical Noise |
36 dBA |
|
1-7 |
Life Expectancy |
30,000 Hours At nominal supply voltage, full speed, room temperature 20 ℃. |
|
1-8 |
Direction of Rotation |
Clockwise seen on rotor |
|
1-9 |
Air Flow |
79.45 CFM / 135 m³/H |
|
1-10 |
Air Pressure |
1.73 mmH2O / 17 Pa |
Mechanical Characters
|
2-1 |
Dimension |
72mm X 48mm X 875mm (see dimension drawing) |
|
2-2 |
Material of Impeller |
Aluminum alloy |
|
2-3 |
Number of Blades |
28 |
|
2-4 |
Bearing System |
NMB ball bearing |
|
2-5 |
Lead Wire |
Red, Black, AWG #20 |
Environmental Characters
|
3-1 |
Operating Temperature |
-20℃ to 70℃ |
|
3-2 |
Storage Temperature |
-40℃ to 80℃ |
|
3-3 |
Operating Humidity |
5% to 90% RH |
|
3-4 |
Storage Humidity |
5% to 95% RH |

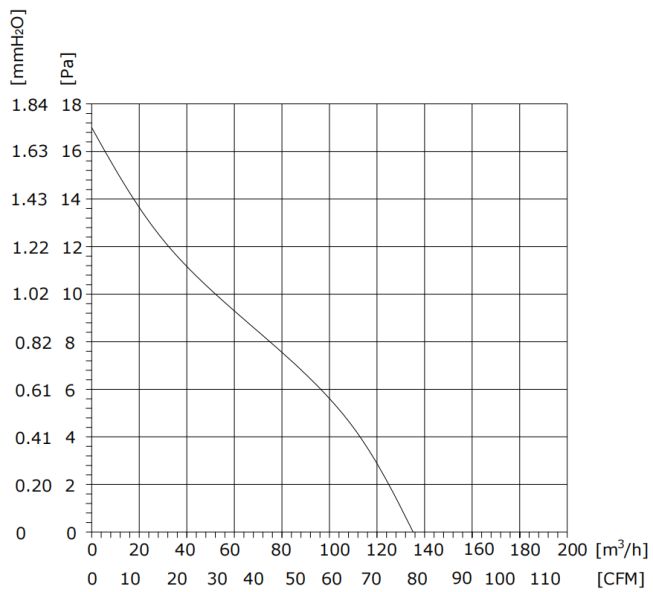

Performance Curve
Testing Condition:
Input Voltage----Operating voltage (230VAC/50Hz)
Temperature-----Room temperature
Humidity---------65%RH

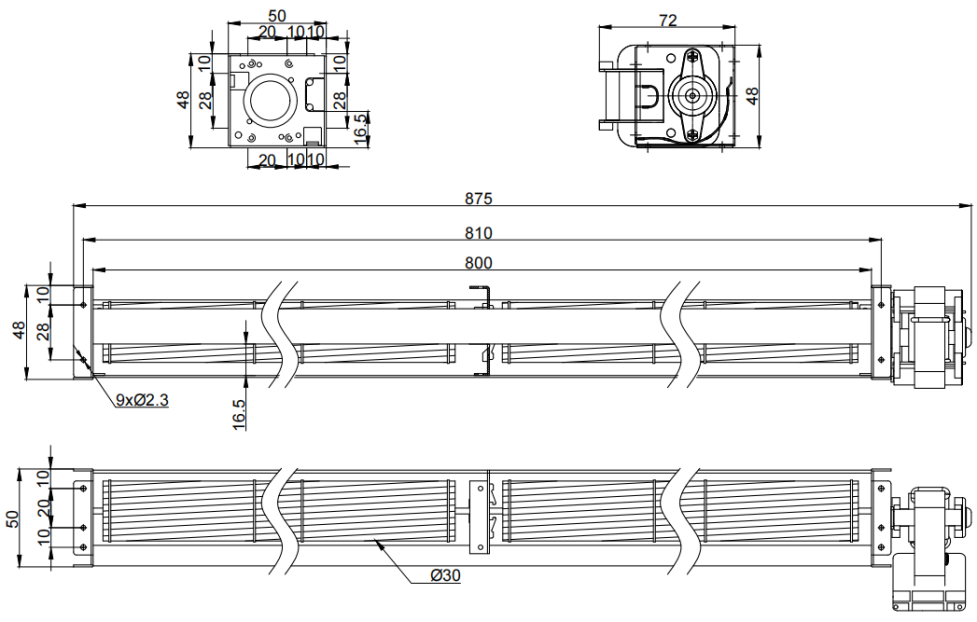

Outline Drawing
Note:
1.Connection line: Red, Black, AWG#20;
2.Red=Live Line, Black=Null line.
