The 310mm ec backward curved centrifugal fan from PBM is made especially for large-scale fresh air systems and air purification apparatus. It readily overcomes the resistance of HEPA filters and long-distance ducting by delivering an airflow of up to 2690 m³/h and a static pressure of 660 Pa using a 230V EC motor, ensuring clean air is equally disseminated to all regions. With a power consumption of around 350W, noise levels of ≤78 dB(A), and IP44 protection, the device may be installed in equipment rooms or ceilings. With an air quality sensor, it can run on demand and supports 0–10V/PWM speed control. It is appropriate for fresh air units and big air purifiers in shopping centers, hospitals, schools, and other comparable settings because of its 50,000-hour lifespan, which guarantees dependable ventilation in public spaces.
General Characters
|
1-1 |
Rated Voltage |
230 VAC |
|
1-2 |
Frequency |
50/60 Hz |
|
1-3 |
Operating Voltage |
184~270 VAC |
|
1-4 |
Rated Speed | 2300 RPM |
|
1-5 |
Input Current |
1.5 A |
|
1-6 |
Input Power |
350 W |
|
1-7 |
Air Flow |
1583.07 CFM / 2690 M³/H |
|
1-8 |
Static Pressure |
2.64 inH₂O / 660 Pa |
|
1-9 |
Acoustical Noise |
73 dB(A) |
|
1-10 |
Life Expectancy |
50,000 Hours (L10) At 40℃ room, humidity 15%~65%RH. |
|
1-11 |
Insulation Class |
Class B |
|
1-13 |
Motor Protection |
Locked rotor protection Polarity protection Automatic restart capability |
|
1-14 |
Speed Control |
Control input 0~10VDC / PWM |
|
1-15 |
Protection Type |
IP44 |
|
1-17 |
Signal Output |
FG (Frequency Generator) |
Mechanical Characters
|
2-1 |
Dimension |
Ø 310 mm X 170 mm (see dimension drawing) |
|
2-2 |
Material of Impeller |
Aluminum Sheet |
|
2-3 |
Number of Blades |
6 |
|
2-4 |
Bearing System |
NMB ball bearing |
|
2-5 |
Lead Wire |
AC (AWG18 #), DC (AWG22 #) |
Environmental Characters
|
3-1 |
Operating Temperature |
-25℃ to 60℃ |
|
3-2 |
Storage Temperature |
-40℃ to 75℃ |
|
3-3 |
Operating Humidity |
5% to 90% RH |
|
3-4 |
Storage Humidity |
5% to 95% RH |

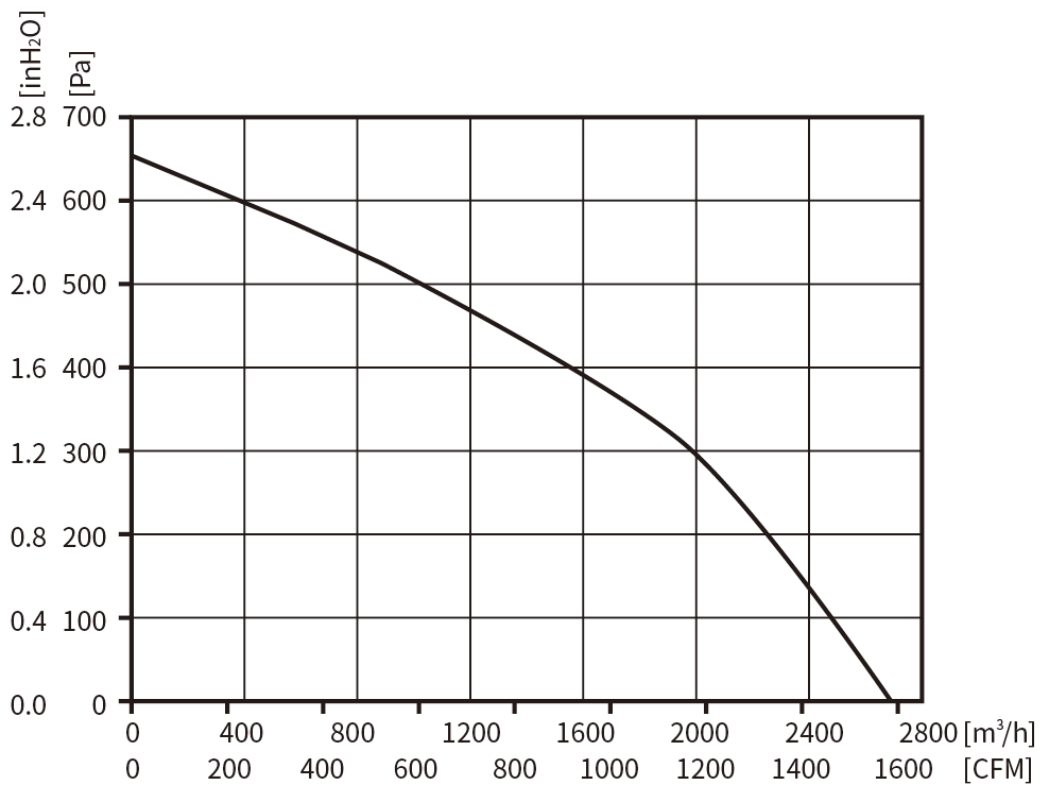

Performance Curve
Testing Condition:
Input Voltage----Operating voltage (230VAC/50Hz)
Temperature-----Room temperature
Humidity---------65%RH

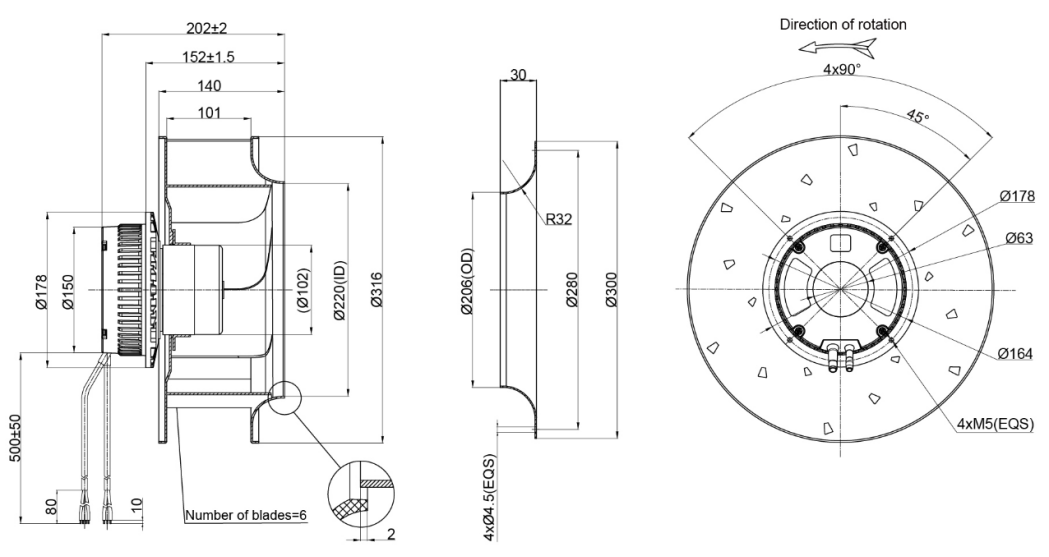

Outline Drawing
Note:
1.Connection line: AC(3×AWG18#)，DC(4×AWG22#)
2.AC: Brown=Live Line，Blue=Null Line，Green & Yellow=Protecting Earthing;
3.DC: Red=Voltage Output +10VDC, Yellow=0-10VDC/PWM, White=FG, Blue=GND;
