400mm EC reverse centrifugal fan PB3N400B2EX is made especially for air handling units (AC units) and central air conditioning units (AHUs). It has a very efficient EC motor that is powered directly by 230V AC mains. Under all operating circumstances, it offers notable energy savings of 30% to 50% when compared to conventional AC asynchronous motors with the same specifications. The motor itself creates extremely little heat, resulting in minimum waste heat discharged into the circulating air, therefore not increasing the internal thermal load of the AHU and keeping exact control of the supply air temperature.
PMB specializes in the development and production of superior EC/DC fans and intelligent airflow systems. To satisfy the various demands of manufacturers of AHU equipment and central air conditioning units, PBM provides a range of specialized services.
General Characters
|
1-1 |
Rated Voltage |
230 VAC |
|
1-2 |
Frequency |
50/60 Hz |
|
1-3 |
Operating Voltage |
184~270 VAC |
|
1-4 |
Rated Speed | 1360 RPM |
|
1-5 |
Input Current |
1.3 A |
|
1-6 |
Input Power |
300 W |
|
1-7 |
Air Flow |
2236.30 CFM / 3800 M³/H |
|
1-8 |
Static Pressure |
2.24 inH₂O / 560 Pa |
|
1-9 |
Acoustical Noise |
72 dB(A) |
|
1-10 |
Life Expectancy |
50,000 Hours (L10) At 40℃ room, humidity 15%~65%RH. |
|
1-11 |
Insulation Class |
Class B |
|
1-13 |
Motor Protection |
Locked rotor protection Polarity protection Automatic restart capability |
|
1-14 |
Speed Control |
Control input 0~10VDC / PWM |
|
1-15 |
Protection Type |
IP44 |
|
1-17 |
Signal Output |
FG (Frequency Generator) |
Mechanical Characters
|
2-1 |
Dimension |
Ø 400 mm X 230 mm (see dimension drawing) |
|
2-2 |
Material of Impeller |
Aluminium Sheet |
|
2-3 |
Number of Blades |
6 |
|
2-4 |
Bearing System |
NMB ball bearing |
|
2-5 |
Lead Wire |
AC (AWG18 #), DC (AWG22 #) |
Environmental Characters
|
3-1 |
Operating Temperature |
-25℃ to 60℃ |
|
3-2 |
Storage Temperature |
-40℃ to 75℃ |
|
3-3 |
Operating Humidity |
5% to 90% RH |
|
3-4 |
Storage Humidity |
5% to 95% RH |

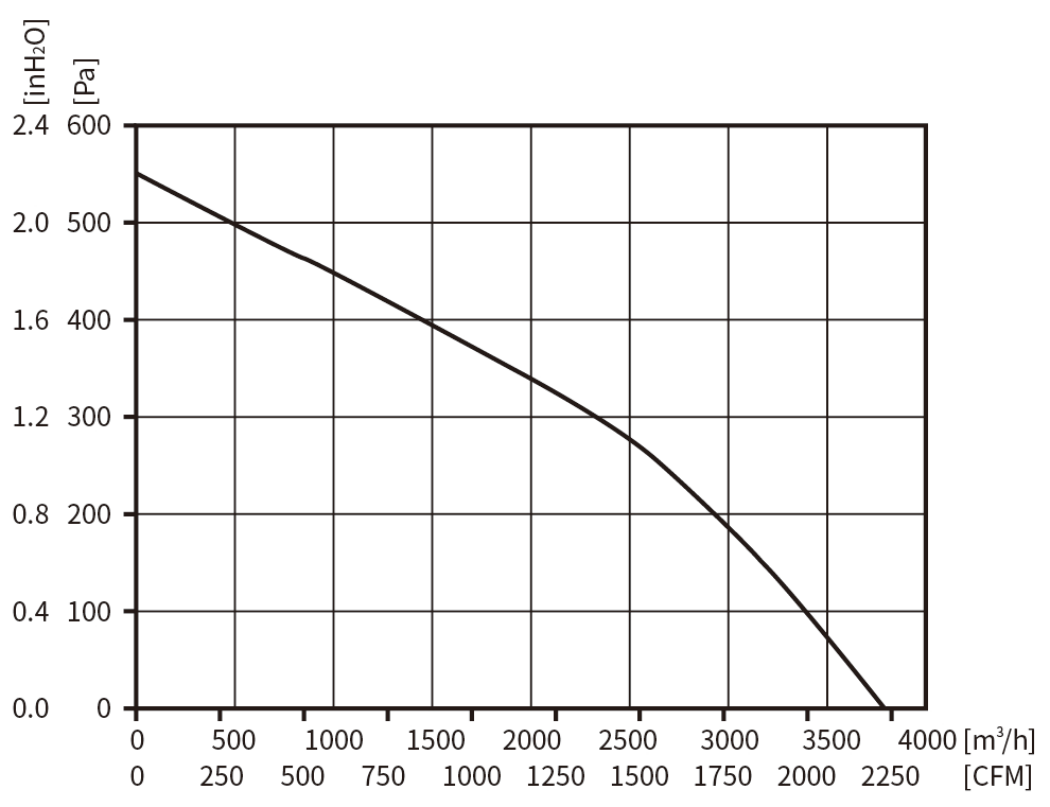

Performance Curve
Testing Condition:
Input Voltage----Operating voltage (230VAC/50Hz)
Temperature-----Room temperature
Humidity---------65%RH

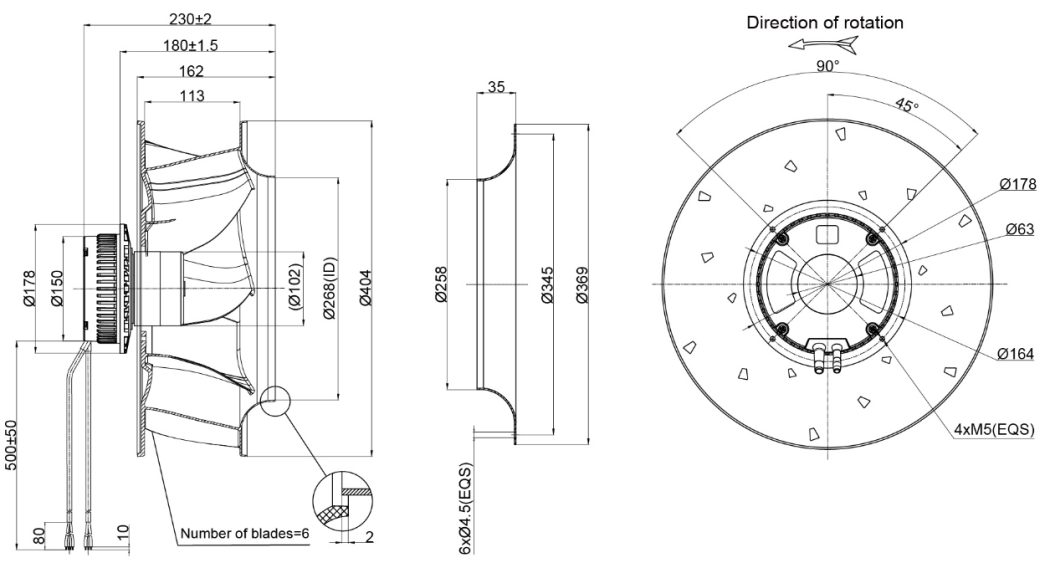

Outline Drawing
Note:
1.Connection line: AC(3×AWG18#)，DC(4×AWG22#)
2.AC: Brown=Live Line，Blue=Null Line，Green & Yellow=Protecting Earthing;
3.DC: Red=Voltage Output +10VDC, Yellow=0-10VDC/PWM, White=FG, Blue=GND;
