355mm EC bracket fan made especially for machine tools (such as CNC lathes, milling machines, machining centers, grinding machines, stamping machines, and other metal cutting and shaping equipment) is the PK3N355B2E-ZW5. Its high-efficiency EC motor, which is directly powered by AC mains and has integrated rectifier and inverter modules, is more than 30% more efficient than conventional AC asynchronous motors. With its 0~10VDC/PWM dual-mode stepless speed regulation, it can precisely dissipate heat and save energy by adjusting airflow in real-time based on cabinet temperature and machine tool spindle load. Heat sinks and filters in the control cabinet are readily overcome by the aluminum alloy backward-curved impeller (8 blades) with excellent aerodynamics, which provides steady airflow even at high static pressure levels of 1080 Pa. In order to ensure long-term stable operation in oil mist and dusty environments at machine tool processing sites, the entire unit receives an IP55 protection rating, with a dustproof rating of 5, completely preventing dust intrusion, and a waterproof rating of 5 to withstand continuous low-pressure water spray.
PBM is an expert in the development and production of superior EC/DC fans and intelligent airflow solutions. Our goods have earned reputable certifications like CE, UL, and RoHS and are made to comply with worldwide safety requirements. On demand, we provide OEM customization services such as silencer accessory adaptations, ATEX explosion-proof upgrades, corrosion-resistant surface treatments, and specialized wiring solutions. In addition to manufacturing fans, PBM offers industrial ventilation and thermal management systems.
General Characters
|
1-1 |
Rated Voltage |
230 VAC |
|
1-2 |
Frequency |
50/60 Hz |
|
1-3 |
Operating Voltage |
184~270 VAC |
|
1-4 |
Rated Speed | 2150 RPM |
|
1-5 |
Input Current |
3.0 A |
|
1-6 |
Input Power |
700 W |
|
1-7 |
Air Flow |
3177.90 CFM / 5400 M³/H |
|
1-8 |
Static Pressure |
4.32 inH₂O / 1080 Pa |
|
1-9 |
Acoustical Noise |
84 dB(A) |
|
1-10 |
Life Expectancy |
50,000 Hours (L10) At 40℃ room, humidity 15%~65%RH. |
|
1-11 |
Insulation Class |
Class F |
|
1-13 |
Motor Protection |
Locked rotor protection Polarity protection Automatic restart capability |
|
1-14 |
Speed Control |
Control input 0~10VDC / PWM |
|
1-15 |
Protection Type |
IP55 |
|
1-17 |
Signal Output |
FG (Frequency Generator) |
Mechanical Characters
|
2-1 |
Dimension |
550 mm X 550mm X 322mm (see dimension drawing) |
|
2-2 |
Material of Impeller |
Aluminium sheet |
|
2-3 |
Number of Blades |
8 |
|
2-4 |
Bearing System |
NMB ball bearing |
|
2-5 |
Lead Wire |
AC (AWG18#), DC (AWG24#) |
Environmental Characters
|
3-1 |
Operating Temperature |
-25℃ to 60℃ |
|
3-2 |
Storage Temperature |
-40℃ to 75℃ |
|
3-3 |
Operating Humidity |
5% to 90% RH |
|
3-4 |
Storage Humidity |
5% to 95% RH |
Performance Curve
Testing Condition:
Input Voltage----Operating voltage (230VAC/50Hz)
Temperature-----Room temperature
Humidity---------65%RH

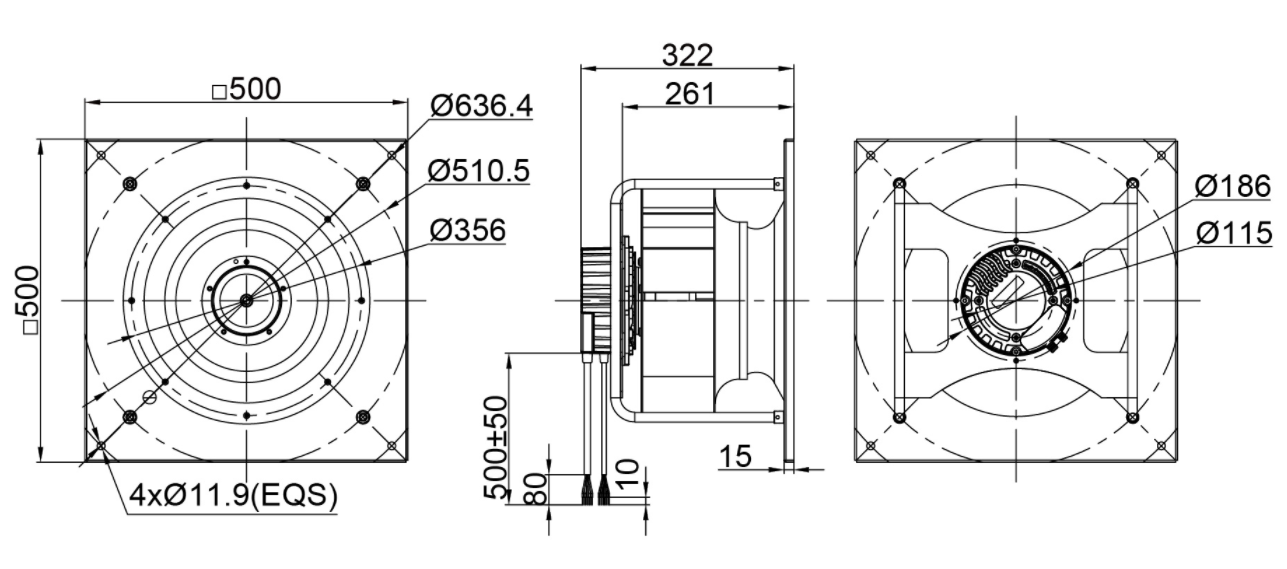

Outline Drawing
Note:
1.Connection line: AC(5×AWG18#)，DC(6×AWG24#)
2.AC: Brown=Live Line，Black=Null Line，Green & Yellow=Protecting Earthing,White=NC，Gray=COM;
3.DC: Red=Voltage Output +10VDC, Yellow=0-10VDC/PWM, Blue=GND, White=Tach output, Brown=RSA, Gray=RSB ;
