Φ43x348mm DC Cross Flow Fan PC43B24348A Φ43x348mm DC Cross Flow Fan PC43B24348A

PBM FOCUS ON EC FAN ONLY. Certificate: CE,UL,ROHS; Supply Ability: 100,000 pcs per year; MOQ: 1~100 pcs based on EXW price; 100 pcs above based on FOB price.

Share this:

Technical Description

General Characters

1-1

Rated Voltage

24 VDC

1-2

Operating Voltage

16~28 VDC

1-3

Rated Speed

2600 RPM

1-4

Input Current

1.0 A

1-5

Input Power

6 W

1-6

   Air Flow

108.87 CFM / 185 m3/H

1-7

Static Pressure

1.84 mmH2O / 18 Pa

1-8

Acoustical Noise

39 dB(A)

1-9

Life Expectance

50,000 Hours(L10)

At 40℃ room, humidity 15%~65%RH.

1-10

Insulation Class

Class B

1-11

Motor Protection

Locked rotor protection

Polarity protection

Automatic restart capability

1-12

Speed Control

Control input 0~10VDC / PWM

1-13

Protection Type

IP44

1-14

Signal Output

FG (Frequency Generator)



Mechanical Characters

2-1

Dimension

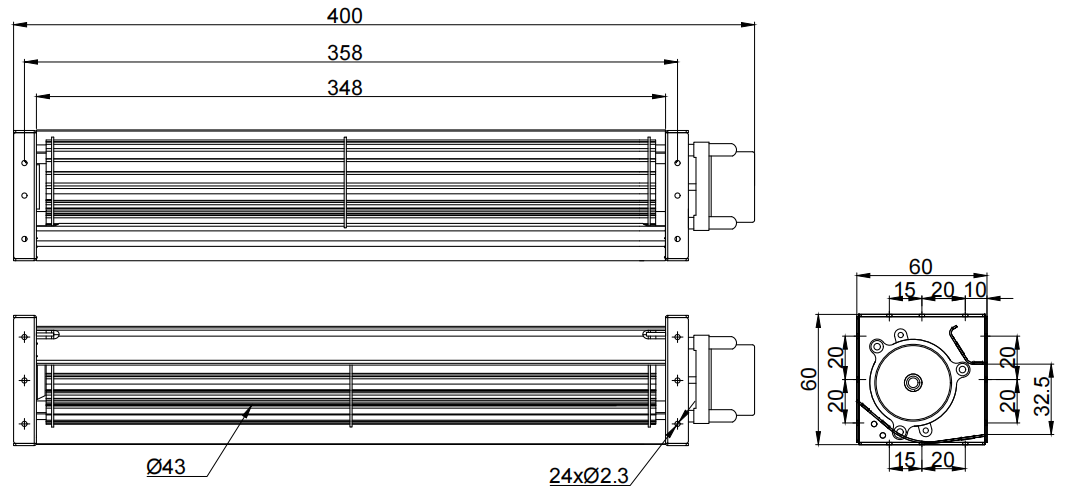

60mm X 60mm X 400mm (see dimension drawing)

2-2

Material of Impeller

Aluminum alloy

2-3

Number of Blades

22

2-4

Bearing System

NMB ball bearing

2-5

Lead Wire

Red , Black, White AWG22#



Environmental Characters

3-1

Operating Temperature

-25℃ to 60℃

3-2

Storage Temperature

-40℃ to 75℃

3-3

Operating Humidity

5% to 90% RH

3-4

Storage Humidity

5% to 95% RH





Curve and Draw

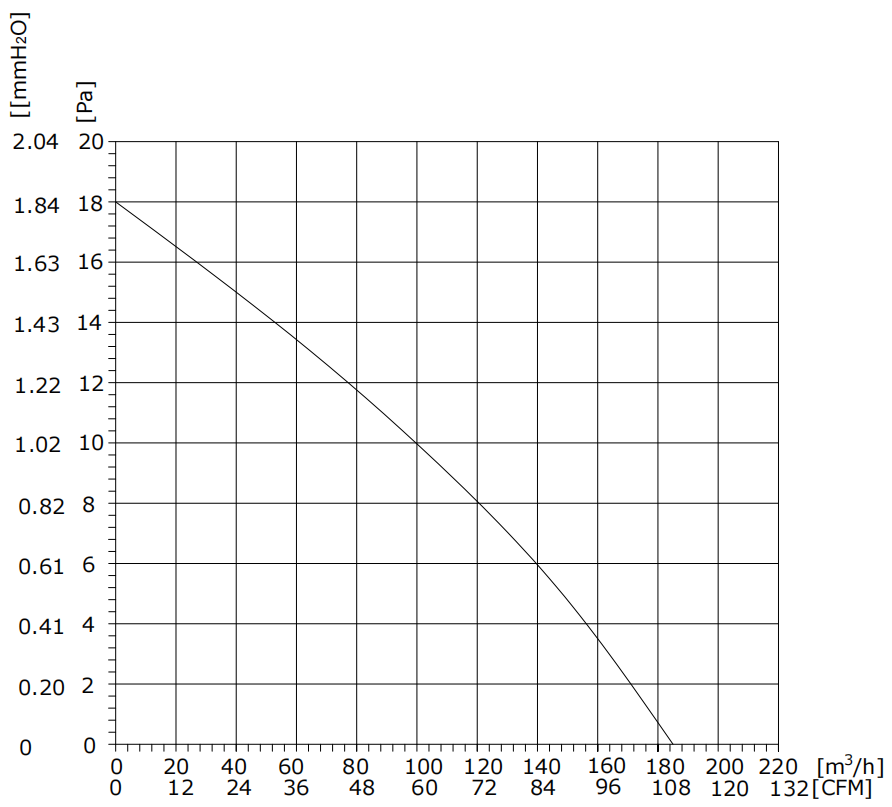

Performance Curve

Input Voltage----Operating voltage (24 VDC)

Temperature-----Room temperature

Humidity---------65%RH

Test distance-----1m



Note:

1. Connection line 3X (Red, Black, White AWG22#);

Red=+24VDC, White=0-10VDC, Blue=GND.
