Φ50x250mm AC Cross Flow Fan PC50B1A250A

Name: Φ50x250mm AC Cross Flow Fan PC50B1A250A
Brand: PBM
SKU: Φ50
Price: 45.00 USD
Availability: InStock

PBM FOCUS ON EC FAN ONLY. Certificate: CE,UL,ROHS; Supply Ability: 100,000 pcs per year; MOQ: 1~100 pcs based on EXW price; 100 pcs above based on FOB price.

Technical Description

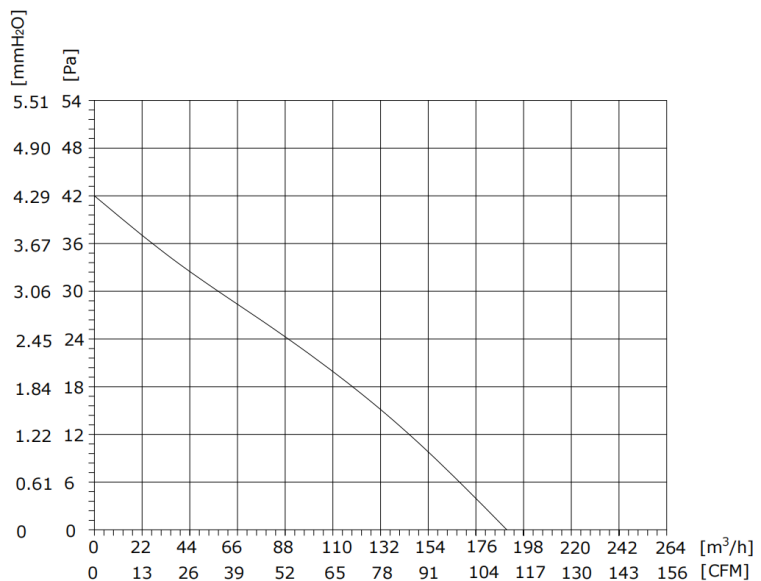

Curve and Draw

Certificate

Application Scopes

Packing Details

For wide-width laminar air supply situations such as air conditioning systems, home appliances, and refrigerated display cabinets, the PC50B1A250A 50mm AC cross flow fan is a very dependable AC drive option. Its large air outlet, low noise, and flat shape are fully exploited in air conditioning systems and refrigerated display cabinets. This AC solution may be immediately linked to ordinary mains power without the need for extra power adapters or driver boards, which simplifies system BOM design and lowers total material costs when compared to DC crossflow fan. System integrators may dynamically modify the fan speed in response to changes in room temperature or real-time heat load thanks to the system's support for 0~10V DC/PWM dual-mode stepless speed control input, which significantly lowers the system's overall energy consumption when compared to conventional fixed-speed AC fans.
We accomplish a smooth connection with your control system, such as the air conditioning main control board, and satisfy a variety of OEM assembly requirements. PBM's technical sales team will offer you complete engineering support from sample confirmation to mass production delivery, combining the dependability of standard products with the flexibility of customized products, whether you are developing an air conditioning system or a refrigeration display cabinet.For wide-width laminar air supply situations such air conditioning systems, home appliances, and refrigerated display cabinets, the PC50B1A250A 50mm AC cross flow fan is a very dependable AC drive option. Its large air outlet, low noise, and flat shape are fully exploited in air conditioning systems and refrigerated display cabinets. This AC solution may be immediately linked to ordinary mains power without the need for extra power adapters or driver boards, which simplifies system BOM design and lowers total material costs when compared to DC crossflow fan. System integrators may dynamically modify the fan speed in response to changes in room temperature or real-time heat load thanks to the system's support for 0~10V DC/PWM dual-mode stepless speed control input, which significantly lowers the system's overall energy consumption when compared to conventional fixed-speed AC fans.
We accomplish a smooth connection with your control system, such as the air conditioning main control board, and satisfy a variety of OEM assembly requirements. PBM's technical sales team will offer you complete engineering support from sample confirmation to mass production delivery, combining the dependability of standard products with the flexibility of customized products, whether you are developing an air conditioning system or a refrigeration display cabinet.

General Characters

1-1	Rated Voltage	115 VAC
1-2	Frequency	50/60 Hz
1-3	Rated Speed	3000 RPM
1-4	Input Current	0.38 A
1-5	Input Power	19.7 W
1-6	Acoustical Noise	44 dBA
1-7	Life Expectancy	30,000 Hours At nominal supply voltage, full speed room temperature 20℃.
1-8	Direction of Rotation	Clockwise seen on rotor
1-9	Air Flow	111.82 CFM / 190 m³/H
1-10	Air Pressure	4.29 mmH₂O / 42 Pa

Mechanical Characters

2-1	Dimension	65 mm X 73mm X 318 mm (see dimension drawing)
2-2	Material of Impeller	Aluminum alloy
2-3	Number of Blades	28
2-4	Bearing System	NMB ball bearing
2-5	Lead Wire	Red, Black, AWG #20
