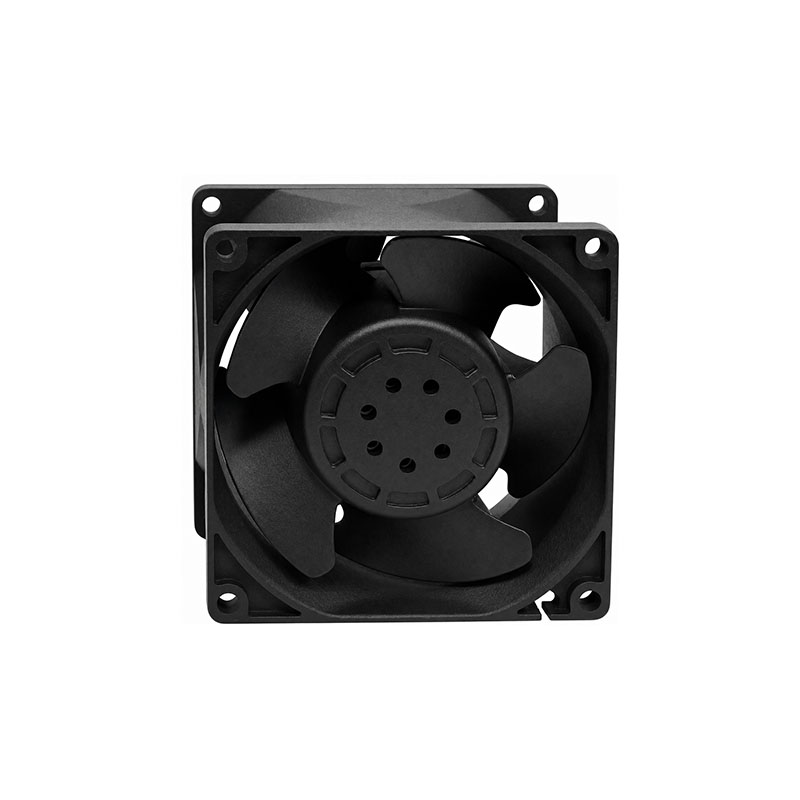

80x80x38mm EC-DC Axial Fan PA8038B48G

Name: 80x80x38mm EC-DC Axial Fan PA8038B48G
Brand: PBM
Price: 45.00 USD
Availability: InStock

PBM FOCUS ON EC FAN ONLY. Certificate: CE,UL,ROHS; Supply Ability: 100,000 pcs per year; MOQ: 1~100 pcs based on EXW price; 100 pcs above based on FOB price.

Technical Description

Curve and Draw

Certificate

Application Scopes

Packing Details

The PA8038B48G 80x80x38mm EC-DC compact axial fan is a high-performance compact cooling fan designed for applications requiring high airflow and high static pressure in limited installation spaces. Featuring a brushless DC external rotor motor, this fan delivers reliable performance, efficient operation, and long service life.

With a rated voltage of 48VDC and a high-speed operation up to 16,000 RPM, the PA8038B24G provides an airflow of 224.4m³/h and a maximum static pressure of 1220Pa, making it suitable for high-resistance cooling systems. The compact 80mm frame size and optimized axial impeller design allow easy integration into industrial equipment and electronic cooling applications.

This compact axial fan is widely used in industrial control systems, communication equipment, power electronics, medical devices, and HVAC applications where efficient heat dissipation and stable airflow performance are required. PBM provides customized EC/DC axial fan solutions with flexible options for voltage, connector, and performance requirements, supporting customers from prototype validation to mass production.

General Characters

1-1	Rated Voltage	48 VDC
1-2	Frequency	/
1-3	Operating Voltage	28-56 VDC
1-4	Rated Speed	16000 RPM
1-5	Input Current	1.3 A
1-6	Input Power	62.4 W
1-7	Airflow	224.4 M³/H
1-8	Static Pressure	1220 Pa
1-9	Acoustical Noise	74 dB(A)
1-10	Life Expectancy	50,000 Hours（L10） At 40℃ room，humidity 15%～65%RH.
1-11	Insulation Class	Class A
1-13	Motor Protection	/
1-14	Speed Control	/
1-15	Protection Type	/
1-17	Signal Output	/

Mechanical Characters

2-1	Dimension	80x80x38 mm (See dimension drawing)
2-2	Material of Impeller	Plastic
2-3	Bearing System	Ball bearing
2-4	Lead Wire	Red,Black L=300mm

Environmental Characters

3-1	Operating Temperature	-10℃ to 60℃
3-2	Storage Temperature	-40℃ to 75℃
3-3	Operating Humidity	30% to 95% RH
3-4	Storage Humidity	30% to 95% RH

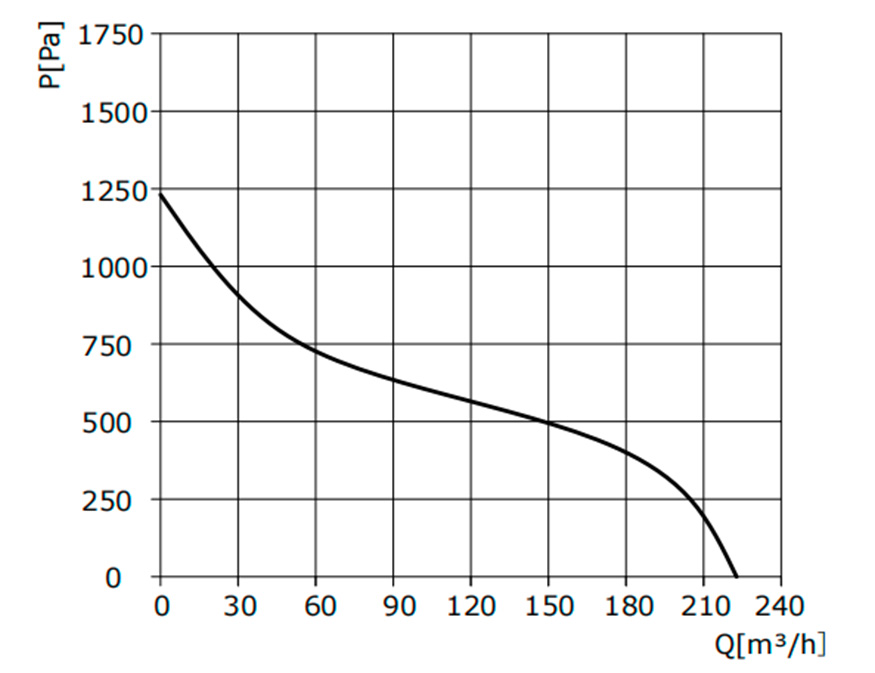

Performance Curve

Testing Condition:

Input Voltage----Operating voltage (12VDC)

Temperature-----Room temperature

Humidity---------65%RH

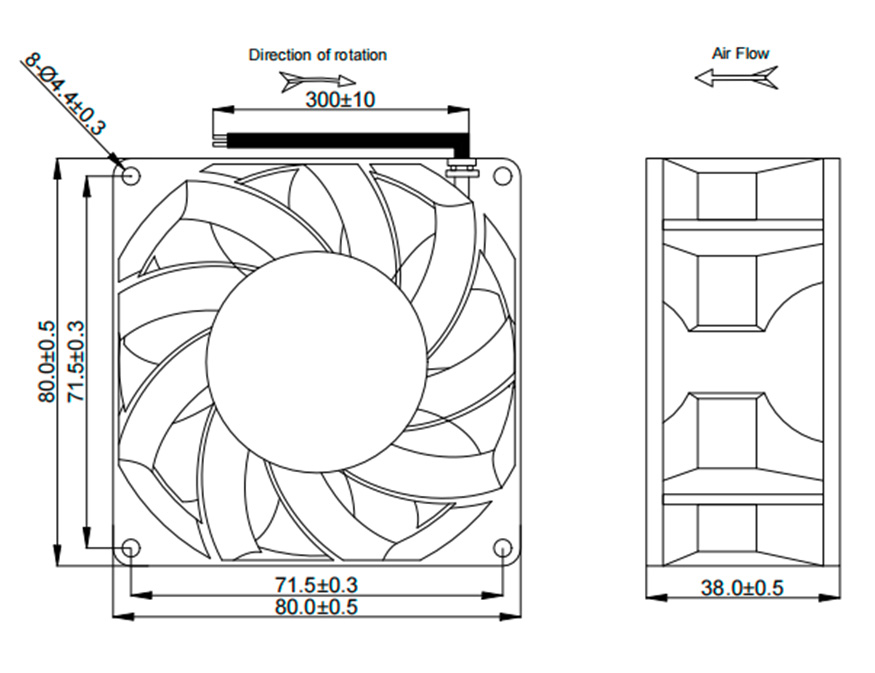

Outline Drawing

Note:

1.Connection line: Red,Black

Red=+,Black=GND;

3.Connecter;/
