097mm EC-DC Single Inlet Blower PS3N097B48M

Name: 097mm EC-DC Single Inlet Blower PS3N097B48M
Brand: PBM
SKU: BE53DC
Price: 45.00 USD
Availability: InStock

PBM FOCUS ON EC FAN ONLY. Certificate: CE,UL,ROHS; Supply Ability: 100,000 pcs per year; MOQ: 1~100 pcs based on EXW price; 100 pcs above based on FOB price.

Technical Description

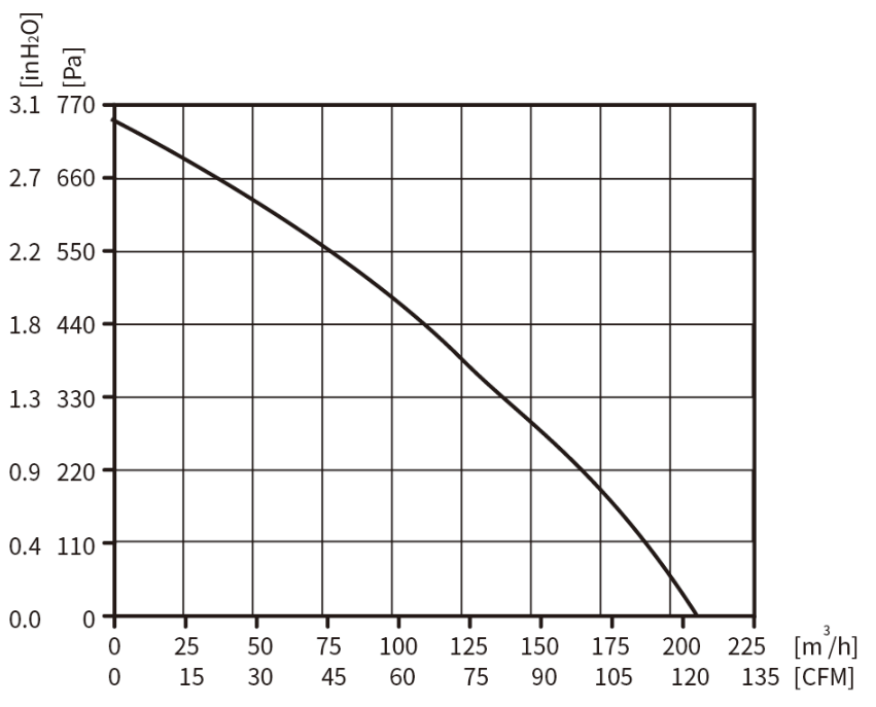

Curve and Draw

Certificate

Application Scopes

Packing Details

PS3N097B48M is a 97mm DC Single Inlet Blower made especially for portable air conditioners, mobile air conditioners, personal air conditioners, automobile air conditioners, RV air conditioners, and camping air conditioners. It can also be used in a variety of other small, low-noise refrigeration devices and equipment, including dehumidifiers, wine coolers, automobile refrigerators, small freezers, electronic refrigerated water dispensers, and medical refrigerators that use compressor or semiconductor cooling systems.

PBM specializes in the development and production of superior EC/DC fans and intelligent airflow solutions that support wine coolers, portable air conditioners, dehumidifiers, and other small refrigeration equipment. PBM provides several extensive customization possibilities for small and portable items.

General Characters

1-1	Rated Voltage	48 VDC
1-2	Operating Voltage	36~57 VDC
1-3	Rated Speed	3650 RPM
1-4	Input Current	1.6 A
1-5	Input Power	76.8 W
1-6	Air Flow	123.59 CFM / 210 M³/H
1-7	Static Pressure	2.96 inH₂O / 740 Pa
1-8	Acoustical Noise	67 dB(A)
1-9	Life Expectancy	50,000 Hours (L10) At 40℃ room, humidity 15%~65%RH.
1-10	Insulation Class	Class B
1-11	Motor Protection	Locked rotor protection Polarity protection Automatic restart capability
1-13	Speed Control	Control input 0~10VDC / PWM
1-14	Protection Type	IP44
1-15	Signal Output	FG (Frequency Generator)

Mechanical Characters

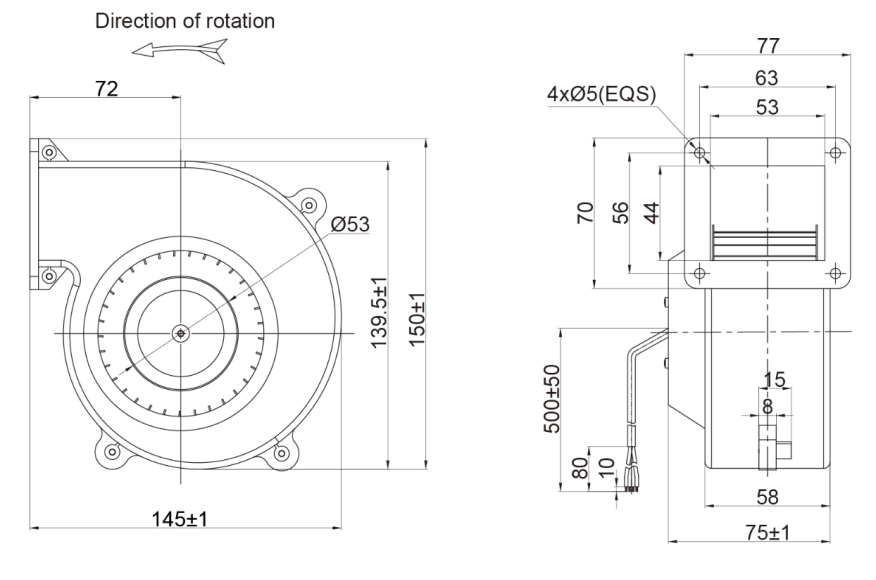

2-1	Dimension	145 mm X 150 mm X 77 mm (see dimension drawing)
2-2	Material of Impeller	PA6+GF
2-3	Number of Blades	34
2-4	Bearing System	NMB ball bearing
2-5	Lead Wire	DC (AWG20 #)
