Chinese kitchens require strict ventilation because of their high heat and thick oil fumes. With an airflow of 680 m³/h and a static pressure of 590 Pa, this 150mm EC duct fan overcomes the resistance of lengthy ducts and bends to guarantee quick fume extraction. It can run continuously since it has a high-efficiency EC motor and only uses 85 W, saving around 30% more energy than conventional AC fans. After ceiling installation, the noise level is ≤78 dB(A), reducing interference. The impeller has a 50,000-hour lifespan and is built of galvanized steel with NMB ball bearings. Its IP55 protection certification makes it resistant to moisture and grease. It allows for flexible exhaust volume adjustment based on cooking intensity and enables 0-10V/PWM stepless speed regulation. Automatic restart and integrated stall protection provide dependability and safety. Duct fan for kitchen is a perfect option for effective and energy-efficient fume extraction in home open kitchens, restaurant kitchens, canteens, and hotel kitchens.
General Characters
|
1-1 |
Rated Voltage |
230 VAC |
|
1-2 |
Frequency |
50/60 Hz |
|
1-3 |
Operating Voltage |
184~270 VAC |
|
1-4 |
Rated Speed |
2650 RPM |
|
1-5 |
Input Current |
0.65 A |
|
1-6 |
Input Power |
85 W |
|
1-7 |
Air Flow |
300.18 CFM / 680 m³/H |
|
1-8 |
Static Pressure |
2.36 inH₂O / 590 Pa |
|
1-9 |
Acoustical Noise |
66 dB(A) |
|
1-10 |
Life Expectancy |
50,000 Hours (L10) At 40℃ room, humidity 15%~65%RH. |
|
1-11 |
Insulation Class |
Class B |
|
1-13 |
Motor Protection |
Locked rotor protection Polarity protection Automatic restart capability |
|
1-14 |
Speed Control |
Control input 0~10VDC / PWM |
|
1-15 |
Protection Type |
IP55 |
|
1-17 |
Signal Output |
FG (Frequency Generator) |
Mechanical Characters
|
2-1 |
Dimension |
384 mm X 396mm X 236mm (see dimension drawing) |
|
2-2 |
Material of Impeller |
PA66+25%GF |
|
2-3 |
Number of Blades |
7 |
|
2-4 |
Bearing System |
NMB ball bearing |
|
2-5 |
Lead Wire |
AC (AWG20#), DC (AWG22 #) |
Environmental Characters
|
3-1 |
Operating Temperature |
-25℃ to 60℃ |
|
3-2 |
Storage Temperature |
-40℃ to 75℃ |
|
3-3 |
Operating Humidity |
5% to 90% RH |
|
3-4 |
Storage Humidity |
5% to 95% RH |

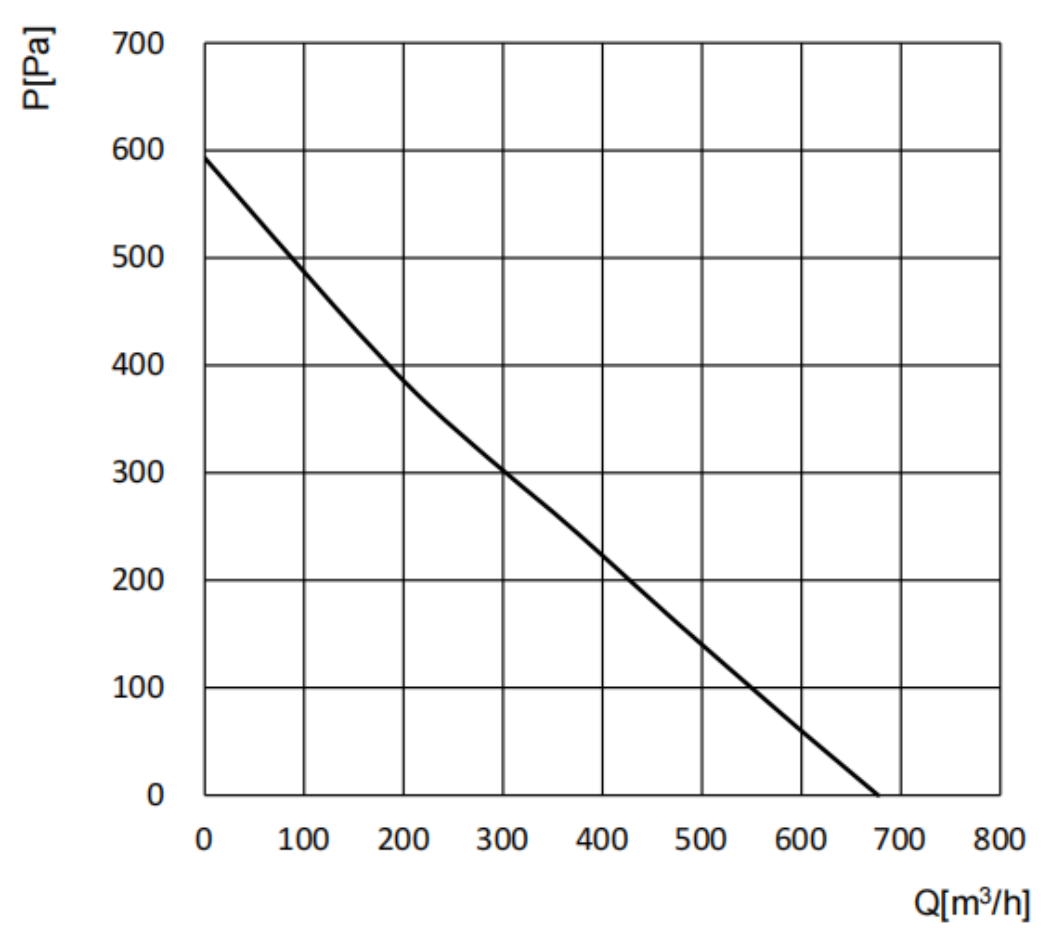

Performance Curve
Testing Condition:
Input Voltage----Operating voltage (230VAC/50Hz)
Temperature-----Room temperature
Humidity---------65%RH

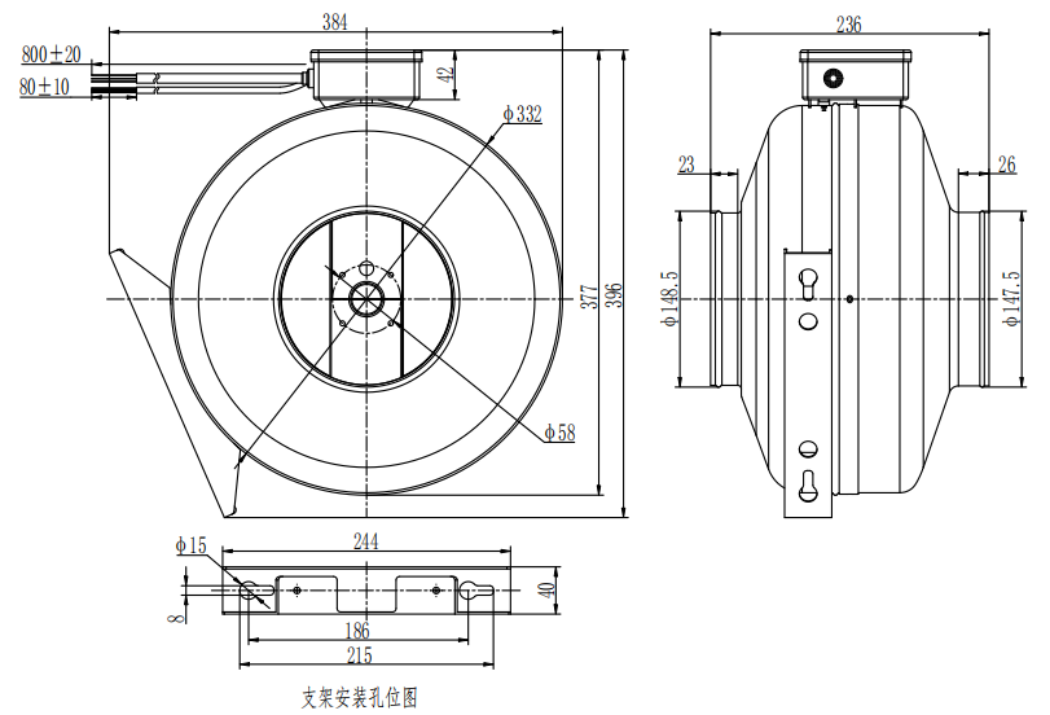

Outline Drawing
Note:
1.Connection line: AC(3×AWG20#)，DC(4×AWG22#)
2.AC: Brown=Live Line，Blue=Null Line，Green & Yellow=Protecting Earthing;
3.DC: Red=Voltage Output +10VDC, Yellow=0-10VDC/PWM, White=FG, Blue=GND;
