PBM FOCUS ON EC FAN ONLY. Certificate: CE,UL,ROHS; Supply Ability: 100,000 pcs per year; MOQ: 1~100 pcs based on EXW price; 100 pcs above based on FOB price.
250mm EC Centrifugal Fan with Support Bracket, the PK3N250B2E-TZ0 is made especially for Laboratory and Analytical Equipment, such as chromatographs, spectrometers, mass spectrometers, PCR analyzers, gene sequencers, biosafety cabinets, fume hoods, centralized laboratory ventilation systems, and various high-precision analytical instruments and laboratory environment ventilation facilities. Through 915 Pa ultra-high static pressure forced airflow circulation, this active cooling core unit quickly dissipates heat from the enclosure, guaranteeing long-term reliability of baseline stability and detection sensitivity. It is appropriate for constant pressure exhaust control in biosafety cabinets and fume hoods.
PMB specializes in the development and production of superior EC/DC fans and intelligent airflow solutions that support fume hoods, biosafety cabinets, analytical equipment, and centralized laboratory ventilation systems. For additional information, please contact us. Customized services are offered.
General Characters
|
1-1 |
Rated Voltage |
230 VAC |
|
1-2 |
Frequency |
50/60 Hz |
|
1-3 |
Operating Voltage |
184~270 VAC |
|
1-4 |
Rated Speed | 2750 RPM |
|
1-5 |
Input Current |
1.2 A |
|
1-6 |
Input Power |
170 W |
|
1-7 |
Air Flow |
882.75 CFM / 1500 M³/H |
|
1-8 |
Static Pressure |
3.66 inH₂O / 915 Pa |
|
1-9 |
Acoustical Noise |
71 dB(A) |
|
1-10 |
Life Expectancy |
50,000 Hours (L10) At 40℃ room, humidity 15%~65%RH. |
|
1-11 |
Insulation Class |
Class B |
|
1-13 |
Motor Protection |
Locked rotor protection Polarity protection Automatic restart capability |
|
1-14 |
Speed Control |
Control input 0~10VDC / PWM |
|
1-15 |
Protection Type |
IP55 |
|
1-17 |
Signal Output |
FG (Frequency Generator) |
Mechanical Characters
|
2-1 |
Dimension |
300 mm X 300mm X 122.3mm (see dimension drawing) |
|
2-2 |
Material of Impeller |
PA66+GF |
|
2-3 |
Number of Blades |
7 |
|
2-4 |
Bearing System |
NMB ball bearing |
|
2-5 |
Lead Wire |
AC (AWG20#), DC (AWG24#) |
Environmental Characters
|
3-1 |
Operating Temperature |
-25℃ to 60℃ |
|
3-2 |
Storage Temperature |
-40℃ to 75℃ |
|
3-3 |
Operating Humidity |
5% to 90% RH |
|
3-4 |
Storage Humidity |
5% to 95% RH |
Performance Curve
Testing Condition:
Input Voltage----Operating voltage (230VAC/50Hz)
Temperature-----Room temperature
Humidity---------65%RH

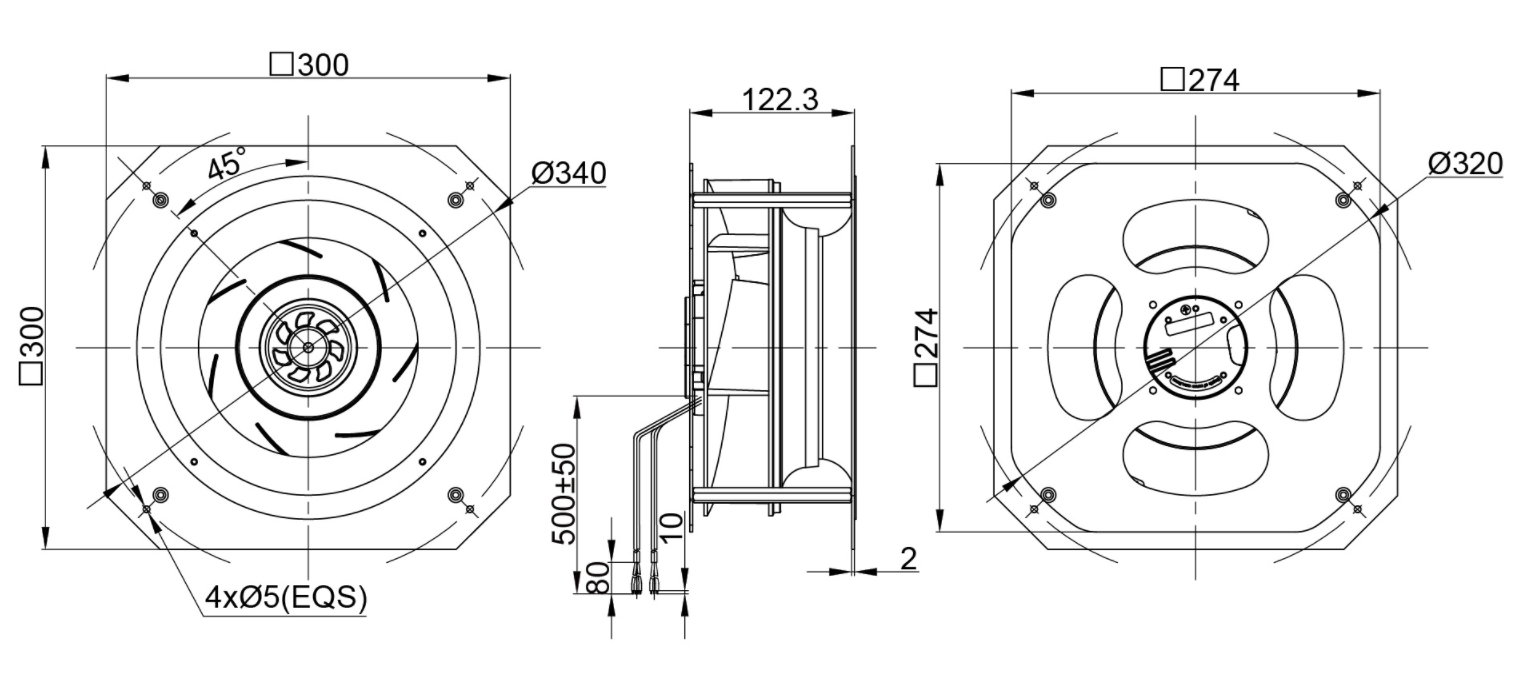

Outline Drawing
Note:
1.Connection line: AC(3×AWG20#)，DC(4×AWG24#)
2.AC: Brown=Live Line，Blue=Null Line，Green & Yellow=Protecting Earthing;
3.DC: Red=Voltage Output +10VDC, Yellow=0-10VDC/PWM, White=FG, Blue=GND;
