The 250mm EC fan PK3N250B2E-MZ0 was created especially for fresh air handling units (MAUs), fan filter units (FFUs), and clean air handling units (AHUs). It offers substantial energy savings of 30% to 50% over conventional AC fans under all operating situations because to its high-efficiency EC motor. During operation, the EC motor produces extremely little heat and releases very little waste heat into the surrounding air. It does not provide extra thermal burden to the AHU interior in cleanroom air conditioning systems with constant temperature and humidity, therefore supply air temperature is precisely controlled.
In addition to supporting modular air handling units, fan filter units, and cleanroom air conditioning systems, PBM specializes in the research and development and production of premium EC/DC fans and intelligent airflow solutions. PBM provides customisation services to meet the various demands of manufacturers of air handling equipment.
General Characters
|
1-1 |
Rated Voltage |
230 VAC |
|
1-2 |
Frequency |
50/60 Hz |
|
1-3 |
Operating Voltage |
184~270 VAC |
|
1-4 |
Rated Speed | 3100 RPM |
|
1-5 |
Input Current |
1.6 A |
|
1-6 |
Input Power |
220 W |
|
1-7 |
Air Flow |
941.60 CFM / 1600 M³/H |
|
1-8 |
Static Pressure |
3.00 inH₂O / 750 Pa |
|
1-9 |
Acoustical Noise |
72 dB(A) |
|
1-10 |
Life Expectancy |
50,000 Hours (L10) At 40℃ room, humidity 15%~65%RH. |
|
1-11 |
Insulation Class |
Class B |
|
1-13 |
Motor Protection |
Locked rotor protection Polarity protection Automatic restart capability |
|
1-14 |
Speed Control |
Control input 0~10VDC / PWM |
|
1-15 |
Protection Type |
IP55 |
|
1-17 |
Signal Output |
FG (Frequency Generator) |
Mechanical Characters
|
2-1 |
Dimension |
300mm X 300mm X 133.3mm (see dimension drawing) |
|
2-2 |
Material of Impeller |
PA66+GF |
|
2-3 |
Number of Blades |
7 |
|
2-4 |
Bearing System |
NMB ball bearing |
|
2-5 |
Lead Wire |
AC (AWG20#), DC (AWG24#) |
Environmental Characters
|
3-1 |
Operating Temperature |
-25℃ to 60℃ |
|
3-2 |
Storage Temperature |
-40℃ to 75℃ |
|
3-3 |
Operating Humidity |
5% to 90% RH |
|
3-4 |
Storage Humidity |
5% to 95% RH |
Performance Curve
Testing Condition:
Input Voltage----Operating voltage (230VAC/50Hz)
Temperature-----Room temperature
Humidity---------65%RH

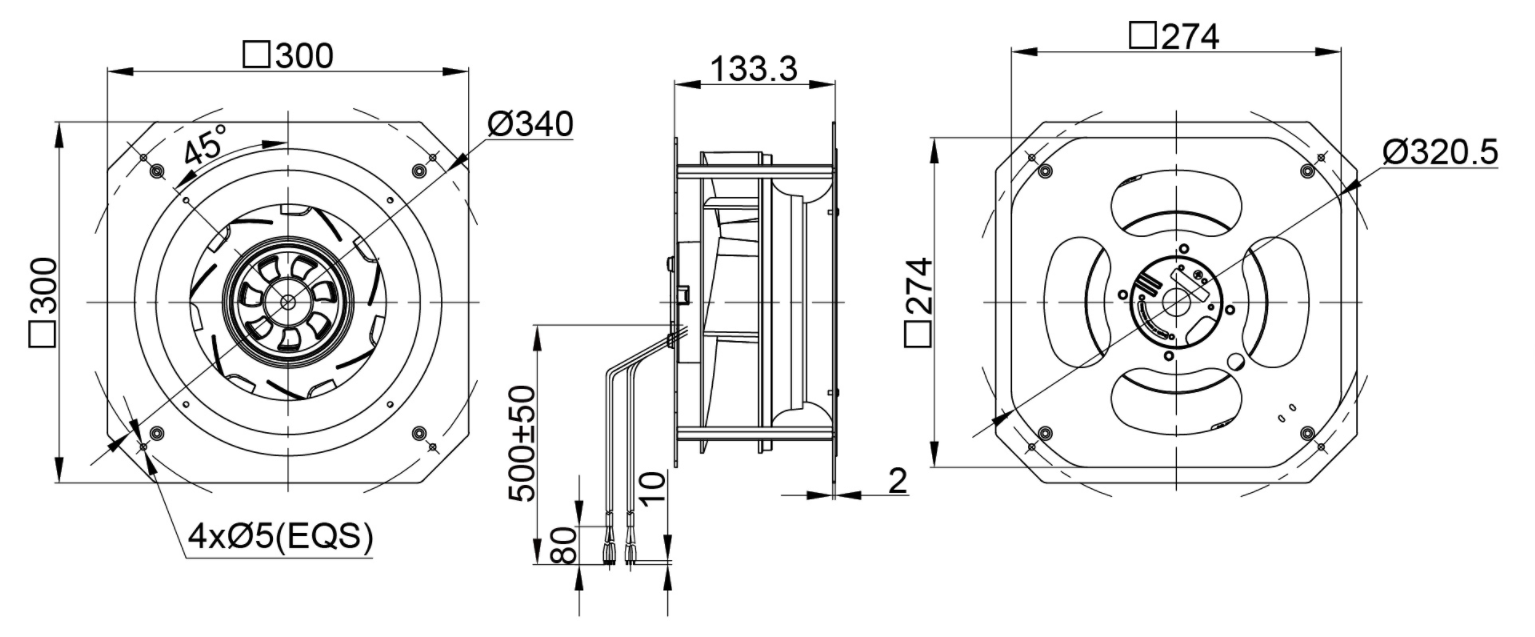

Outline Drawing
Note:
1.Connection line: AC(3×AWG20#)，DC(4×AWG24#)
2.AC: Brown=Live Line，Blue=Null Line，Green & Yellow=Protecting Earthing;
3.DC: Red=Voltage Output +10VDC, Yellow=0-10VDC/PWM, White=FG, Blue=GND;
