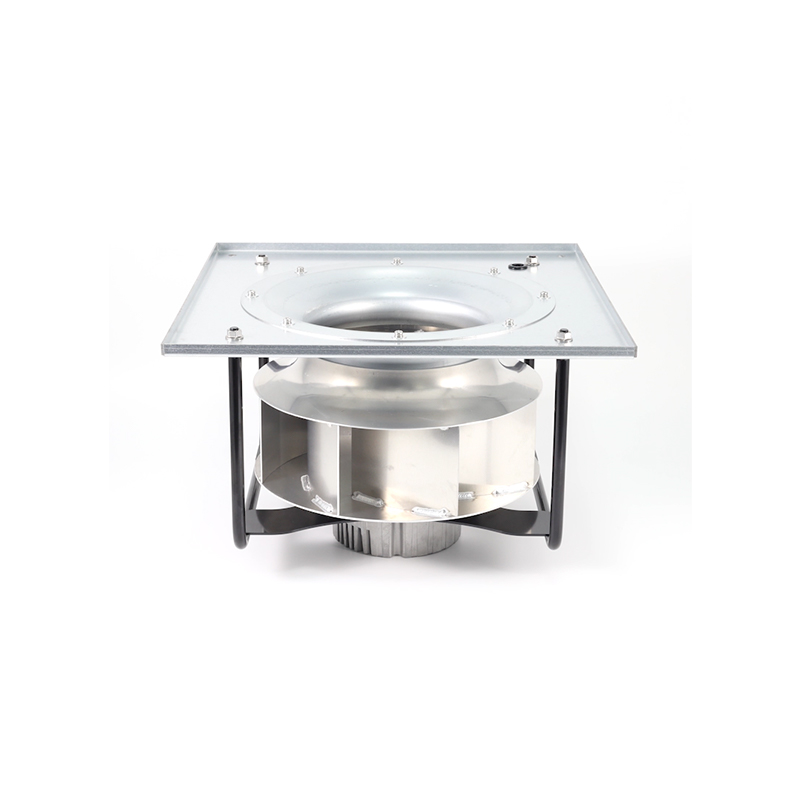

The PK3N250B4E-YZ5 is a 250mm EC Backward Curved Centrifugal Fan with Support Bracket designed specifically for industrial air handling systems. Dust, wood chips, and particle matter are continuously produced by production lines in industries such as wood processing, furniture manufacturing, chemicals, metallurgy, and food processing. These items must be collected and transported to a central dust collector via a system of central dust collection ducts. The high-efficiency EC motor in this fan uses between 30% and 50% less energy than traditional AC motors under all operating conditions. The EC motor generates less heat during operation in applications such as high-temperature exhaust systems, which stops extra heat from being released into the airflow and further heating the airstream.
Industrial ventilation, heating, refrigeration, battery environmental management, new energy production lines, high-end automation equipment, medical devices, and power electronics are just a few of the high-precision industrial sectors that PBM supports. Superior EC/DC fans and sophisticated airflow solutions are the company's areas of expertise. We support dust collection and air treatment systems. PBM offers a variety of tailored services to meet the different needs of industrial equipment manufacturers.
General Characters
|
1-1 |
Rated Voltage |
380 VAC |
|
1-2 |
Frequency |
50/60 Hz |
|
1-3 |
Operating Voltage |
304–456 VAC |
|
1-4 |
Rated Speed | 4100 RPM |
|
1-5 |
Input Current |
1.17 A |
|
1-6 |
Input Power |
750 W |
|
1-7 |
Air Flow |
1765.50 CFM / 3000 M³/H |
|
1-8 |
Static Pressure |
5.60 inH₂O / 1400 Pa |
|
1-9 |
Acoustical Noise |
91 dB(A) |
|
1-10 |
Life Expectancy |
50,000 Hours (L10) At 40℃ room, humidity 15%~65%RH. |
|
1-11 |
Insulation Class |
Class F |
|
1-13 |
Motor Protection |
Locked rotor protection Polarity protection Automatic restart capability |
|
1-14 |
Speed Control |
Control input 0~10VDC / PWM |
|
1-15 |
Protection Type |
IP55 |
|
1-17 |
Signal Output |
FG (Frequency Generator) |
Mechanical Characters
|
2-1 |
Dimension |
400 mm X 400mm X 254.5mm (see dimension drawing) |
|
2-2 |
Material of Impeller |
Aluminium sheet |
|
2-3 |
Number of Blades |
8 |
|
2-4 |
Bearing System |
NMB ball bearing |
|
2-5 |
Lead Wire |
AC (AWG18#), DC (AWG24#) |
Environmental Characters
|
3-1 |
Operating Temperature |
-25℃ to 60℃ |
|
3-2 |
Storage Temperature |
-40℃ to 75℃ |
|
3-3 |
Operating Humidity |
5% to 90% RH |
|
3-4 |
Storage Humidity |
5% to 95% RH |
Performance Curve
Testing Condition:
Input Voltage----Operating voltage (380VAC/50Hz)
Temperature-----Room temperature
Humidity---------65%RH
Outline Drawing
Note:
1.Connection line: AC(6×AWG18#)，DC(6×AWG24#)
2.AC: Brown=L1(R)，Blue=L2(S)，Black=L3(T)，Green & Yellow=Protecting Earthing,White=NC，Gray=COM;
3.DC: Red=Voltage Output +10VDC, Yellow=0-10VDC/PWM, Blue=GND, White=Tach output, Brown=RSA,Gray=RSB ;
